1.Detailed Descriptions
10
If the paper is still held by the paper exit rollers, this will stop the paper from shifting, so the paper exit
rollers ([A] and [B]) are moved from their home (strong pressure) positions to their pressure release
positions.
Shift mechanism
Shift roller operation timing
Paper is shifted when the distance between the trailing edge and the paper exit roller on the main
machine is 10mm (the entrance sensor detects the leading edge of the paper).

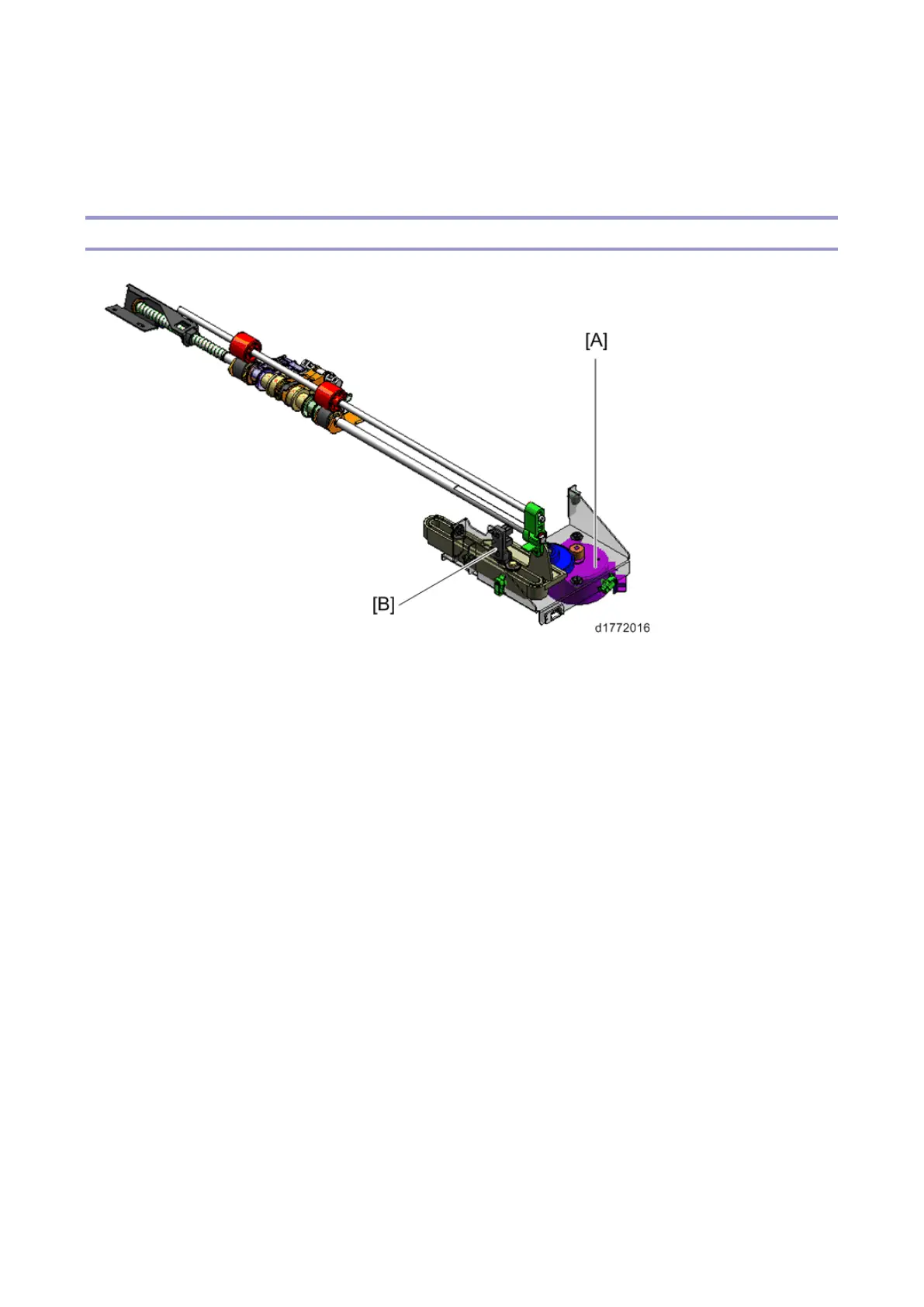

The shift motor [A] rotates clockwise/anti-clockwise to shift the paper towards the front/rear of the
machine.
The shift amount is 20mm when shifting towards the front, and 10mm when shifting towards the back.
The home position is located at the back end of the shift area, and is detected by the shift HP sensor
[B].
