Paper detection on the stack guide plate
The paper exit sensor detects paper when there is paper on the stack guide plate.
Sheet edge face alignment mechanism (main-scan direction)
This option does not have a jogger. Paper position adjustment for stapling (main-scan direction) is
performed by paper shift and alignment of the paper edges using the sub-scan registration sensor.

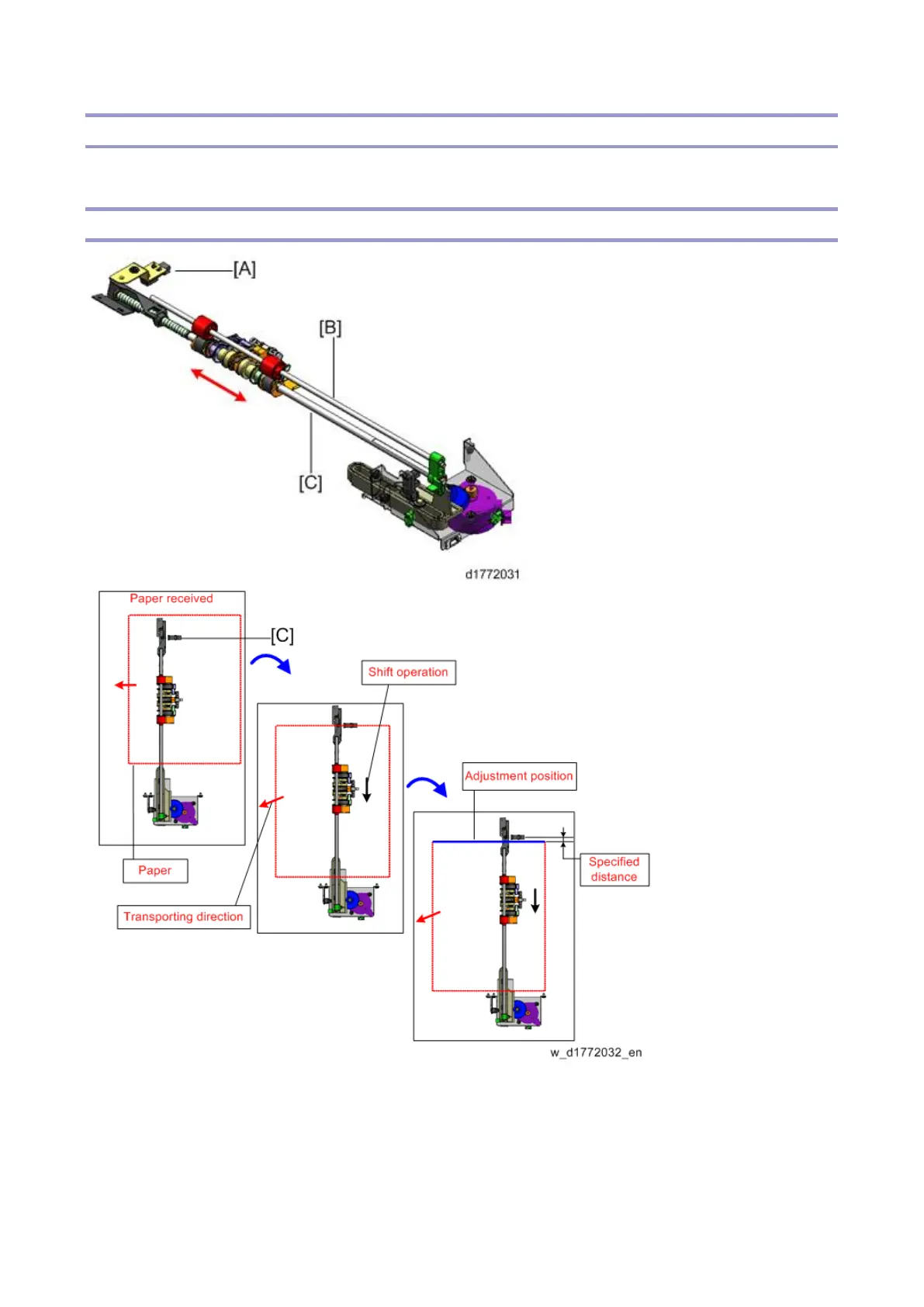

Paper transported to the shift rollers ([B] and [C]) is shifted when the trailing edge is 10mm from the
paper exit roller. (Paper position is based on the entrance sensor, and is controlled by motor pulses.)
The paper shifts to a position where it can be detected by the sub-scan (leading edge) registration
