Ricoh SR3300 - Parts Layout

1.Detailed Descriptions
5

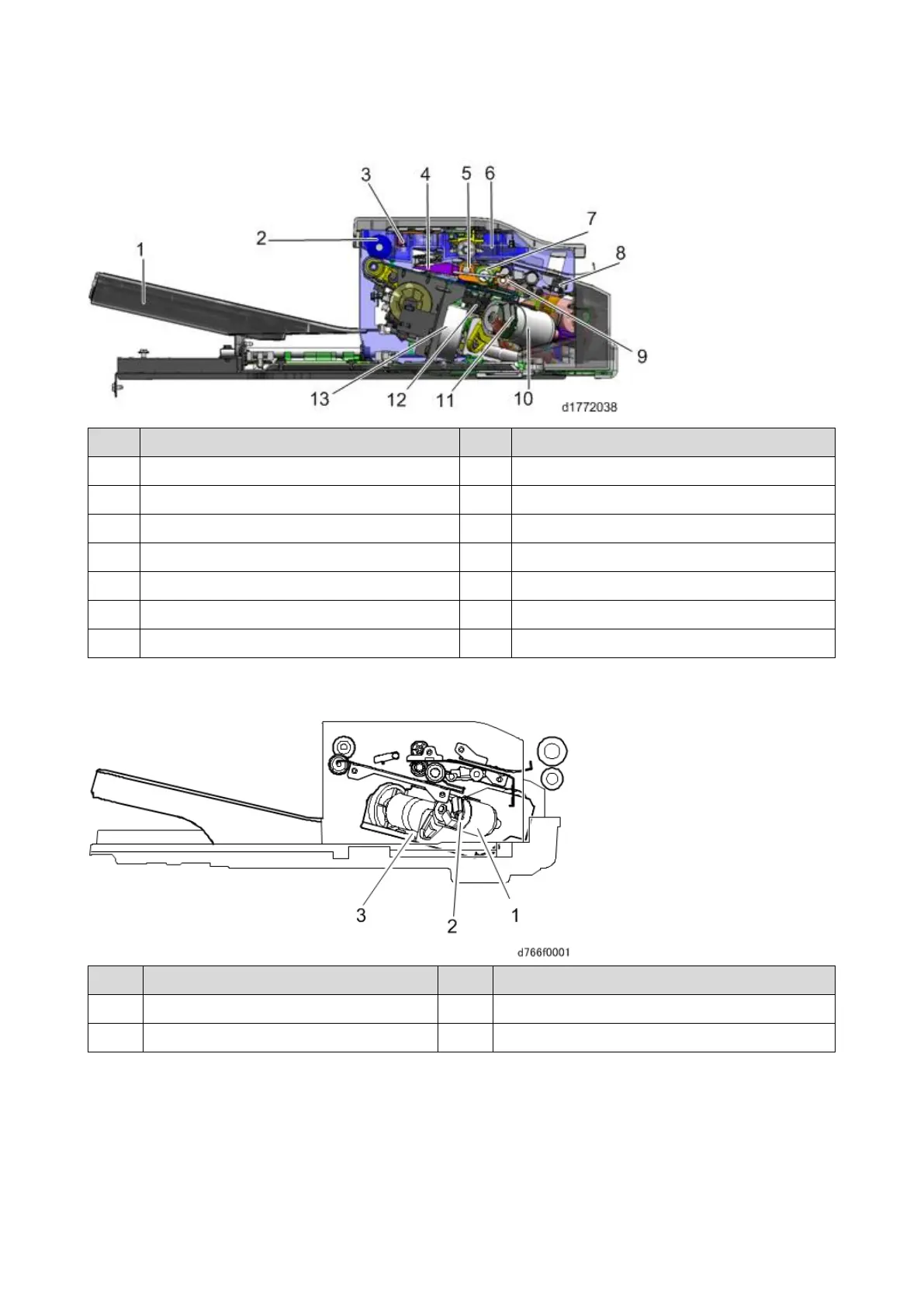

Parts Layout
No.
Description
No.
Description
1
Paper exit tray
8
Entrance sensor (S6)
2
Paper exit roller/paper exit belt
9
Trailing edge presser
3
Paper exit sensor (S3)
10
Stapler drive motor (DCM1)
4
Junction gate
11
Stapler
5
Shift roller
12
Stapler drive HP sensor (S9)
6
Sub-scan registration sensor (S2)
13
Paper exit pressure motor (STM4)
7
Reverse roller
-
-
No.
Description
No.
Description
1
Stapler drive motor (DCM1)
3
Paper exit pressure motor (STM4)
2
Stapler drive HP Sensor (S9)
-
-
