Ricoh SR3300 - Stapler Drive HP Sensor (S9)

2.Replacement and Adjustment
33

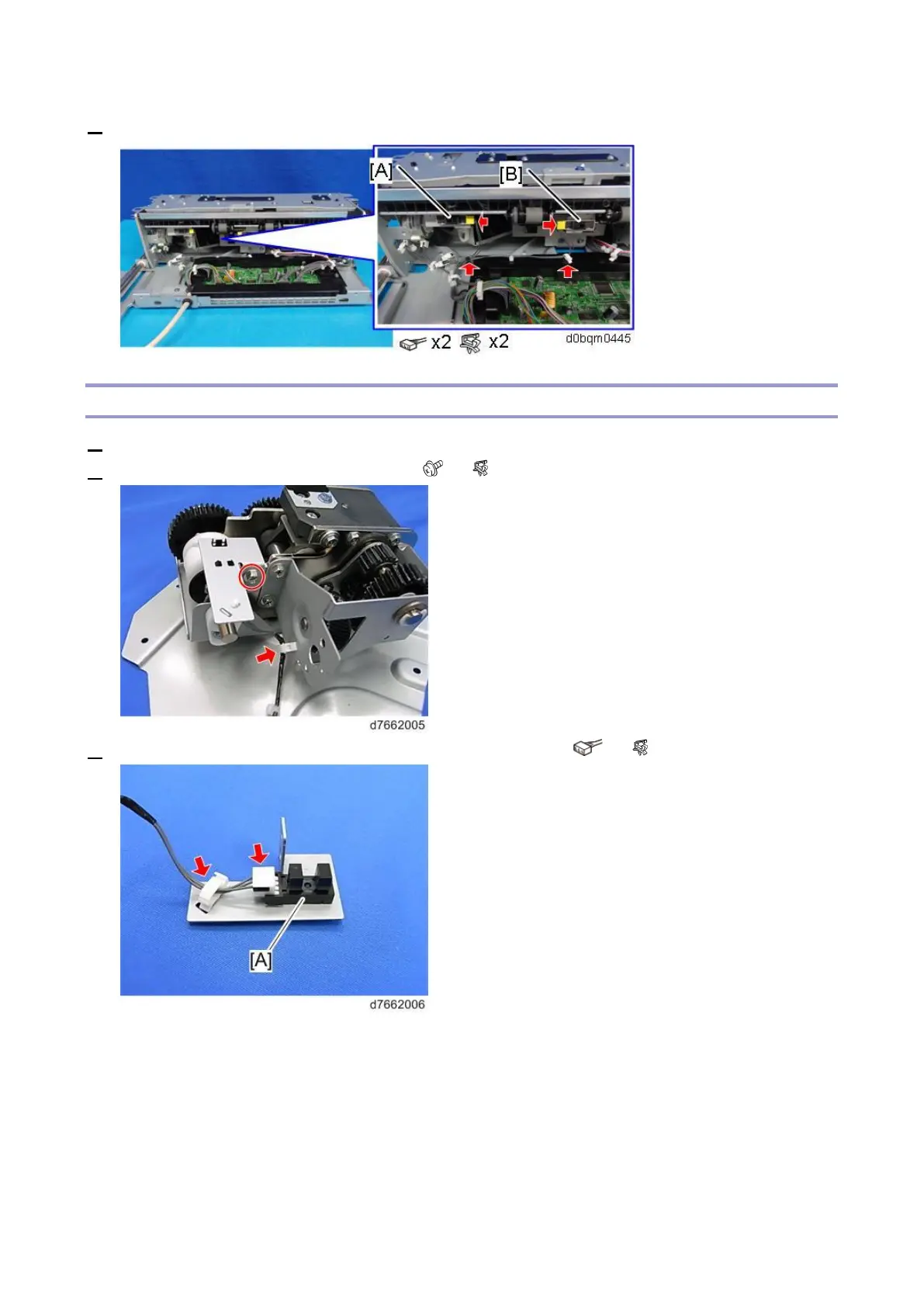

2. Remove the paper exit full sensor 1 (S4) [A], paper exit full sensor 2 (S5) [B].
Stapler Drive HP Sensor (S9)
1. Remove the stapler unit (Stapler Unit).
2. Loosen the screw and release the clamp ( ×1, ×1).
3. Remove the stapler drive HP sensor (S9) [A] from the bracket ( ×1, ×1).
