1.Detailed Descriptions
12

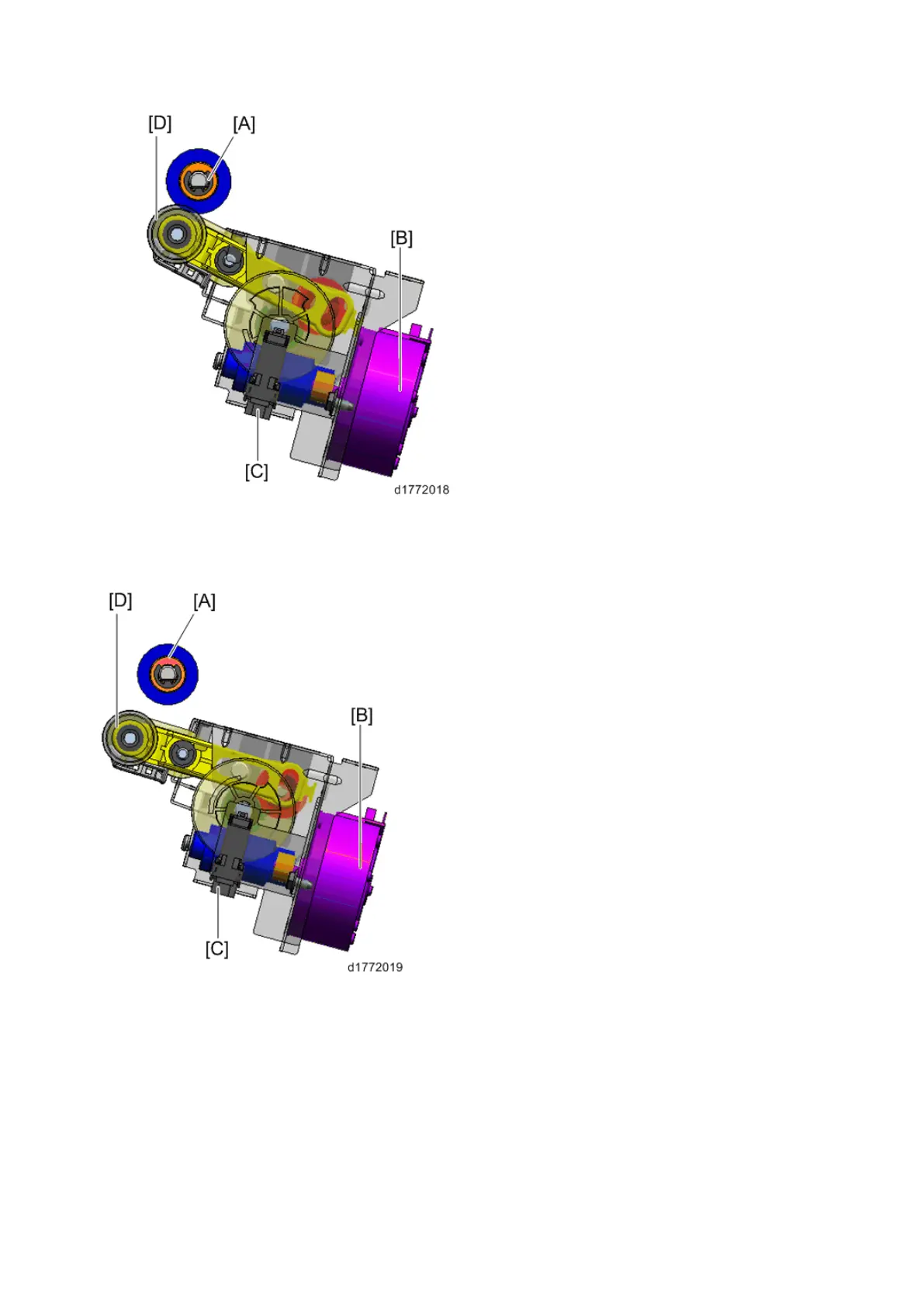

• Pressure release position
The nip of the paper exit roller/paper exit belt is released so that they do not interfere with paper
shift.
• Weak pressure position
This is used during stapling, when there is already paper stacked in the paper exit tray, and more
paper is being transported.
The paper exit pressure motor [B] lowers the pressure, and the position of the paper exit belt
(driven) is moved so that the middle part of the belt comes in contact with the paper exit roller
(drive).
The weak pressure position is for preventing smudges or stains caused by paper rubbing against
the paper that is already stacked.
