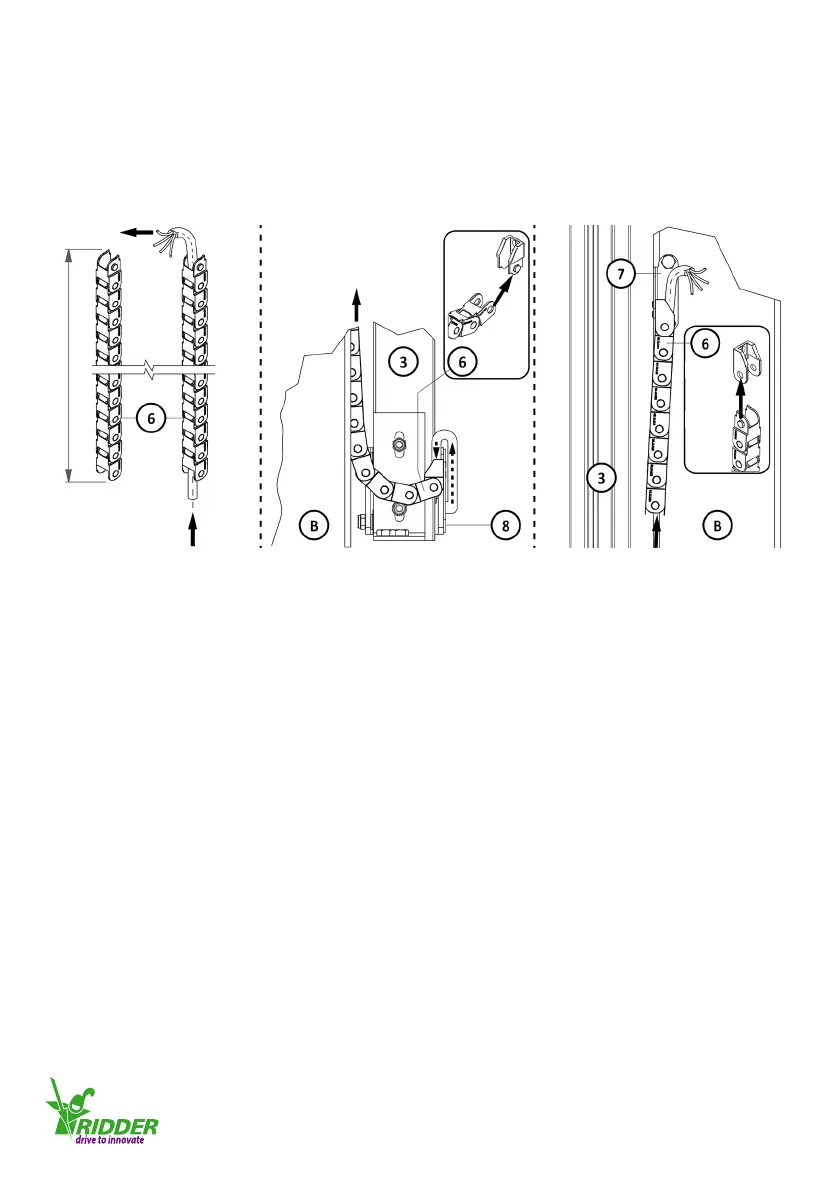

5. Adapt the cable carrier (6) to the correct length. The minimum is length l1 multiplied by 0.5 to
0.6, plus 200 mm.
6. Put the power cable through the cable carrier (6). Start at the FCP end (female connecon) of
the cable carrier (6). Aach this end (6) to the end connector (MCP) at the cable-carrier bracket
(8).
7. Aach the other end of the cable carrier (6) to the end connector (FCP) at the cable-carrier
mounng-bracket (7).
(0.5-0.6 x l1) + 200
4.5.3
MCP
FCP
FCP
MCP
FCP
MCP
