Ridder RB50EPLUS - Attach the screen cloth and winding tube

4.7 Aach the screen cloth and winding tube
The condions and starng points that follow are applicable.

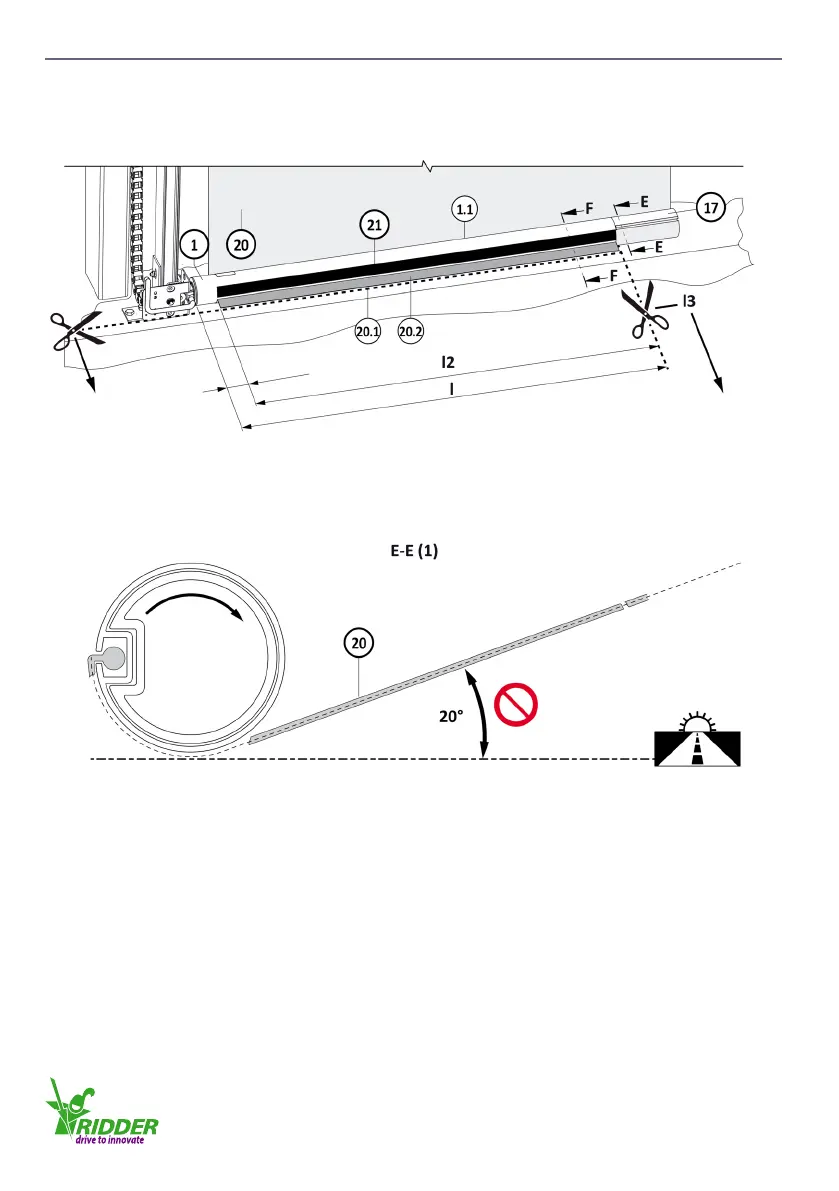

• The overview in illustraon 4.7.1 is the starng point in §4.7.
• In this product manual the starng point is a side-wall roller-screen. The roller screen is installed
on a side wall between the purlins. In a roof roller-screen system an angle of inclinaon of less
than 20° from the horizontal baseline is not recommended. Refer to illustraon 4.7.2.
• The RB50Eᵖˡᵘˢ tube motor is built-in to a smooth circular aluminium tube (50 x 1.5 mm).
Compared to the winding tube (17), this tube does not have a groove for the screen cloth (20).
• First aach the screen cloth (20) to the building structure. Make sure that it does not fold!
4.7.1
Refer to F-F(1) Refer to E-E (2)
40 mm
4.7.2
