Ridder RB50EPLUS - Wiring diagram: Single

5.3 Wiring diagram: Single

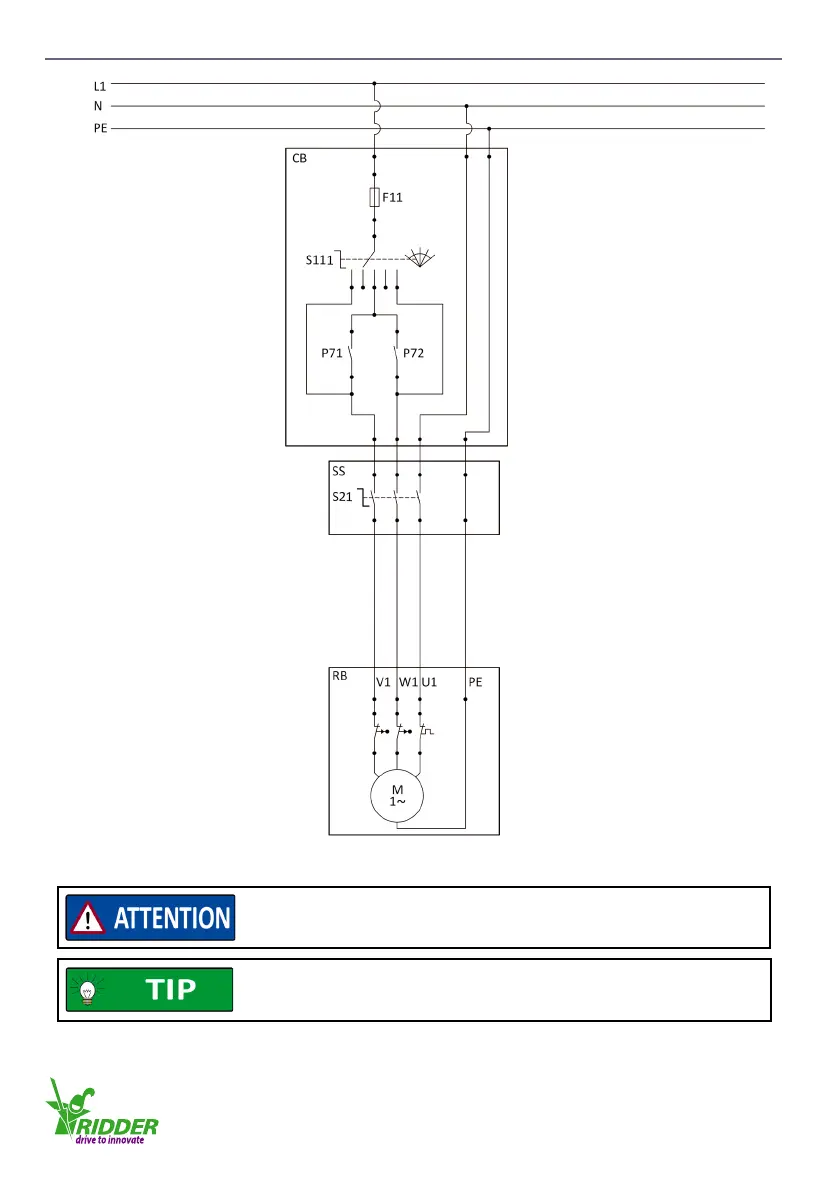

The wiring diagram for a RB50Eᵖˡᵘˢ tube motor (single).
Black Brown Blue Green/Yellow
Make sure that the load is less than the maximum switch-contact
load for the switch installaon (relay controls, switches and such).
To change the direcon-of-rotaon of RB50Eᵖˡᵘˢ tube motor:
Interchange the two phase wires (black and brown).
