5.4 Wiring diagram: Parallel

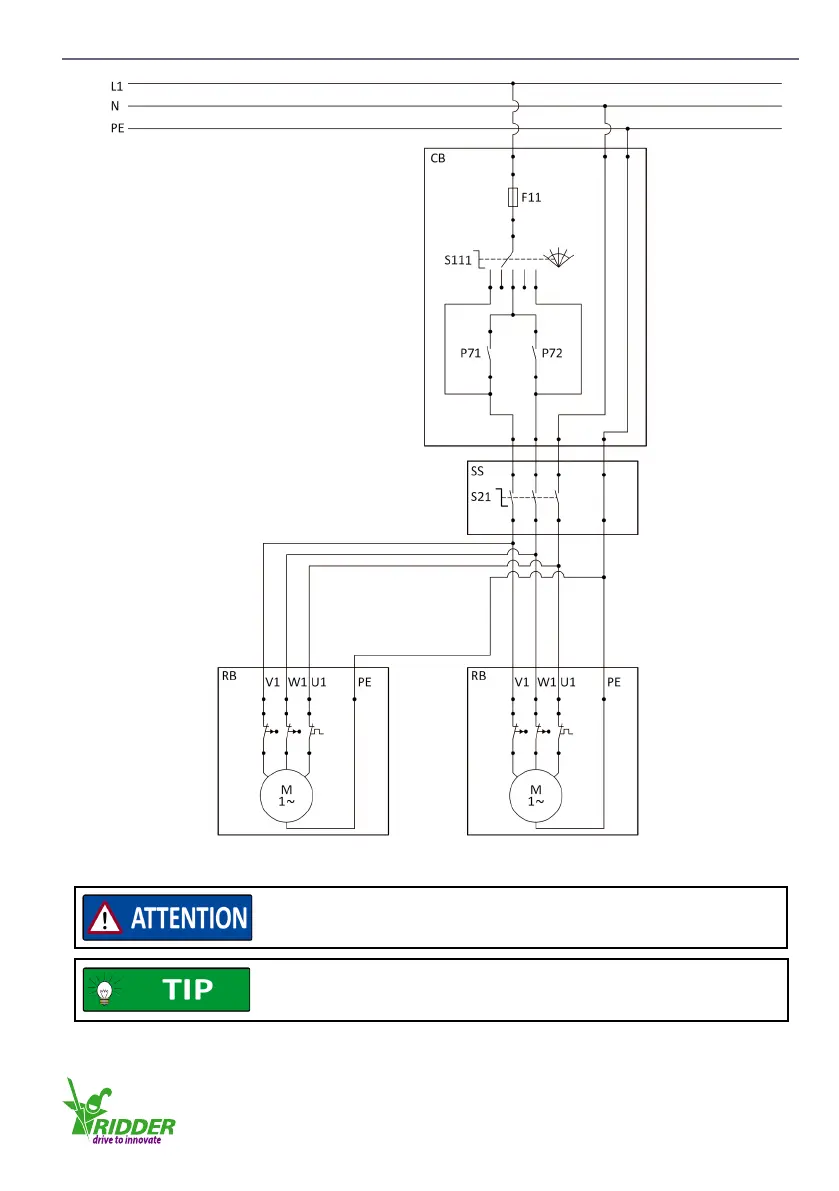

The wiring diagram for two or more, parallel connected, RB50Eᵖˡᵘˢ tube motors.
Black Brown Blue Green/Yellow Black Brown Blue
Green/Yellow
Make sure that the load is less than the maximum switch-contact
load for the switch installaon (relay controls, switches and such).
To change the direcon-of-rotaon of RB50Eᵖˡᵘˢ tube motor:
Interchange the two phase wires (black and brown).
