Ridder RB50EPLUS - Technical specifications

3.3 Dimensions

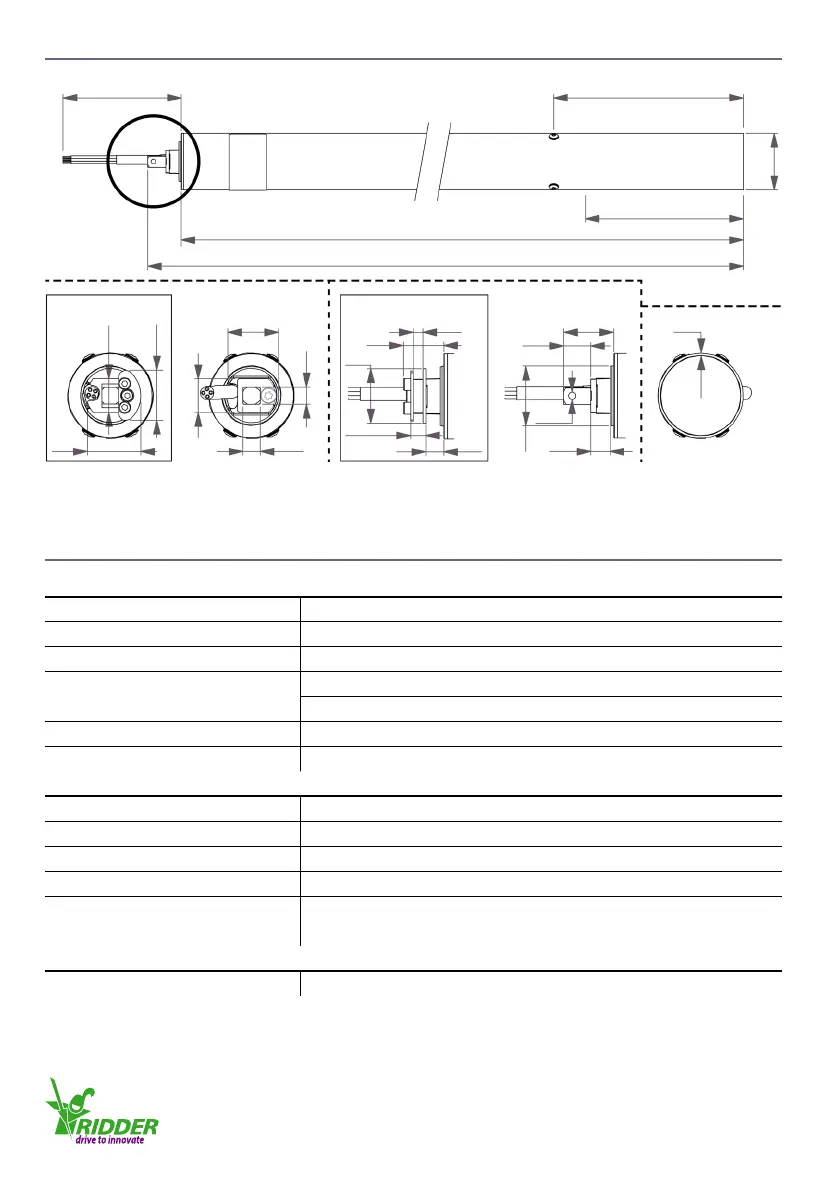

Note: The dimensions and illustraons are approximate. In this product manual shown illustraons
can be dierent than the components and/or systems.
3.4 Technical specicaons
Mechanical
Torque 50 Nm (50 Hz)
Speed (revoluons per minute) 3.5 rpm (50 Hz)
Limit-switch range 38 revoluons (drive sha)
Dimensions (WxHxD)
550032, 550037: 802 x 50 x 50 mm (approximately)
550039: 876 x 50 x 50 mm (approximately)
Tube 50 x 1.5 mm
Weight 4.2 kg
Electrical
Supply voltage 230 V AC, 1-phase (50 Hz)
Maximum current
0.56 A (50 Hz)
Power
126 W
Thermal protecon < 120 °C (248 °F)
Duty Cycle (kb)
Applicable for intermient duty, duty class S2, a maximum of 10
minutes
Environment
Protecon rang IP55
802/876*
Ø4
16
772 (l)/846 (l)*
139/213*
167/241*
1.5
Ø50
12
3030
20
10
10
35
A
A(2)
20 30
32
24
11
6
32
9
A(1)
550037 (P20)550037 (P20)
*= 550039
5000
