to input the No. of the desired point, the available No. is limited by the current FH
points (the point number of FH sequence) and the default is 1. The “Chess” or “Table”
data on the screen will be updated and displayed once this parameter is changed.
Display Type
As mentioned before, FH map reflects the hopping law of the carrier frequency. For
the convenience of observation, you could set the display type of FH map.
When FH is enabled, press DispType to select “Chess” or “Table”. The default is
“Chess”.

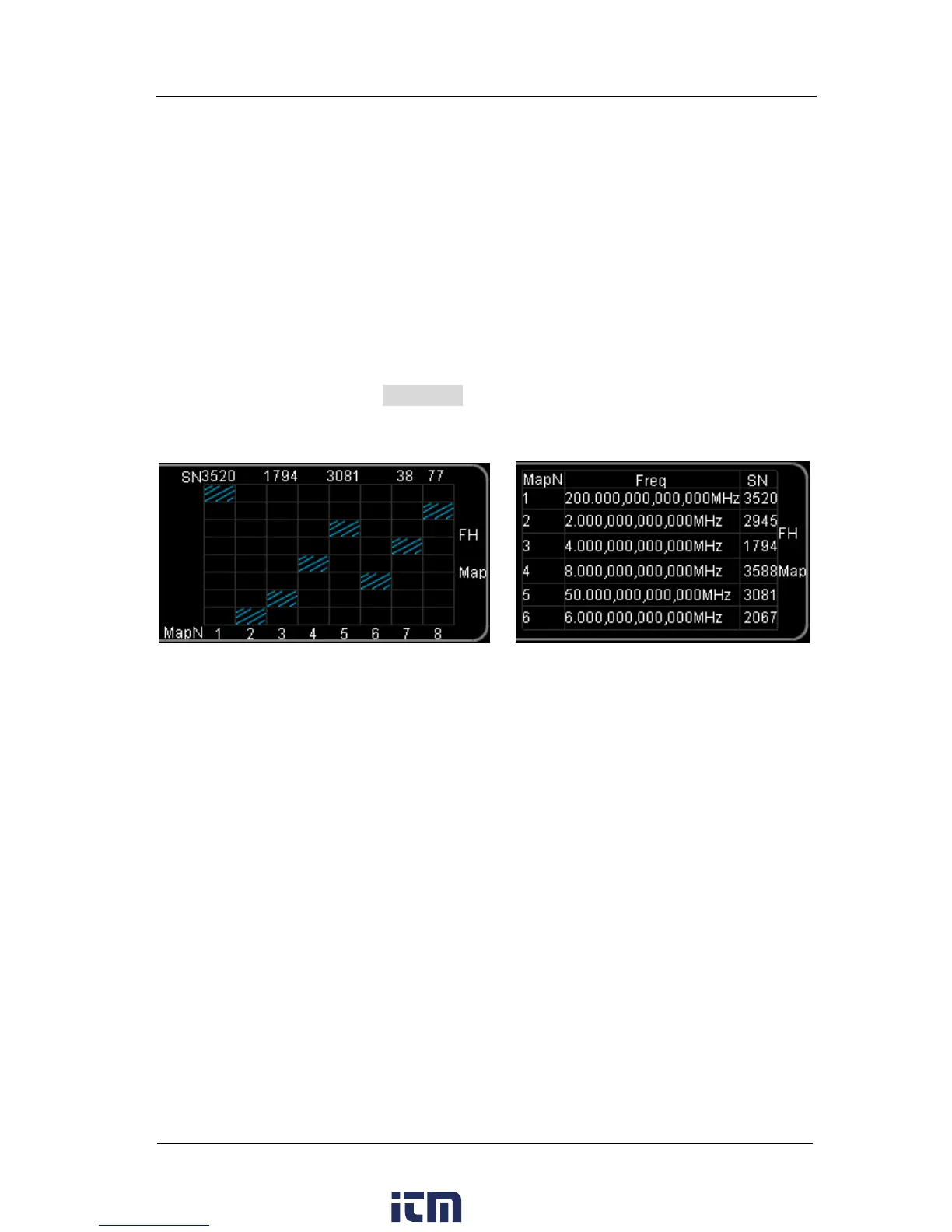

FH Map (Chess) FH Map (Table)
Figure 8-2 FH Map
The “Chess” provides a direct observation of the frequency hopping process while the
“Table” visibly provides all the frequencies during the hopping process.
