To Edit Map
DG5000 permits users to define FH map and store the map in local or external
memory. When FH is enabled, press Switch to select “Off”, and then press Edit Map.
Users could edit the hopping frequency points of the carrier through “FH list” and
control the hopping order of the carrier by editing “FH sequence”.
FH List
Press List to load the stored FH list from the internal or external memory of the
instrument, to edit the FH list in the current volatile memory or to create a new FH list.

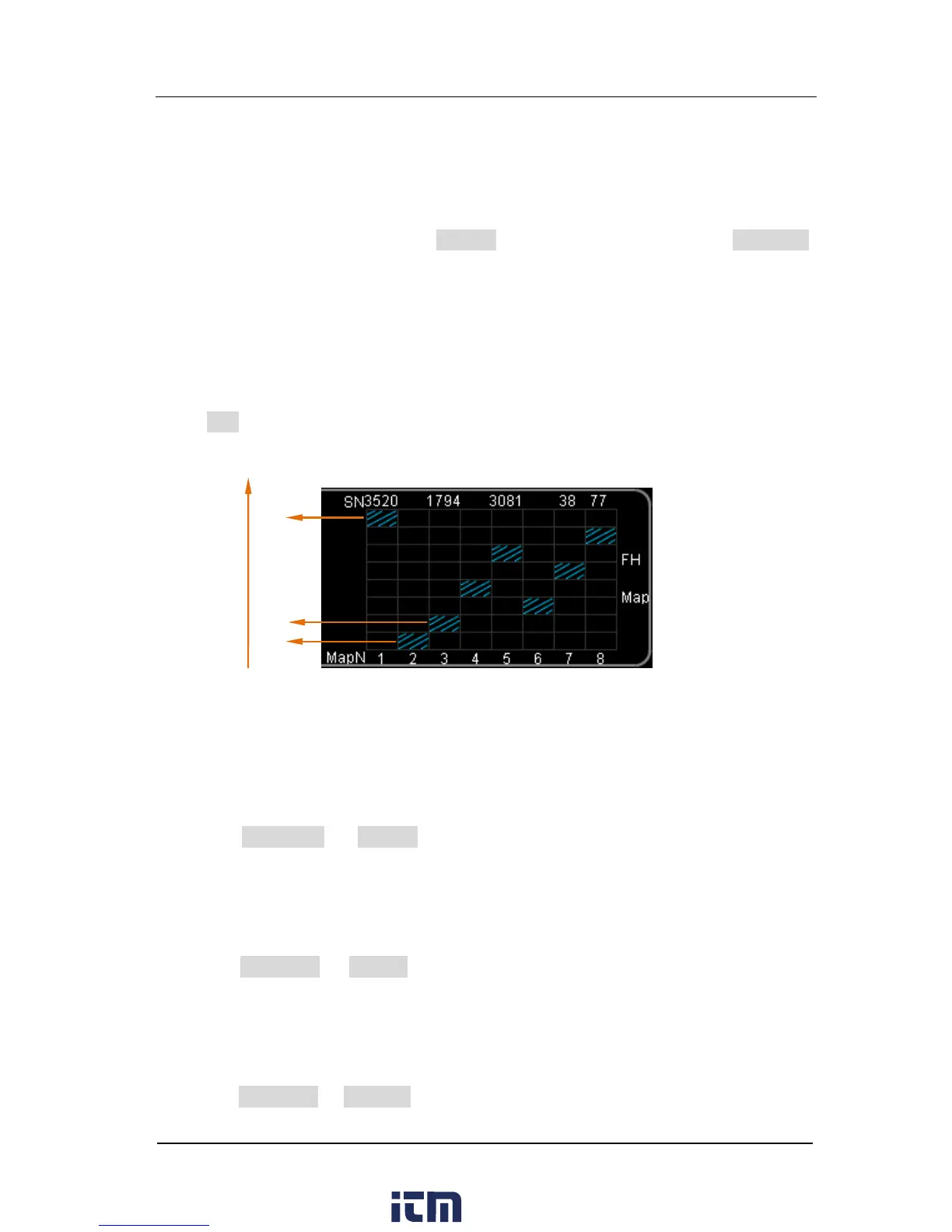

Figure 8-3 FH List in FH Map
To Load FH List
1. Built-In List
Press Load List BuiltIn to select the FH list which contains n increasing
frequency points. You could select the FH list which contains 2 (2-Point), 4
(4-Point), 8 (8-Point) or 16 (16-Point) points.
2. Stored Table
Press Load List Stored to open the Store/Recall interface. Select and recall
the stored FH list from the internal or external memory of the instrument. For
details, please refer to the introduction in “
Store and Recall”.
3. Volatile Table
Press Load List Volatile to select the table from the current volatile memory.
High
Low
f
n
f
8
f
2
f
1
