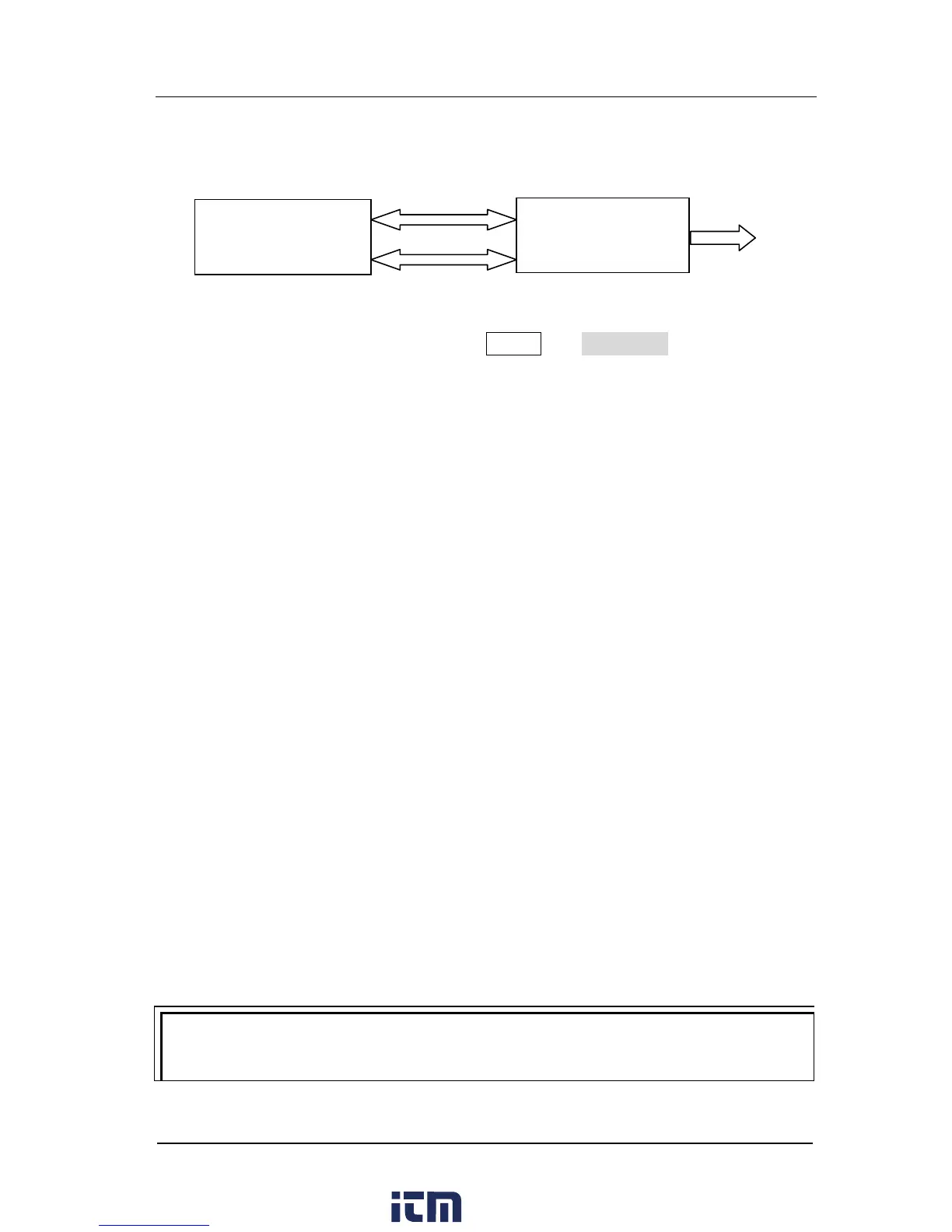

Connect DG5000 with PA1011:
When the connection succeeds, press Utility PA Setup to open the PA
parameters setting interface.
1. ON/OFF
Press this key to turn “On” or “Off” the external power amplifier. If “On” is
selected, the PA amplifiers and then output the input signal; if “Off” is selected,
the PA has no output.
2. Gain
Press this key to select “X1” or “X10” as the amplifier gain of the signal output
from the PA. “X1” means output without gain and “X10” means to amplify the
signal 10 times and then output. Pay attention to distinguish it with
“Attenuation Setting” of DG5000.
3. Output
Press this key to select “Normal” or “Invert” output mode for the signal output
from the PA. Pay attention to distinguish it with “Output Polarity” of DG5000.
4. Deviation
Press this key to turn “On” or “Off” the output deviation output from the PA.
When “On” is selected, use the numeric keyboard or knob to set deviation value.
The available range is from -12 V to 12V and the default value is 0 V.
5. Storage
Press this key to store the current working state of the PA in its internal memory.
When the PA is turned on the next time, it will automatically recall the stored
working state.
Tip
For specifications of PA1011, refer to “Appendix B”.
PA1011
DG5000
USB Host USB Cable USB Device
