Rigol MSO5074 User Manual

Chapter 11 Protocol Decoding RIGOL
MSO5000 User Guide 11-21
⚫ Adjust the vertical position of the bus
Press Position, and then rotate the multifunction knob to adjust the
vertical display position of the bus.
⚫ Set the label display
Press Label to enable or disable the label display of the SPI decoding bus.
When enabled, the bus label "SPI-MISO" and/or "SPI-MOSI" will be
displayed at the upper-left side of the bus (when the bus display is
enabled).
⚫ Event table
Press Event Table to enter the event table setting menu. The event table
displays the detailed decoding information in time order in the form of a
table, so as to better observe the long decoded data. The decoding
information includes the decoded data (MISO and/or MOSI), the
corresponding line number, time, and error information (MISO and/or
MOSI).
Note: When the source channel of MISO or MOSI is set to "OFF",
information of the data line is not displayed in the data table.
➢ Open or close the event table: Press Event Table continuously to
enable or disable the event table. When you enable the event table,
the following figure is displayed, as shown in Figure 11-8. You can also
enable the touch screen to tap the icon at the upper-right corner of
the table to close the event table. Besides, when the operating status is
"STOP", you can also rotate the multifunction knob to select a
specified line and view the corresponding decoding information.

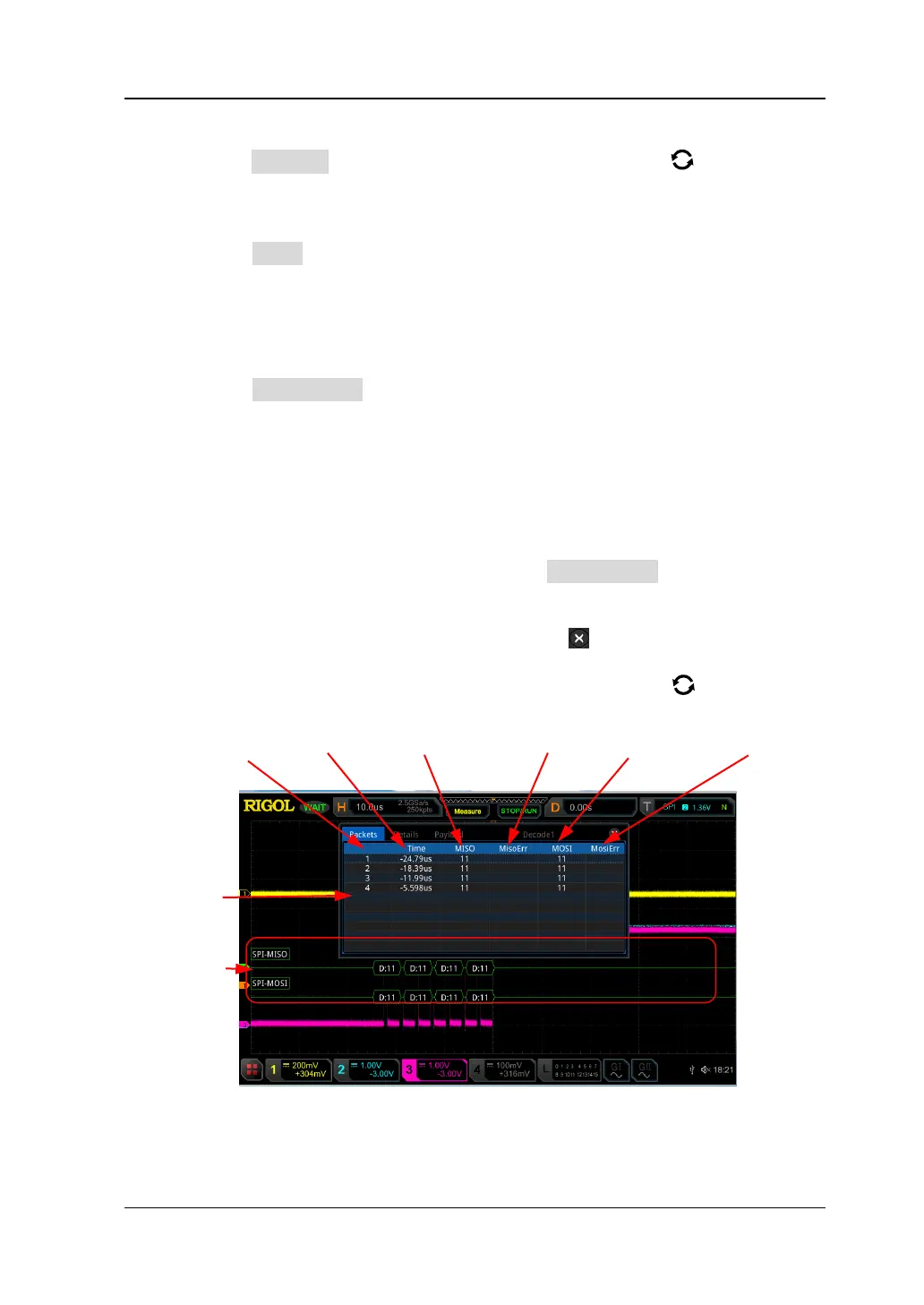

Figure 11-8 SPI Decoding Event Table
Line Number Time MISO Decoding Data MISO Error MOSI Decoding Data MOSI Error
Event Table
SPI Bus

Rigol MSO5074 Specifications

General

Bandwidth	70 MHz
Channels	4
Timebase Accuracy	± 2 ppm
Operating Temperature	0 °C to +40 °C
Display	800x480
Waveform Capture Rate	500, 000 wfms/s
Vertical Resolution	8 bits
Interfaces	USB Host, USB Device, LAN, HDMI
Input Impedance	1 MΩ
Trigger Types	Edge, Slope, Pulse, Video, Pattern, Duration, Timeout, Window, Runt
Sample Rate	8 GSa/s
