RIGOL Chapter 21 Remote Control
21-4 MSO5000 User Guide
3. Search for the device resource

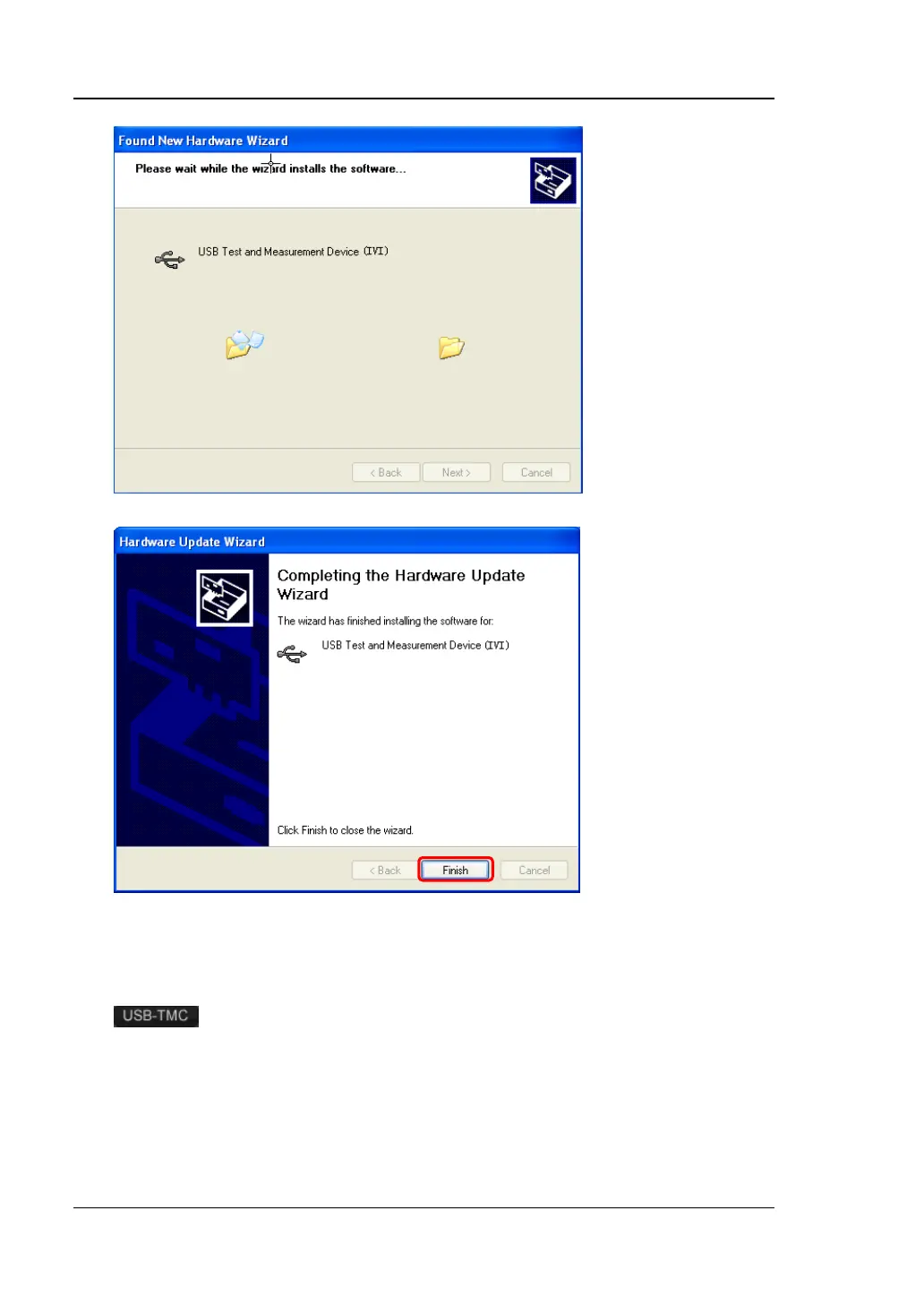

Start up Ultra Sigma and the software will automatically search for the resource
currently connected to the PC via the USB interface. You can also click
to search for the resource.
4. View the device resource
The searched instrument resource will be under the directory of "RIGOL Online
Resource", with the model of the instrument and the USB interface information
being displayed as follows.
7

Rigol MSO5074 Specifications

General

Bandwidth	70 MHz
Channels	4
Timebase Accuracy	± 2 ppm
Operating Temperature	0 °C to +40 °C
Display	800x480
Waveform Capture Rate	500, 000 wfms/s
Vertical Resolution	8 bits
Interfaces	USB Host, USB Device, LAN, HDMI
Input Impedance	1 MΩ
Trigger Types	Edge, Slope, Pulse, Video, Pattern, Duration, Timeout, Window, Runt
Sample Rate	8 GSa/s
