Chapter 21 Remote Control RIGOL

MSO5000 User Guide 21-5

5. Control the instrument remotely

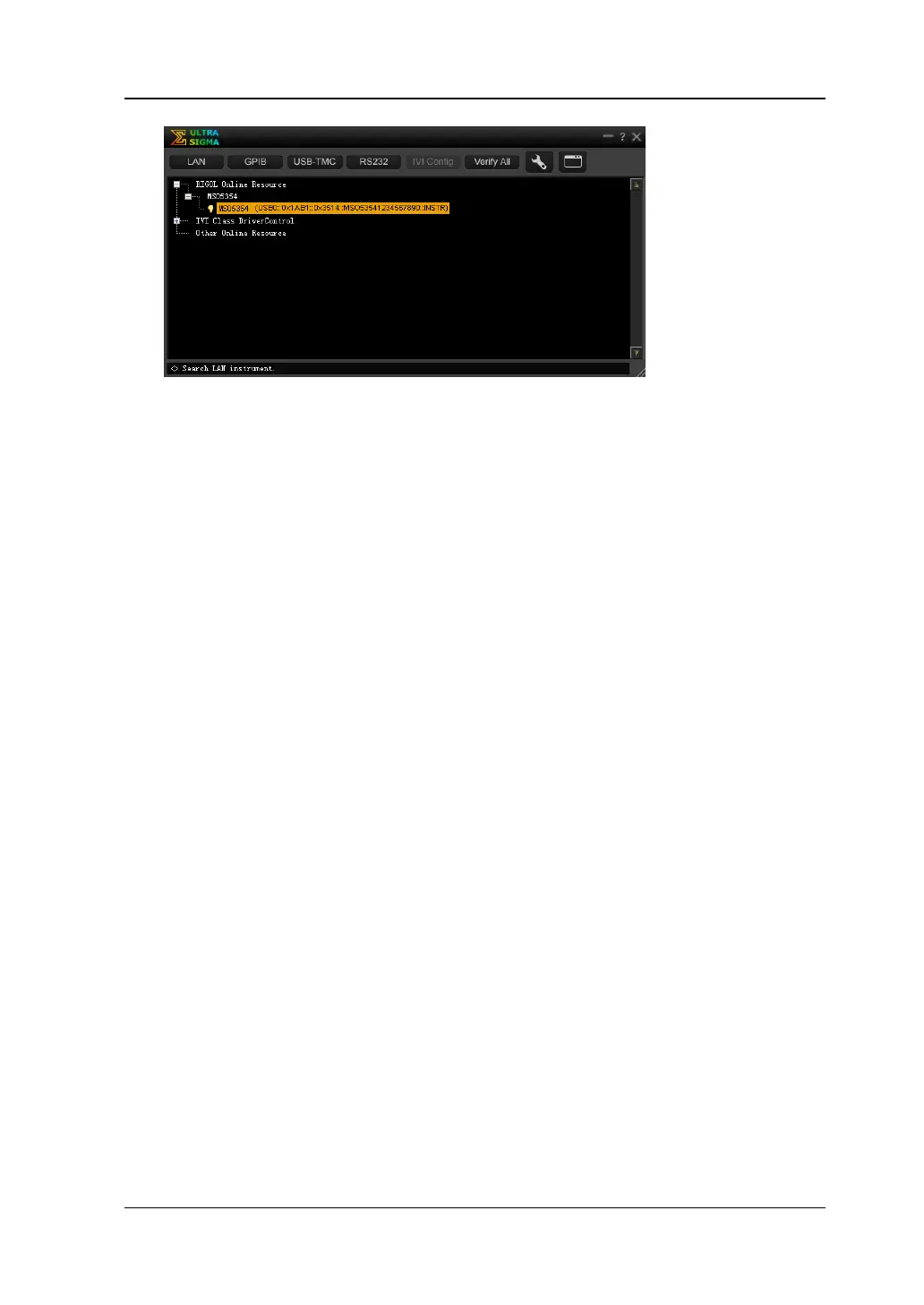

Right-click the resource name "MSO5354

(USB0::0x1AB1::0x3514::MSO53541234567890::INSTR)" and select "SCPI

Panel Control" to turn on the remote command control panel, through which you

can send commands and read data.
