3 Product description
16 Rittal Perforex BC machining centre
EN
Type
Magazine size
(standard)
Position
BC 1001 / 1007 HS
18
Rigid at the left-hand side on the ma-
chine frame body
BC 1008 HS
20
Rigid at the left-hand side on the ma-
chine frame body
BC 2014 HS
20
Coupled parallel to the gantry/support
: Tool change magazine - magazine sizes and position in the standard variant

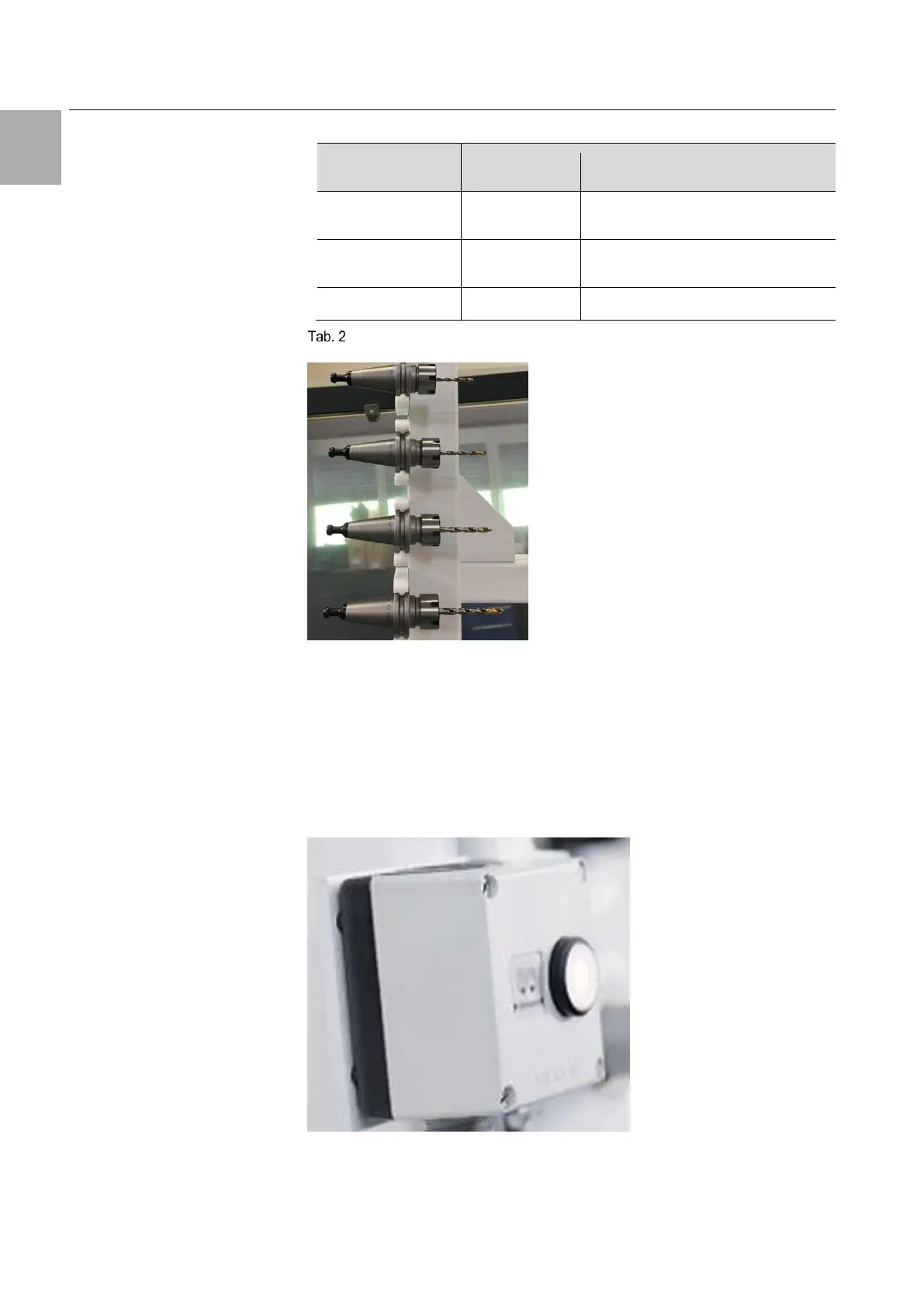

Fig. 6: Tools in the tool change magazine
3.1.7 Pneumatic clamping device
The pneumatic clamping device consists of the pneumatic clamping strip for
panels and cubes at the component support for Y=0 as well as also the
pneumatic clamping for cubes via clamping cushions at the traverse (Fig. 9).
The clamping devices are actuated via push-buttons on the left- and right-
hand side of the machining area.
Fig. 7: Pneumatic clamping device (clamping strip) actuation
The pictogram printed next to each illuminated push-button simplifies the
assignment of the push-button to the controlled function.
