9.8 Perforex BC 1008 HS top view
We reserve the right to make technical modifications, details without guaran-
tee!

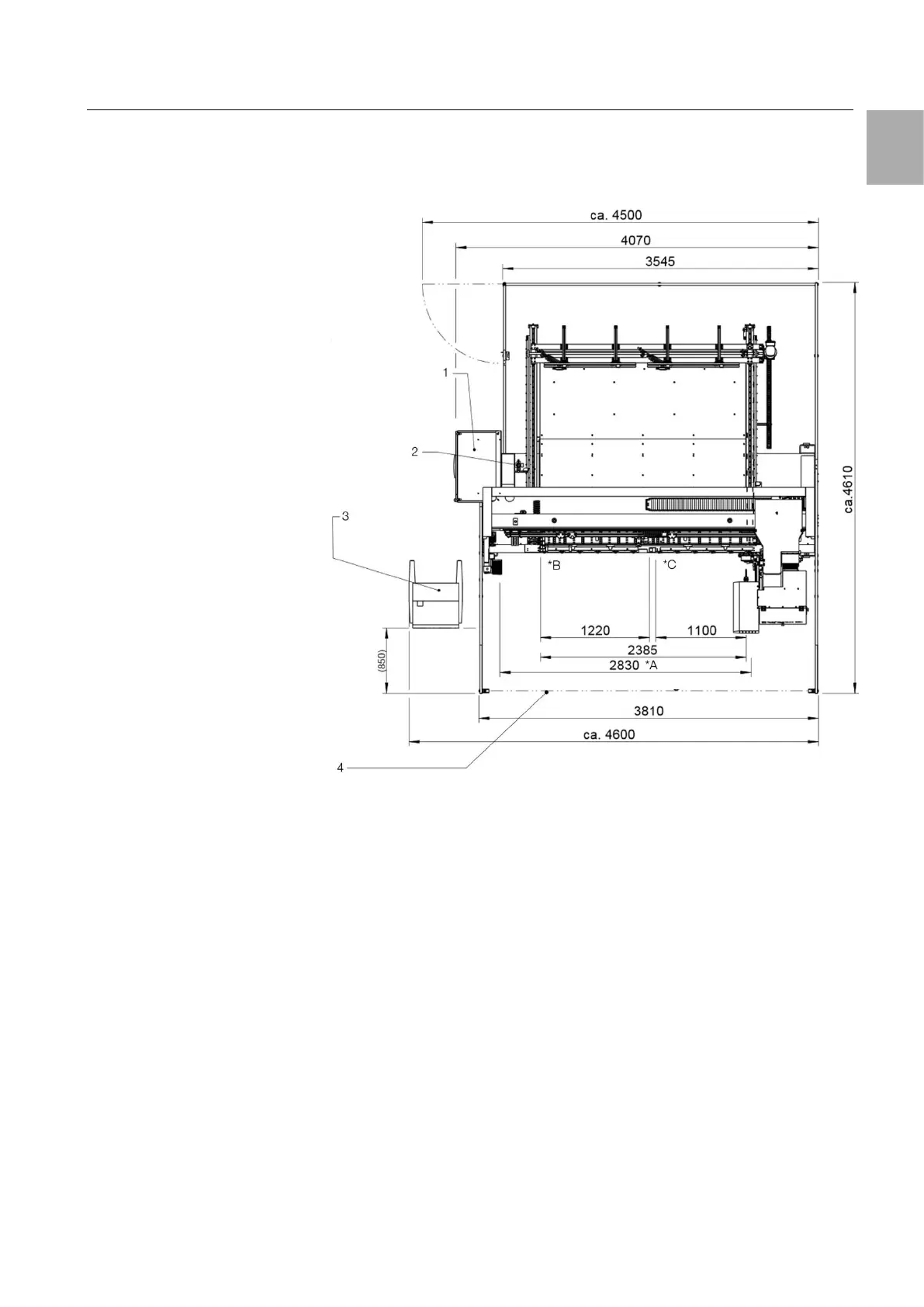

Fig. 25: Perforex BC 1008 HS top view with dimensions
Legend
1 Enclosure with power and network connection from below
2 Air connection
3 Operator console for screw-mounting on the floor in the specified separation
4 Light array
*A X axis traversal path
*B Fixed limit stop
*C Swivelable limit stop
