9.9 Perforex BC 2014 HS top view
We reserve the right to make technical modifications, details without guaran-
tee!

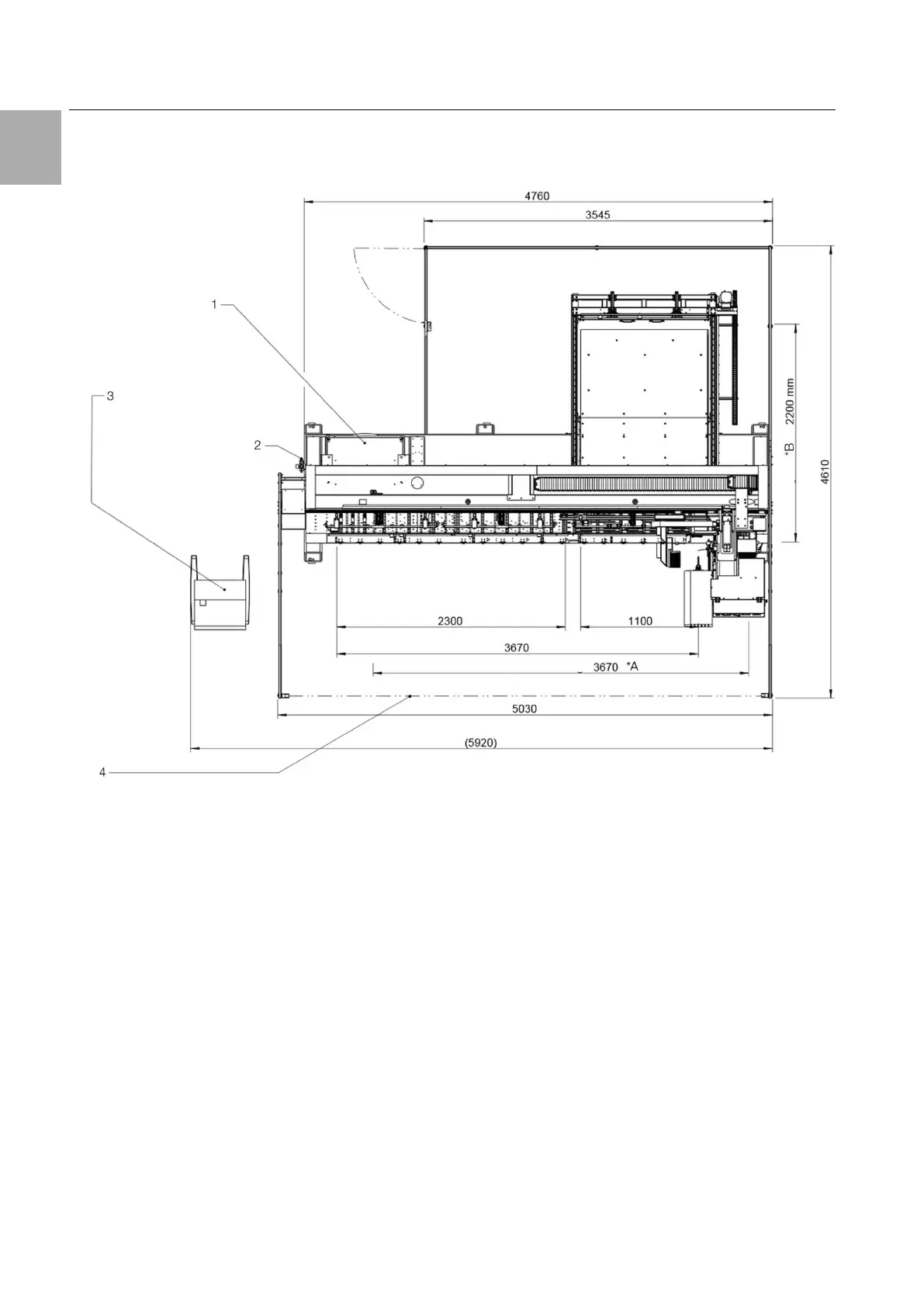

Fig. 26: Perforex BC 2014 HS (single-door) top view with dimensions. External dimen-
sions for two-door version identical.
Legend
1 Enclosure with power and network connection from below
2 Air connection
3 Operator console for screw-mounting on the floor in the specified separation
4 Light array
*A X axis traversal path
*B Insertable depth
