9 Appendixes
50 Rittal Perforex BC machining centre
EN
9.7 Perforex BC 1007 HS with motorised depth adjustment
2000 mm top view
We reserve the right to make technical modifications, details without guaran-
tee!

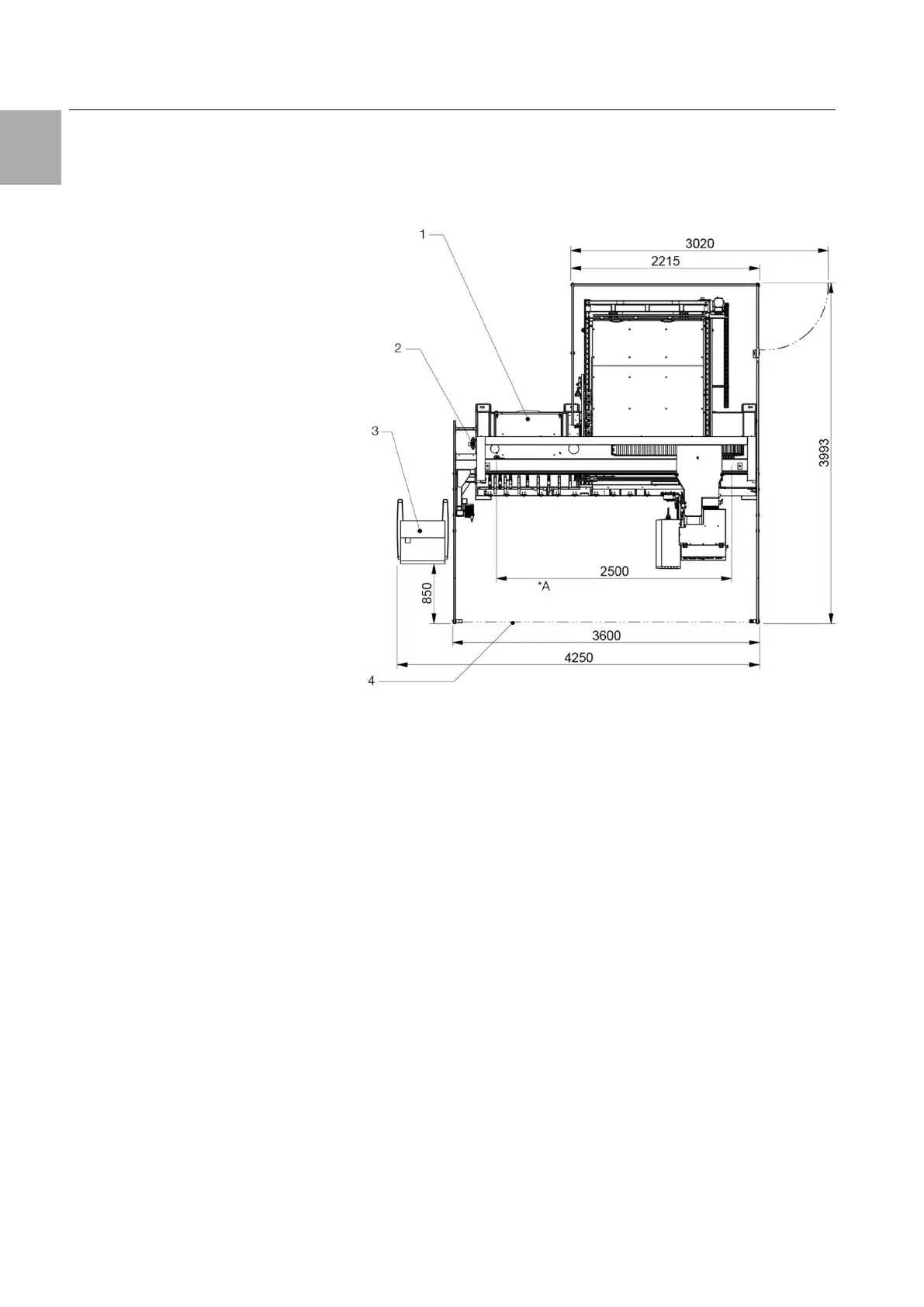

Fig. 24: Perforex BC 1007 HS top view (motorised depth adjustment 2000 mm) with
dimensions
Legend
1 Enclosure with power and network connection from below
2 Air connection
3 Operator console for screw-mounting on the floor in the specified separation
4 Light array
*A X axis traversal path
