6.4.1 Maintenance points identification
The following overview provides an example of the maintenance points.

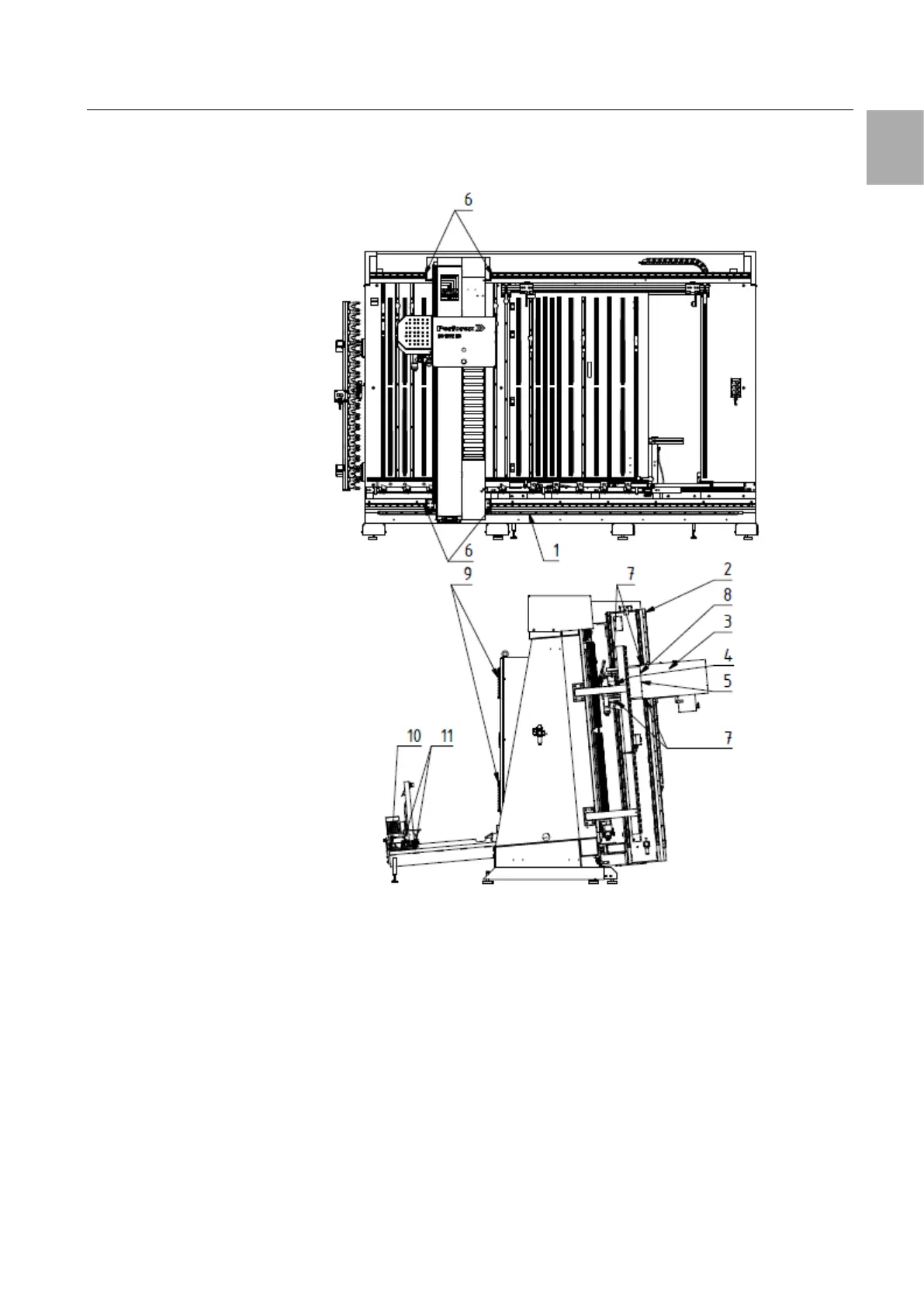

Fig. 21: Perforex BC maintenance points for the BC 1007 with motorised depth adjust-
ment as example
Legend:
1 X axis gear racks and toothed wheel
2 Y axis gear racks and toothed wheel
3 Z axis gear racks and toothed wheel
4 Tool
5 Electrospindle bearing assembly
6 X axis linear guides (4x)
7 Y axis linear guides (4x)
8 Z axis linear guides (4x)
9 Enclosure filter elements (2x)
10 Pressure unit gear racks and toothed wheel
11 Pressure unit linear guides (4x)
