9.6 Perforex BC 1007 HS with motorised depth adjustment
1600 mm top view
We reserve the right to make technical modifications, details without guaran-
tee!

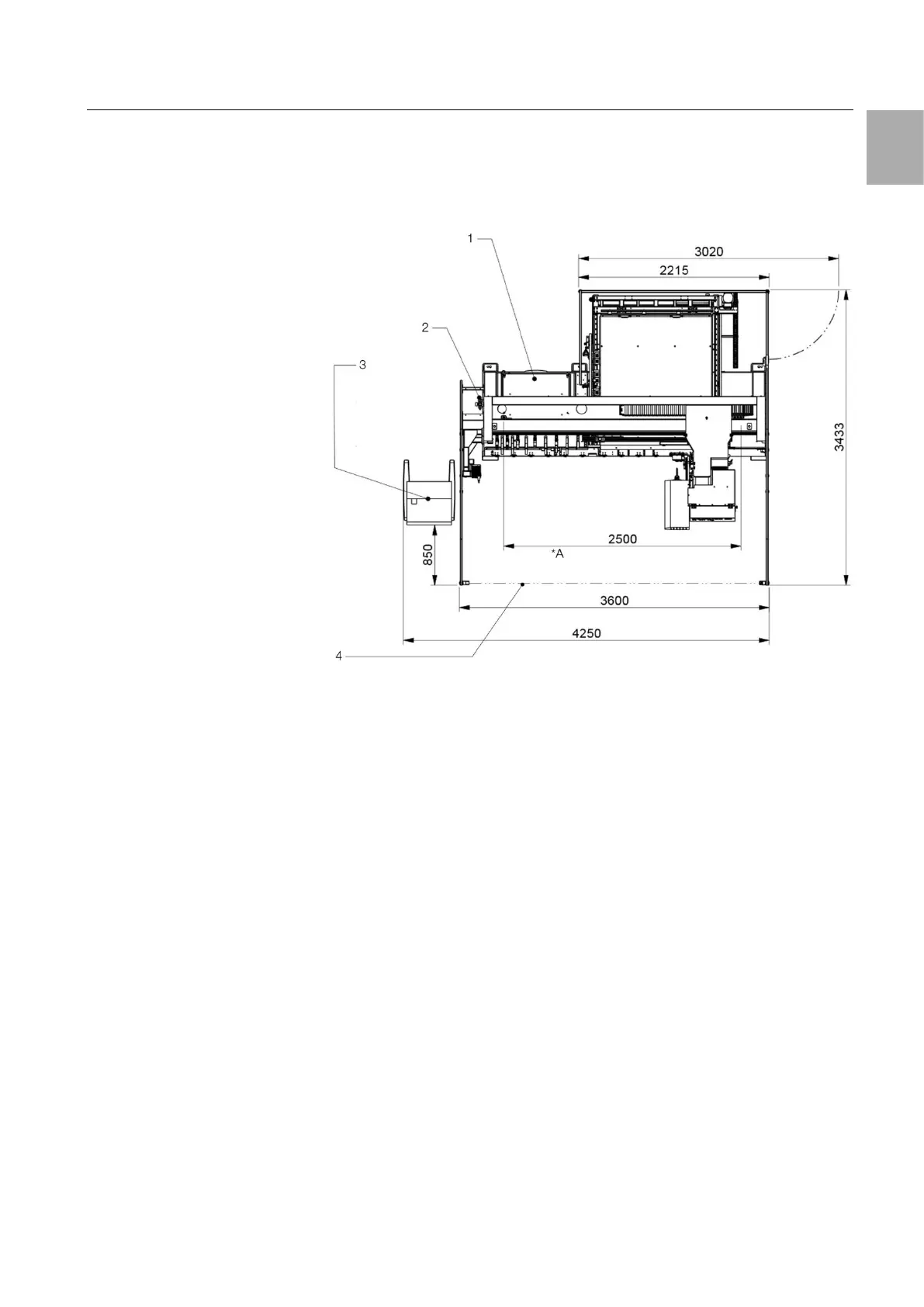

Fig. 23: Perforex BC 1007 HS top view (motorised depth adjustment 1600 mm) with
dimensions
Legend
1 Enclosure with power and network connection from below
2 Air connection
3 Operator console for screw-mounting on the floor in the specified separation
4 Light array
*A X axis traversal path
