6.11. SPOOL LOADING

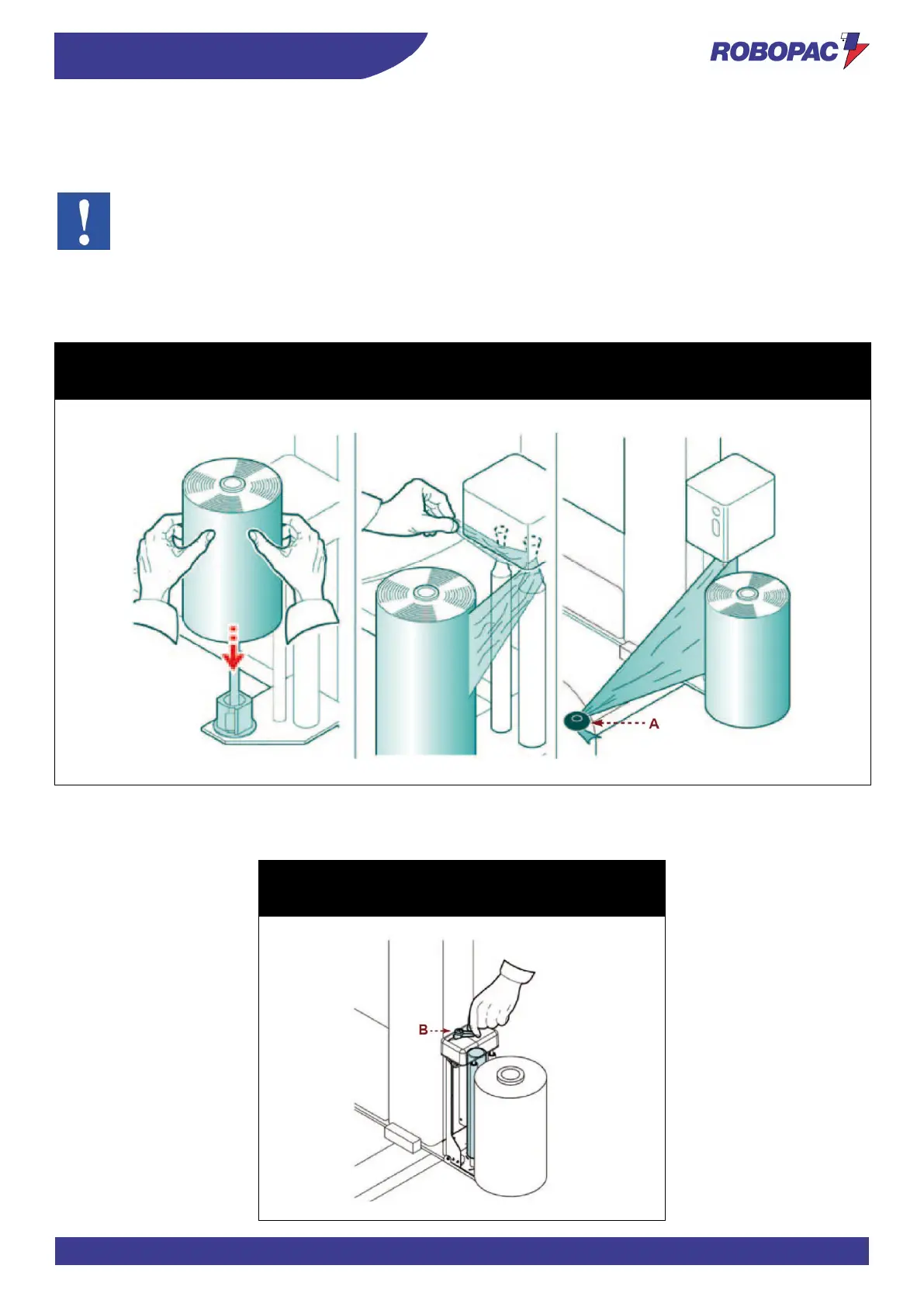

1. Insert the film spool into its seat on the spool carriage.
2. Gather the film to make a thin cord and make it pass between the double-cone surfaces.
Important
Unwind the film following the path engraved on the spool carriage plate.
3. Pull the cord outwards.
The film automatically moves down to the roller and covers it over its entire length.
4. Lock the film end into the suitable locking disc (A) on the rotary table.
Masterplat PLUS
Masterplat PLUS TP3
Masterplat PLUS LP
To allow film or mesh routing between rollers and unwinding on carriages of “FRD” type, it is necessary to unlock the
brake by turning the handwheel (B) to pos. “0”.
