INFORMATION ON HANDLING AND INSTALLATION
64
4.5.5. PNEUMATIC PRESSER ASSEMBLY (OPTIONAL)

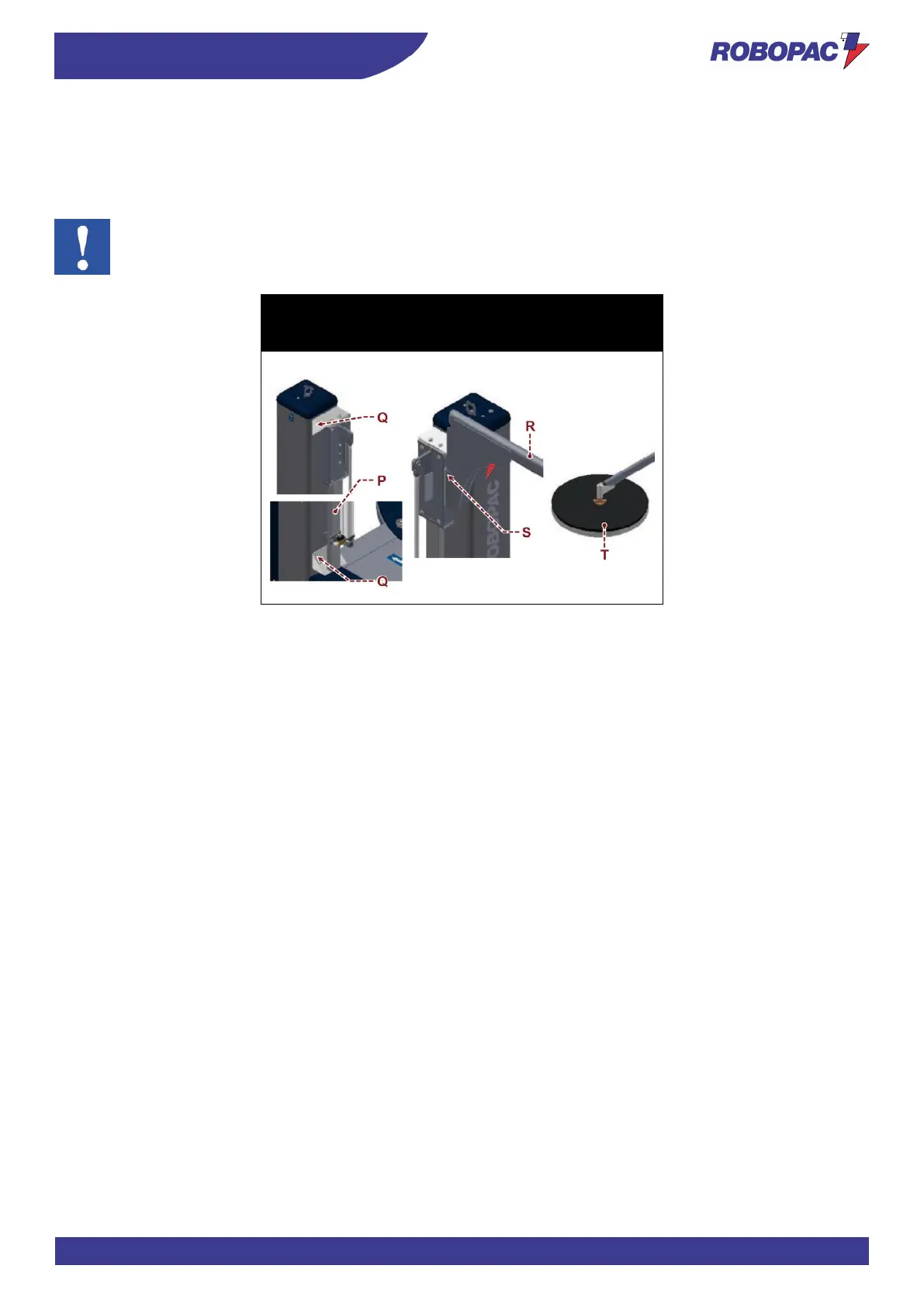

1. Fasten the guide (P) to the slide shaft with the suitable screws (Q).
2. Fit the arm (R) on the guide and fasten it with the screws (S).
3. Fit the presser plate (T) on the arm.
Important
The pneumatic connections have already been performed by the Manufacturer if the presser is delivered
with the machine.
Masterplat PLUS
Masterplat PLUS LP
Masterplat PLUS TP3
