5.6. ADJUSTING ROTARY TABLE GEAR WHEELS

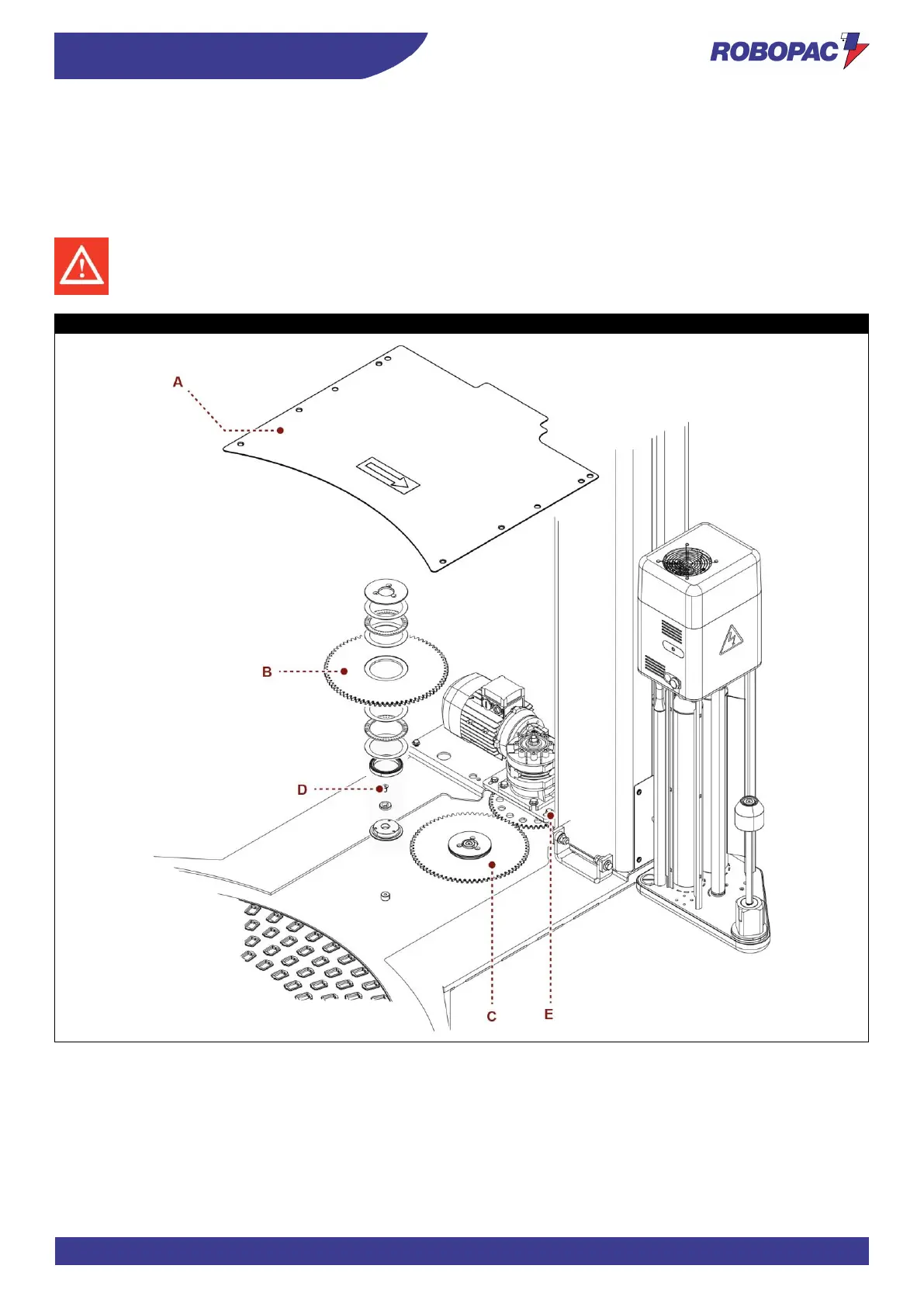

1. Remove the cover (A).
2. Loosen the fastening screws (E) and correctly position the gearmotor / gear wheel.
3. Loosen the fastening screws (D) of the gear wheels (B) and (C)
4. This adjustment must be performed at the operator’s discretion by using the proper tools.
Danger - warning
Any maintenance operation in this area must be carried out with machine stopped, with electric switch set
to OFF and with no other operator near the machine.
