4.5.1. ELECTRIC BOX ASSEMBLY

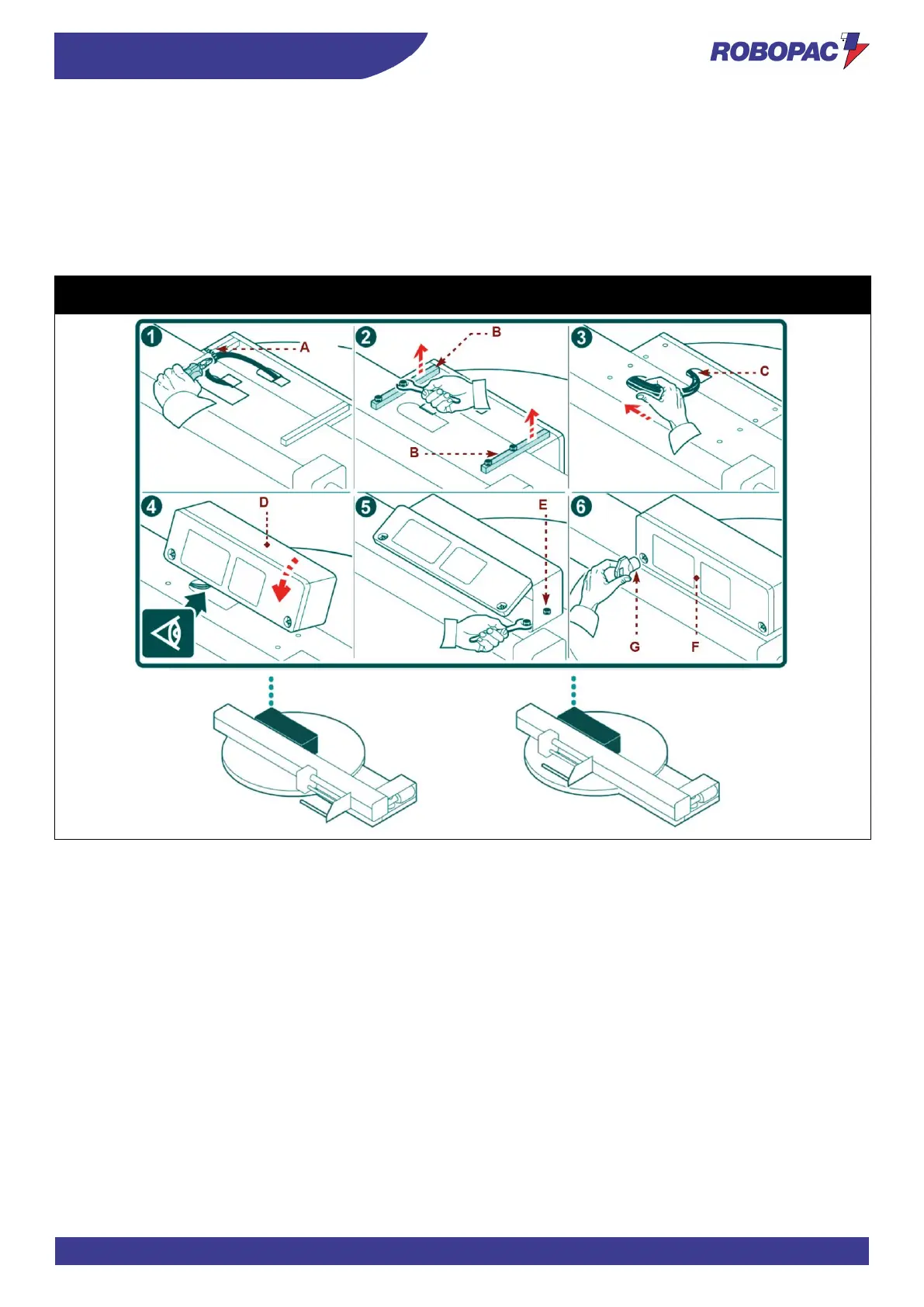

1. Cut the tie (A) which gathers the electric cables.
2. Remove the mounting brackets (B).
3. Route the electric cables (C) inside the slide shaft.
4. Lift the electric box (D).
5. Fasten the electric box to the slide shaft with the screws (E).
6. Close the cover (F) of the electric box (D) with the suitable key (G).
Masterplat PLUS LP
Masterplat PLUS TP3
