INFORMATION ON HANDLING AND INSTALLATION
58

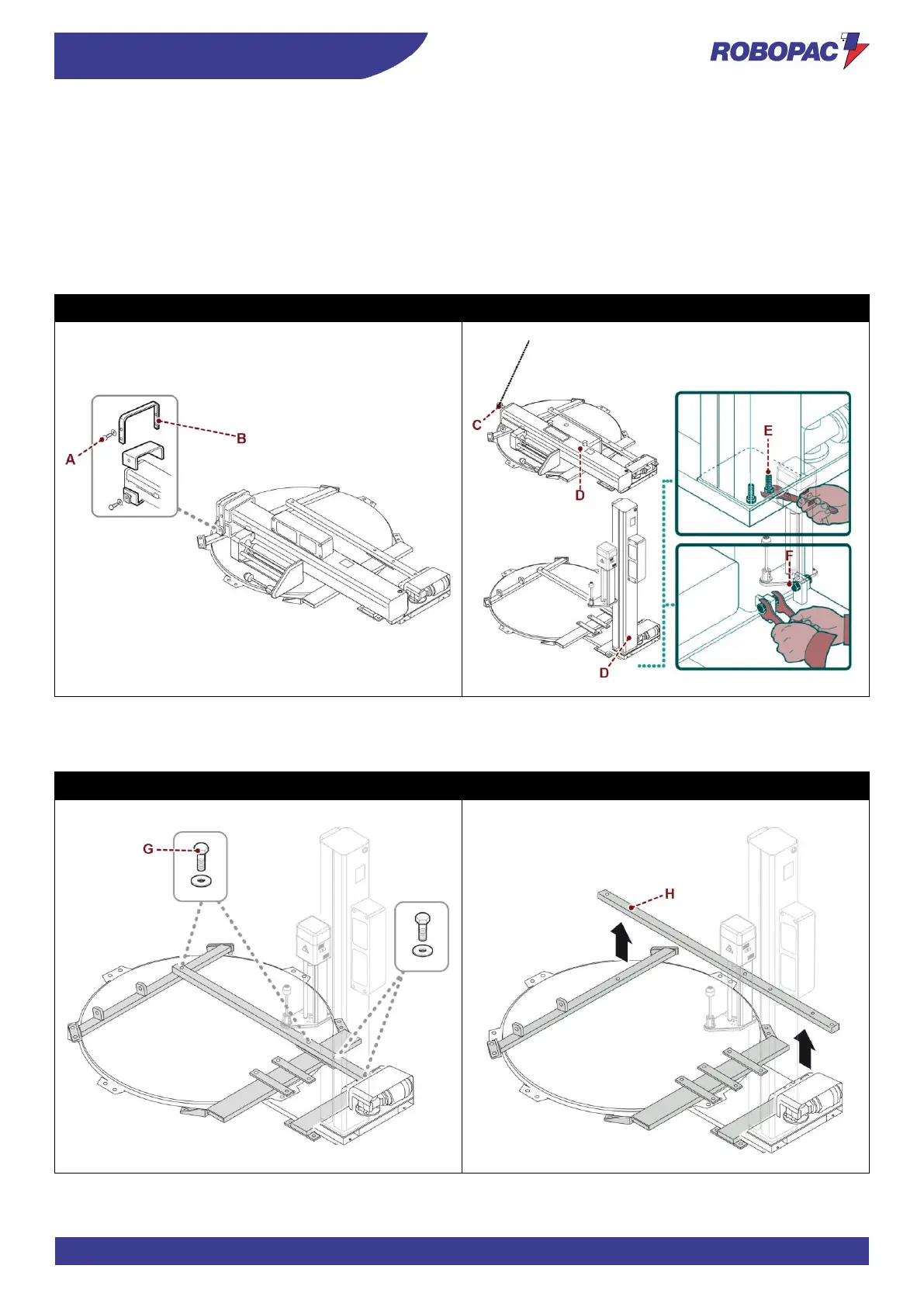

4.5.3. SLIDE SHAFT ASSEMBLY
1. Loosen the screws (A).
2. Lift the latch of the slide shaft (B).
3. Connect the hook of the lifting device to the bracket (C) of the slide shaft and tension (Only for slide shaft with
a height of 2200-2400 mm).
4. Lift the slide shaft (D).
5. Fasten the slide shaft to the machine body with the screws (E).
6. Tighten the screws of the hinge (F).
Masterplat PLUS LP
7. Loosen the screws (G).
8. Remove the bracket (H).
Masterplat PLUS LP
