INFORMATION ON HANDLING AND INSTALLATION
ENG

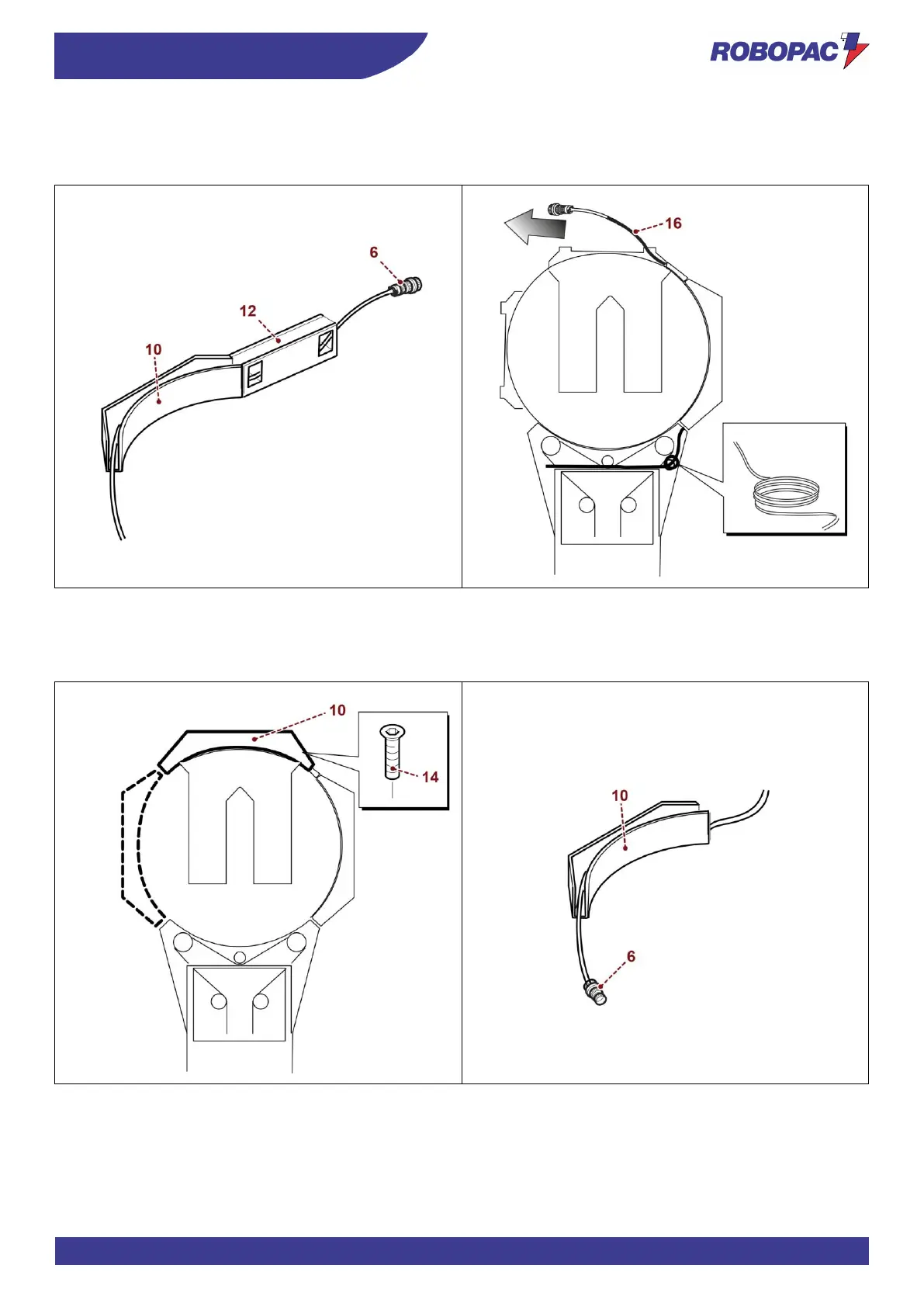

E. Remove the connector cable (6) from the chosen side (in this case, LH 10) and from the connection guards
(12).
F. Slide the photocell receiver connector cable (16) out from the opposite side of the ramp position.
G. Remove the guard (10) from the initial position and reposition it on the front side, fastening it with the screws
(14).
H. Reposition the photocell receiver connector cable (16) in the guard (10) and in the connection guard (12).
