Rockwell Automation 1794-AENTR, 1794-AENTRXT User Manual

Rockwell Automation Publication 1794-UM066C-EN-E - April 2023 27
Chapter 4 Rack-optimized Discrete I/O

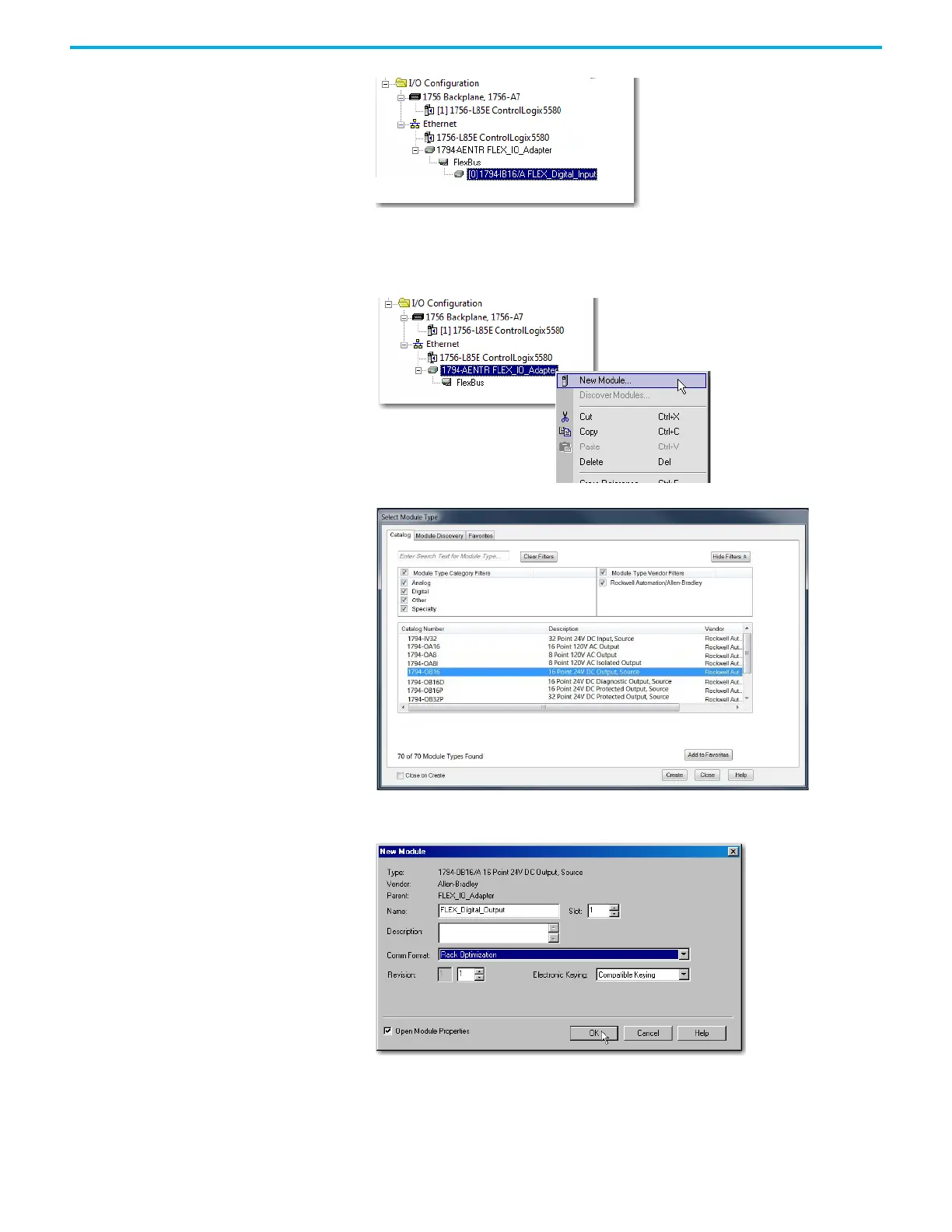

Add the Digital Output Module
1. From the I/O Configuration tree, right-click the remote 1794-AENTR adapter, and then select
New Module.
The Select Module Type dialog opens.
2. Select the 1794-OB16 module from the list, and then click Create.
The New Module dialog opens.
