44 Rockwell Automation Publication 1794-UM066C-EN-E - April 2023
Appendix B Configure the RSLinx Ethernet Communication Driver
3. From the Available Driver Types drop-down menu, select Ethernet Devices, and then click
Add/New.

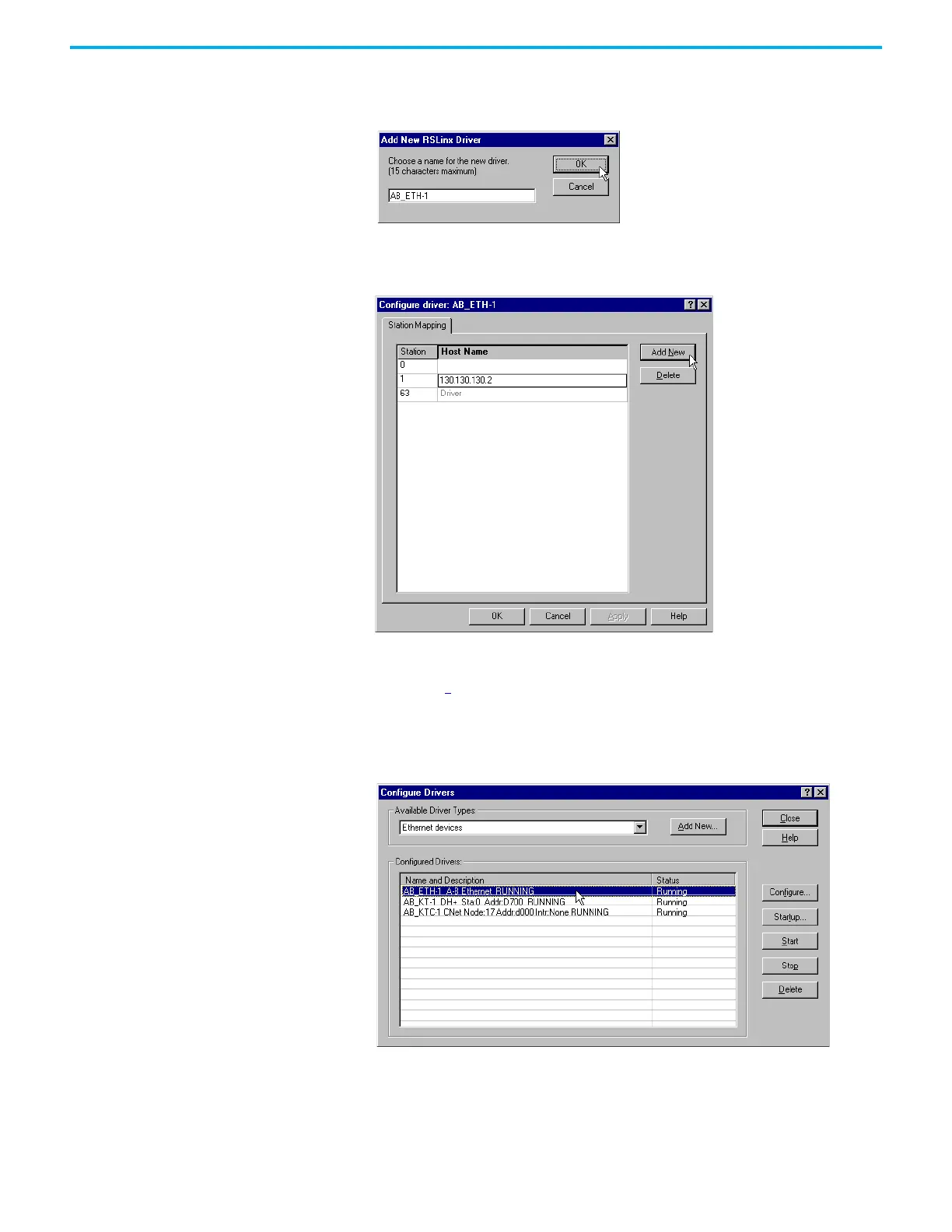

The Add New RSLinx Driver dialog box appears.
4. Select the default driver name (for example, AB_ETH-1) or type in your own name and click
OK.
The Configure driver dialog appears with the Station Mapping tab open.
5. Click Add New and enter the IP address or Host Name of your Ethernet device (for example,
130.130.130.2, “Pump1”).
6. Repeat step 5
for each additional Ethernet device that you need to access.
7. When you are done entering the IP addresses, click Apply and then click OK to close the
Configure driver dialog.
The new driver appears in the list of Configured Drivers. Your list displays the drivers that
you have configured on your workstation.
8. Close RSLinx.
