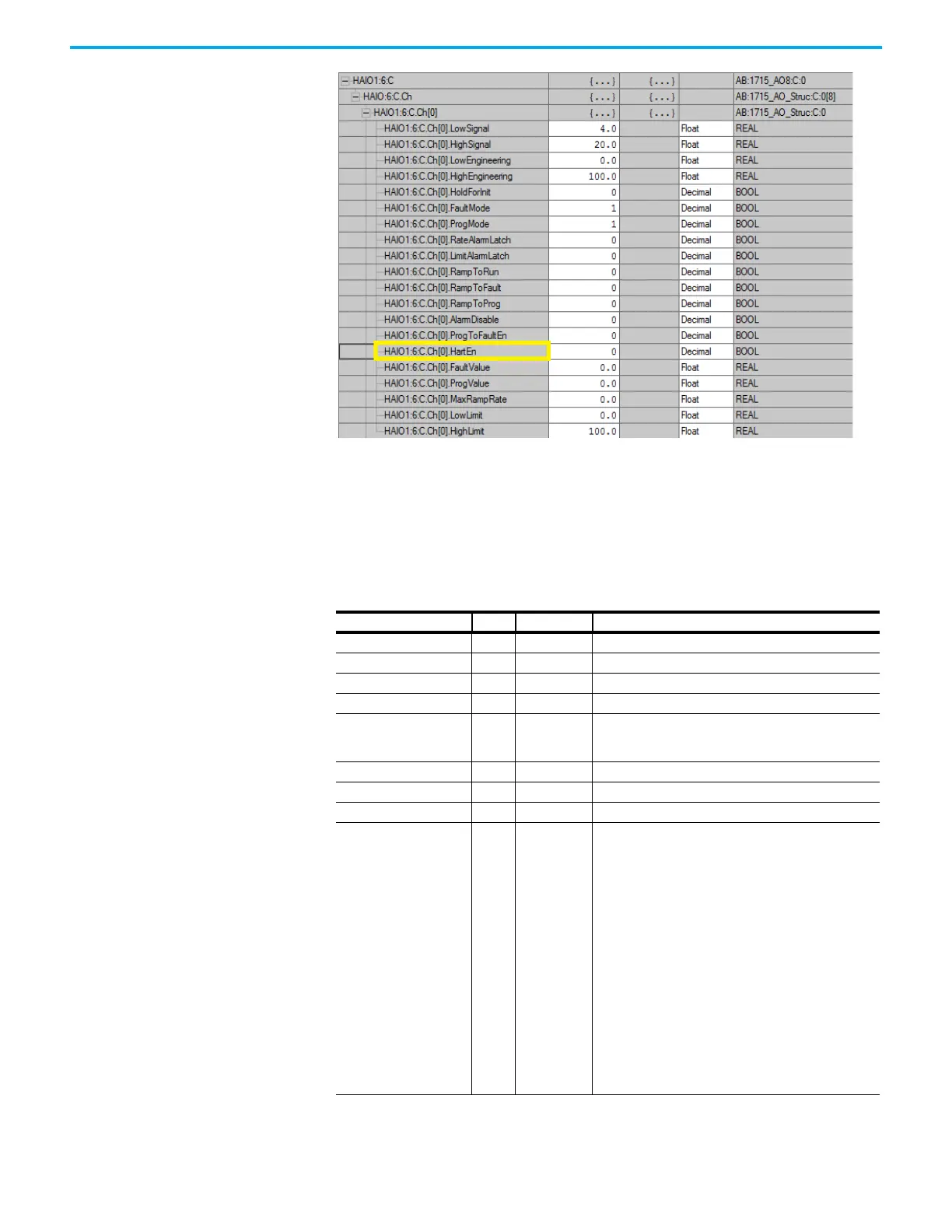

144 Rockwell Automation Publication 1715-UM001J-EN-P - December 2020
Chapter 5 Using 1715 Analog I/O Module Features
3. Repeat for all the I/O modules and channels that you want to monitor.
AB:1715_ChCHART_Struc
The AB:1715_ChHART_Struc is sub-structure within the analog modules input
tag. It is used to contain the HART data from the device.
Identifier Type Description Remarks
HARTPV REAL Variable Primary loop current variable
HARTSV REAL Variable Second loop current variable
HARTTV REAL Variable Third loop current variable
HARTQV REAL Variable Fourth loop current variable
PVStatus SINT Status
Primary variable status:
0x00 : variable is not connected.
0xc0 (decimal -64): variable is connected.
SVStatus SINT Status Second variable status. Values as for Primary.
TVStatus SINT Status Third variable status. Valuesas for Primary.
QVStatus SINT Status Forth variable status. Values as for Primary.
CommandStatus SINT Status
Command error summary. If bit 7 is 1 then the remaining bit
indicate communications errors as follows:
Bit 6: vertical parity error.
Bit 5: overrun error.
Bit 4: framing error.
Bit 3: longitudinal parity error.
Bit 2: reserved, set to 0.
Bit 1: buffer overflow.
Bit 0: not used.
If bit 7 is 0 the remaining bits contain a command specific
response code in the range 0 to 127. Some common
response codes are:
0: Success – command completed successfully.
32: Busy – the device is performing a function that cannot
be interrupted by this command.
64: Command not implemented – the device does not
support the command.
