Rockwell Automation Publication 1715-UM001J-EN-P - December 2020 177
Chapter 6 Configure the Redundant I/O System

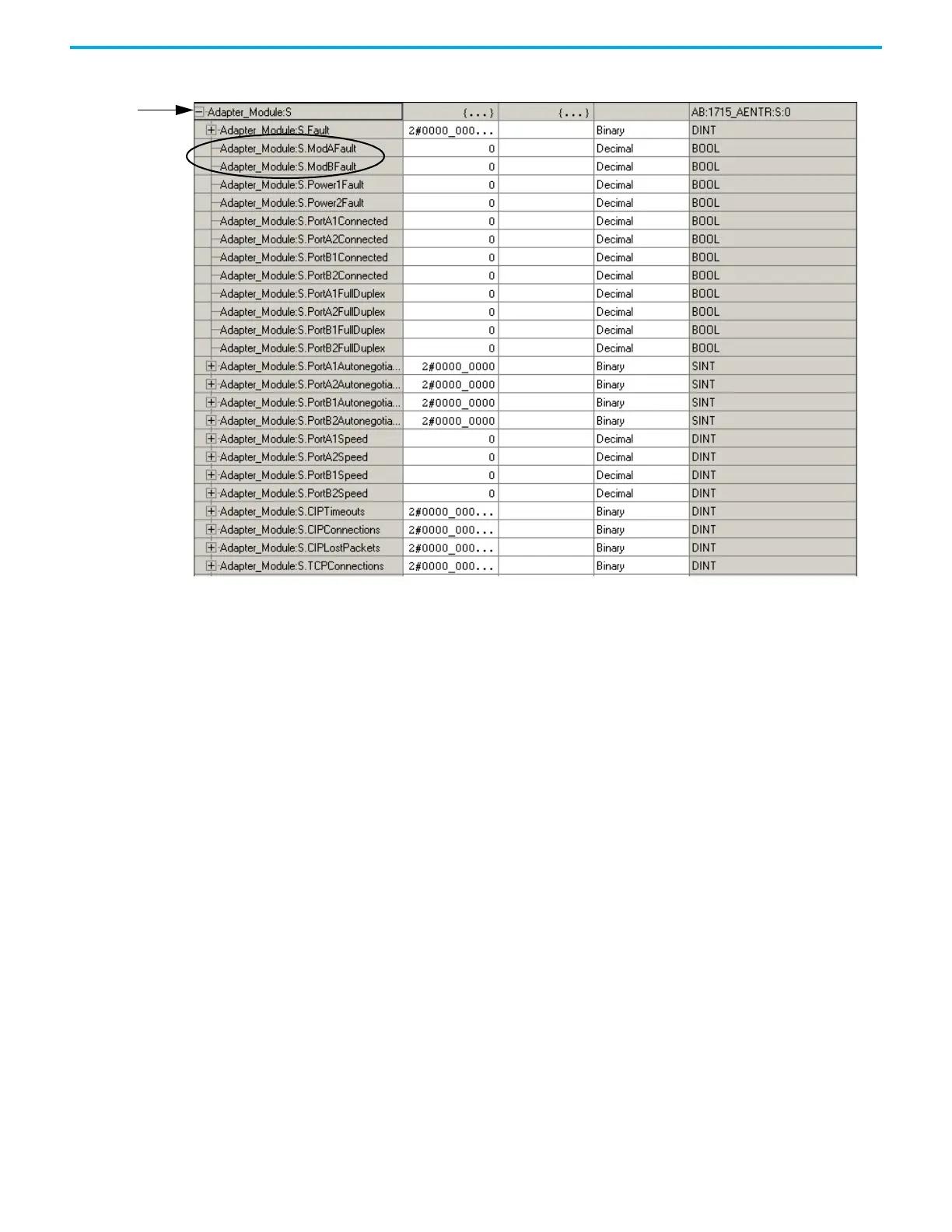

3. Locate the adapter status tag.
The adapter status tag name is followed by ‘:S.’
4. Expand the twisty for the adapter status tag to view the status
information for the primary and secondary adapters.
1715-IB16D Digital Input
Module
Add the Digital Input Module to the Project
Once the 1715-AENTR adapter is configured in the project, you are ready to add
I/O modules to the project. In this section, you do the following:
• Add a 1715-IB16D digital input module in Duplex mode to the project.
• Add a 1715-IB16D digital input module in Simplex mode to the project.
Depending on which configuration you choose, you can skip the steps
that do not apply.
Step 1: Add the Digital Input Module in Duplex Mode
1. To add a 1715-IB16D Digital Input module in Duplex mode to the project,
right-click the 1715-AENTR adapter and choose New Module.
Adapter Status tag
