Rockwell Automation Publication 1715-UM001J-EN-P - December 2020 153

Chapter 5 Using 1715 Analog I/O Module Features

1715-DTM HART Diagnostics

The DTM provides a Diagnostics function that enables the user to determine

the state of any HART devices connected to a 1715 I/O module. To access the

Diagnostics function using AssetCentre, do the following:

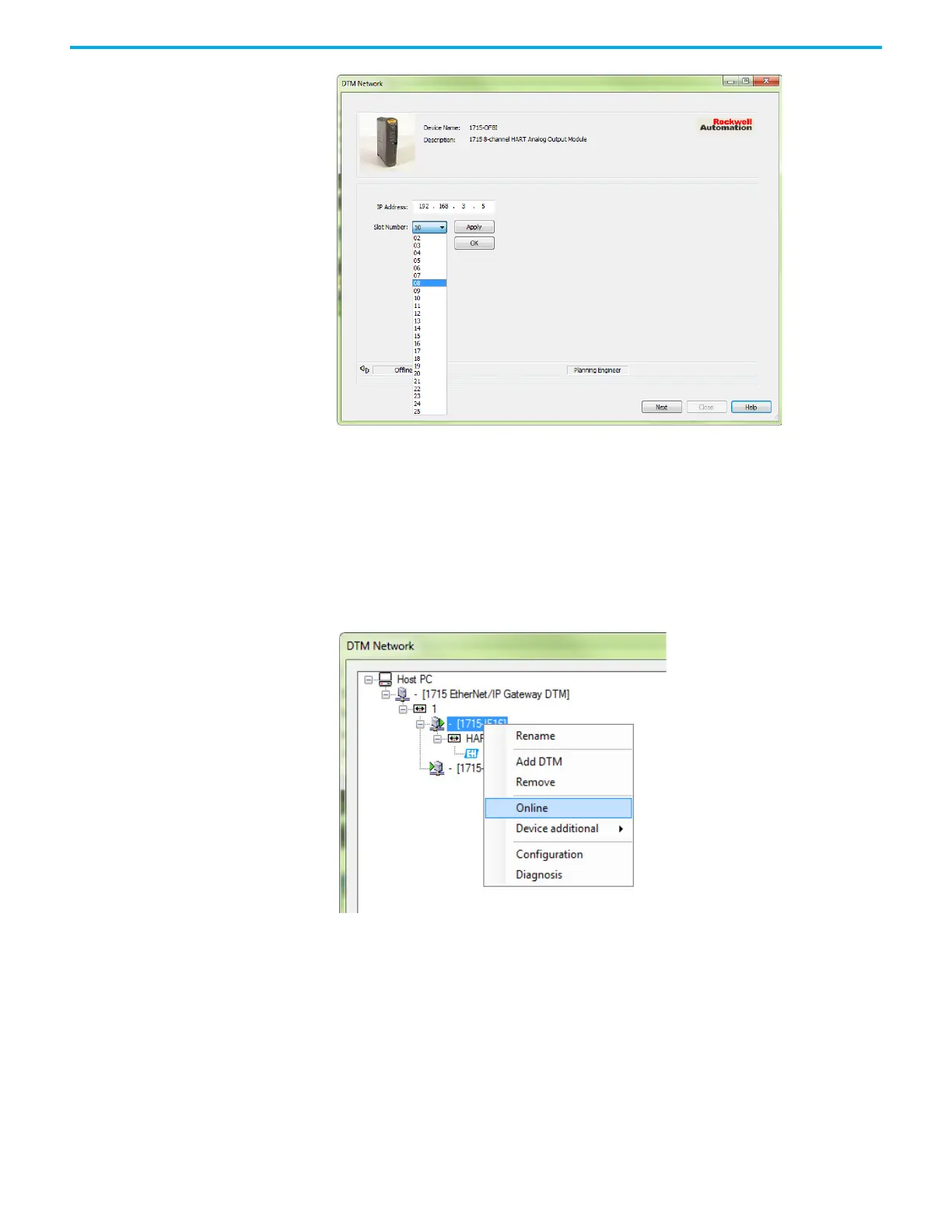

1. Ensure that the I/O module DTM is online. To do this right click on the I/

O module and select Online from the menu.

2. Right click on the I/O module and select the Diagnosis function.
