146 Rockwell Automation Publication 1715-UM001J-EN-P - December 2020

Chapter 5 Using 1715 Analog I/O Module Features

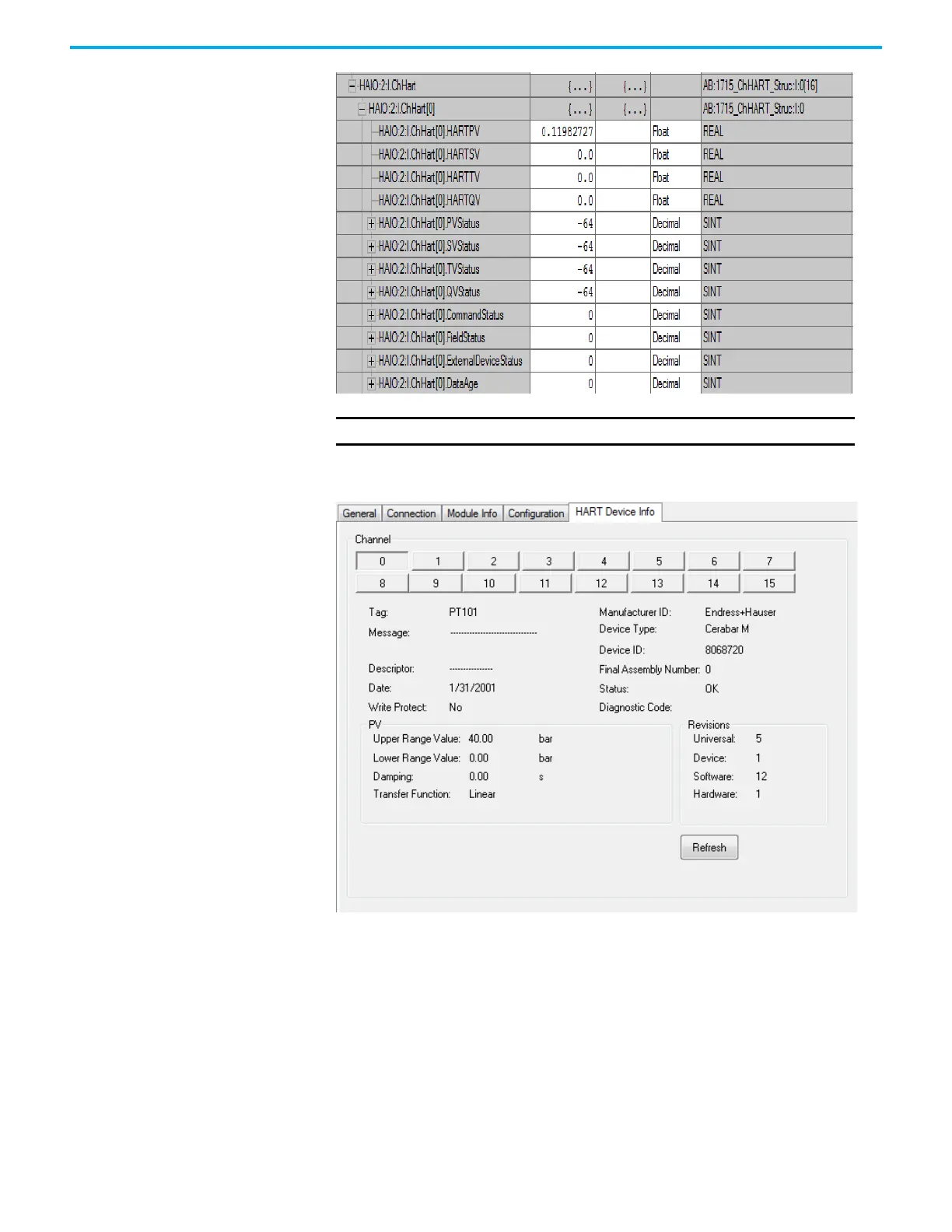

Once HART Pass-Through has been enabled, HART device data can be viewed

on the HART Device Info tab of a module properties:

HART Pass-Through Features

The support for HART Pass-Through in the 1715 Adapter has these features:

• Pass-Through support for HART standards 5, 6 and 7.

• Support for CIP HART object services 0x4b, 0x5a, 0x5b, 0x5c, 0x5e, 0x5f

and 0x60.

• Supports the 1715-DTM provided by Rockwell Automation.

IMPORTANT

HART Pass-Through must be enabled
