162 Rockwell Automation Publication 1715-UM001J-EN-P - December 2020

Chapter 6 Configure the Redundant I/O System

Step 2: Configure the Controller in the Project

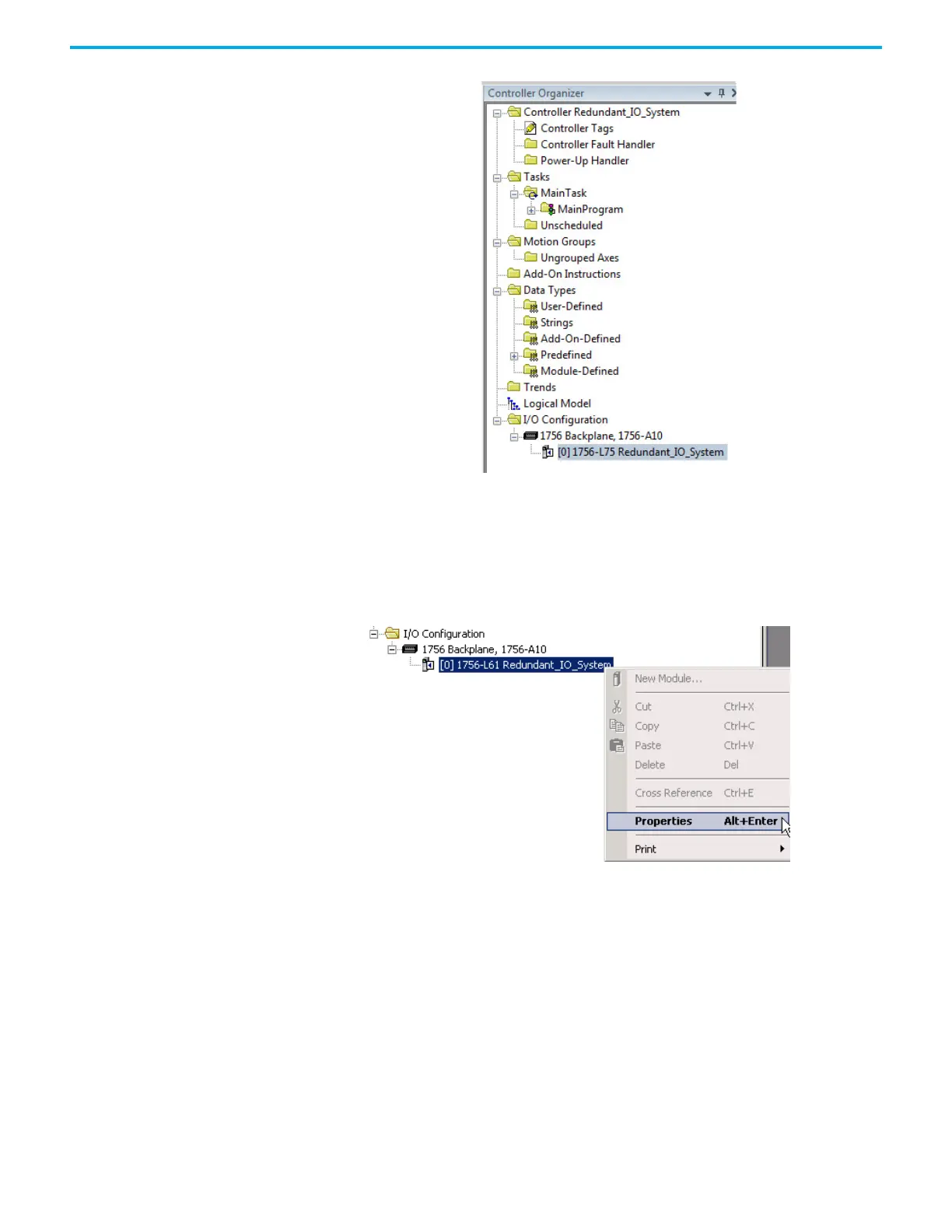

1. To configure the controller, in the Controller Organizer, from the I/O

Configuration folder, right-click the new controller that you created and

choose Properties.

The Controller Properties dialog box appears.

Main Page

Default Chapter3
