24 Rockwell Automation Publication 1715-UM001J-EN-P - December 2020

Chapter 1 Redundancy System Overview

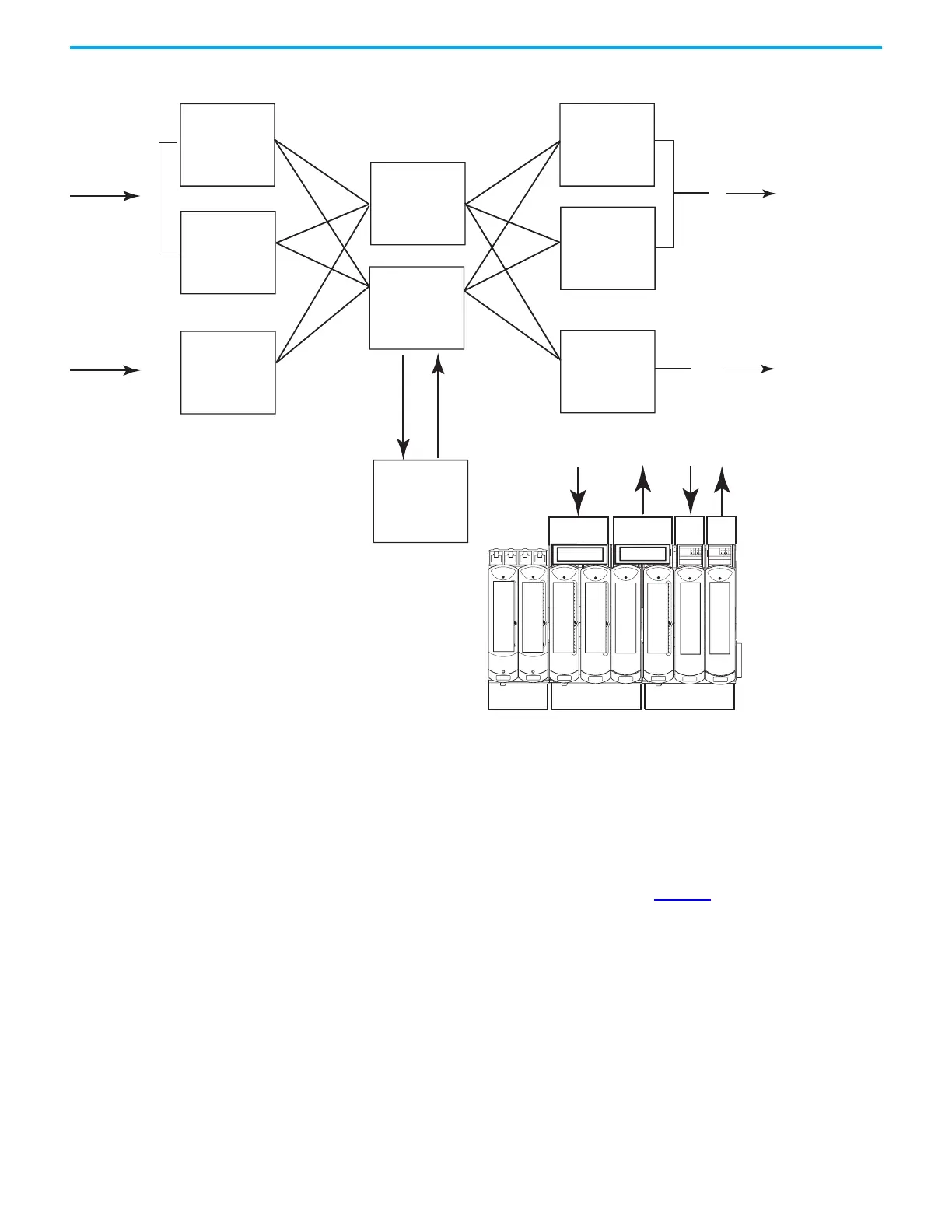

Figure 8 - Mixed Architecture

Bus Diagram

A detailed drawing of the backplane is shown Figure 9.

1715-AENTR

ADAPTER

O/P

SENSORS

FINAL

ELEMENTS

IO BASE

1715-A310

CH1

TERMINAL IDENTITY

AOTA

Dual.

CH1

TERMINAL IDENTITY

AOTA

Dual.

CH1

TERMINAL IDENTITY

AOTA

Dual.

1715-IB16D

1715-OB8DE

I/P

O/P

IO BASE

1715-A310

CH1

TERMINAL IDENTITY

AOTA

Dual.

CH1

TERMINAL IDENTITY

AOTA

Dual.

CH1

TERMINAL IDENTITY

AOTA

Dual.

1715-IB16D

1715-OB8DE

1715-

TADOB8DE

1715-

TADIB16D

1715-A2A

1715-A3IO

I/P

O/P

1715-IB16D

FINAL

ELEMENTS

SENSORS

1715-

TASIB16D

1715-

TASOB8DE

1715-OB8DE

CLX

CIP NETWORK

45423

Default Chapter3
