Chapter 5 Using 1715 Analog I/O Module Features
1715-IF16/OF8I

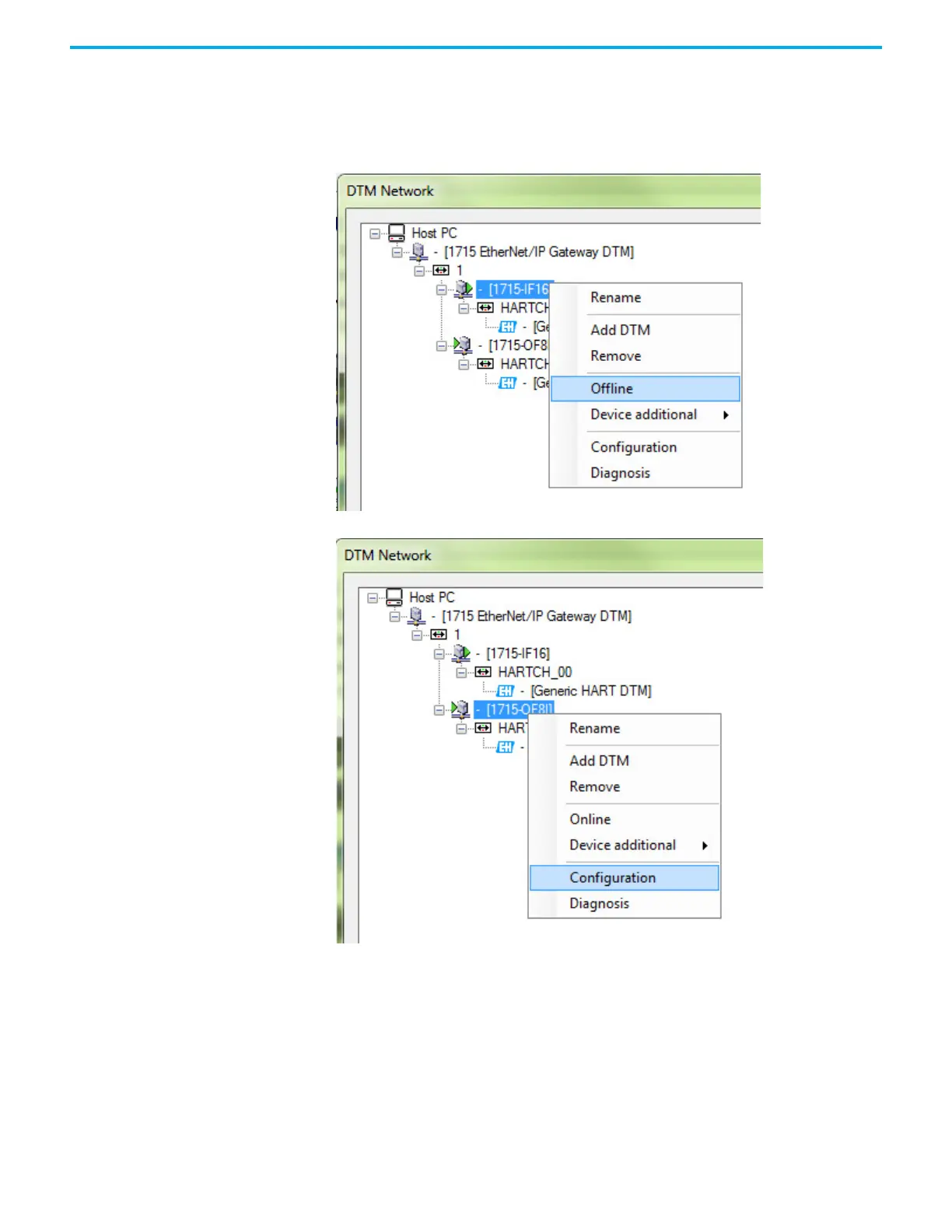

To configure the 1715-IF16 or 1715-OF8I DTM, follow the steps below:
1. If the DTM is online take it offline by right clicking on the DTM and
selecting Offline.
2. Right click on the I/O DTM, select Configuration from the pop-up menu.
3. Enter the IP address of the 1715 Adapter, and select the I/O module slot
position. Note that the first I/O slot number is 2. Click ‘OK’. Either Apply
or OK must be clicked for the changes to take effect. Changes are ignored
if Next is clicked on its own.
To Next Page
