Rockwell Automation Publication 1715-UM001J-EN-P - December 2020 173
Chapter 6 Configure the Redundant I/O System

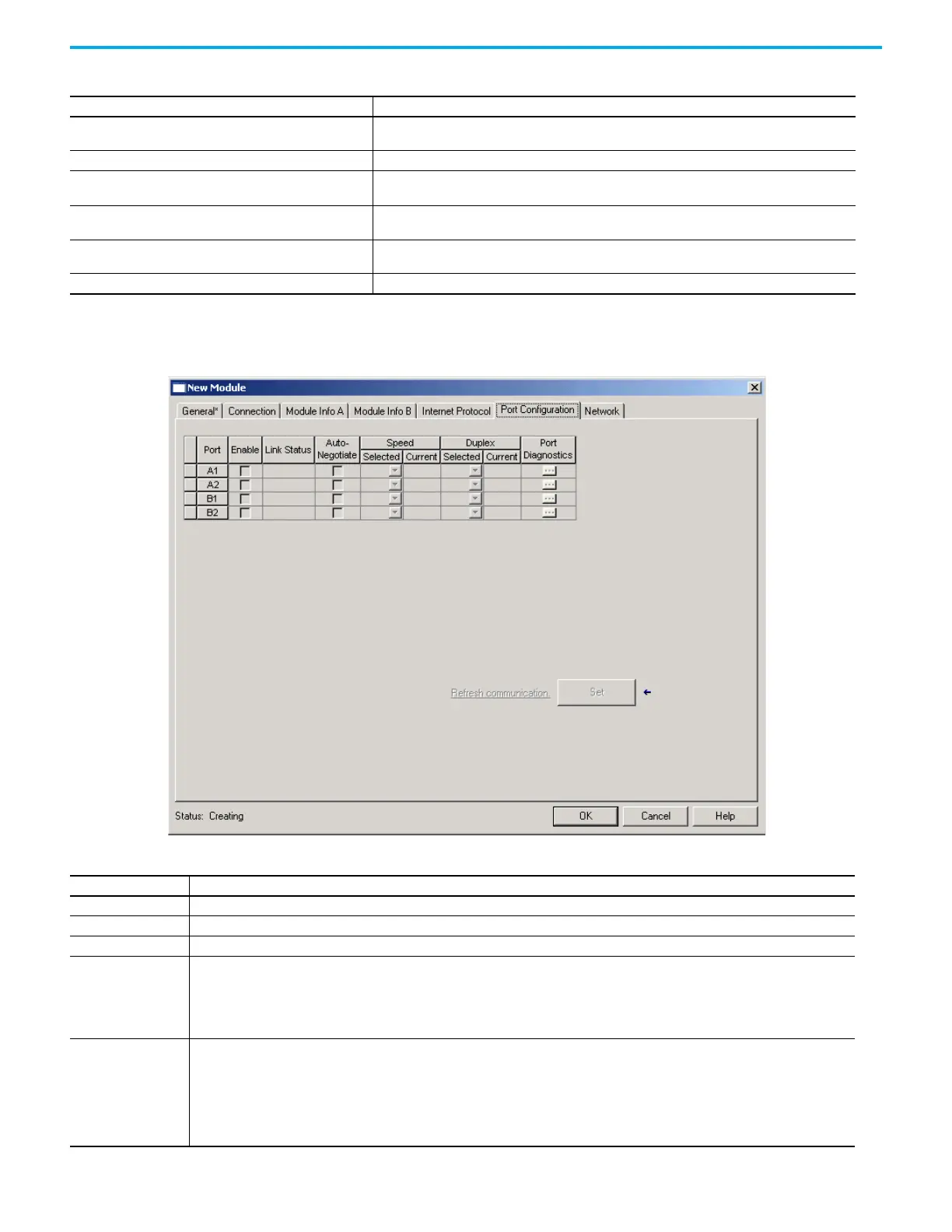

10. Click the Port Configuration tab.
The Port Configuration tab appears.
Domain Name
Displays the domain name of the module or to configure the IP settings manually, enter a valid
domain name.
Host Name Displays the host name of the module or enter a valid host name.
Primary DNS Server Address
Displays the primary DNS server IP address of the module or if you chose to configure the IP settings
manually, enter a valid primary DNS server address.
Secondary DNS Server Address
Displays the secondary DNS server IP address of the module or if you chose to configure the IP
settings manually, enter a valid secondary DNS server address.
Refresh communication
This link appears when communication with the module has failed. Click Refresh communication to
attempt to restart communication with the module.
Set Click this button to commit your modifications to the module.
Table 26 - Internet Protocol Parameters
Parameters Description
Table 27 - Port Configuration Parameters
Parameters Description
Port Displays the name of the port.
Enable Displays the enabled state of the port or check to enable the port.
Link Status Displays the link status of the port as Inactive (port is inactive) or Active (port is active).
Auto-Negotiate
Displays the port’s auto-negotiate status.
• Check Auto-Negotiate to enable the module to negotiate the speed and duplex of the port automatically.
• Uncheck Auto-Negotiate to set the speed and duplex of the port manually.
• Auto-Negotiate appears dimmed and checked when the port and duplex of the module cannot be specified manually.
• Auto-Negotiate appears dimmed and unchecked when the module specifies the speed and duplex of the port.
Speed
Selected: Displays the selected speed of the port if Auto-Negotiate is unchecked.
Valid speeds are:
•10 Mbps
•100 Mbps
Current: Displays the current speed of the port.
