48 Rockwell Automation Publication 1715-UM001J-EN-P - December 2020
Chapter 2 Installation Instructions

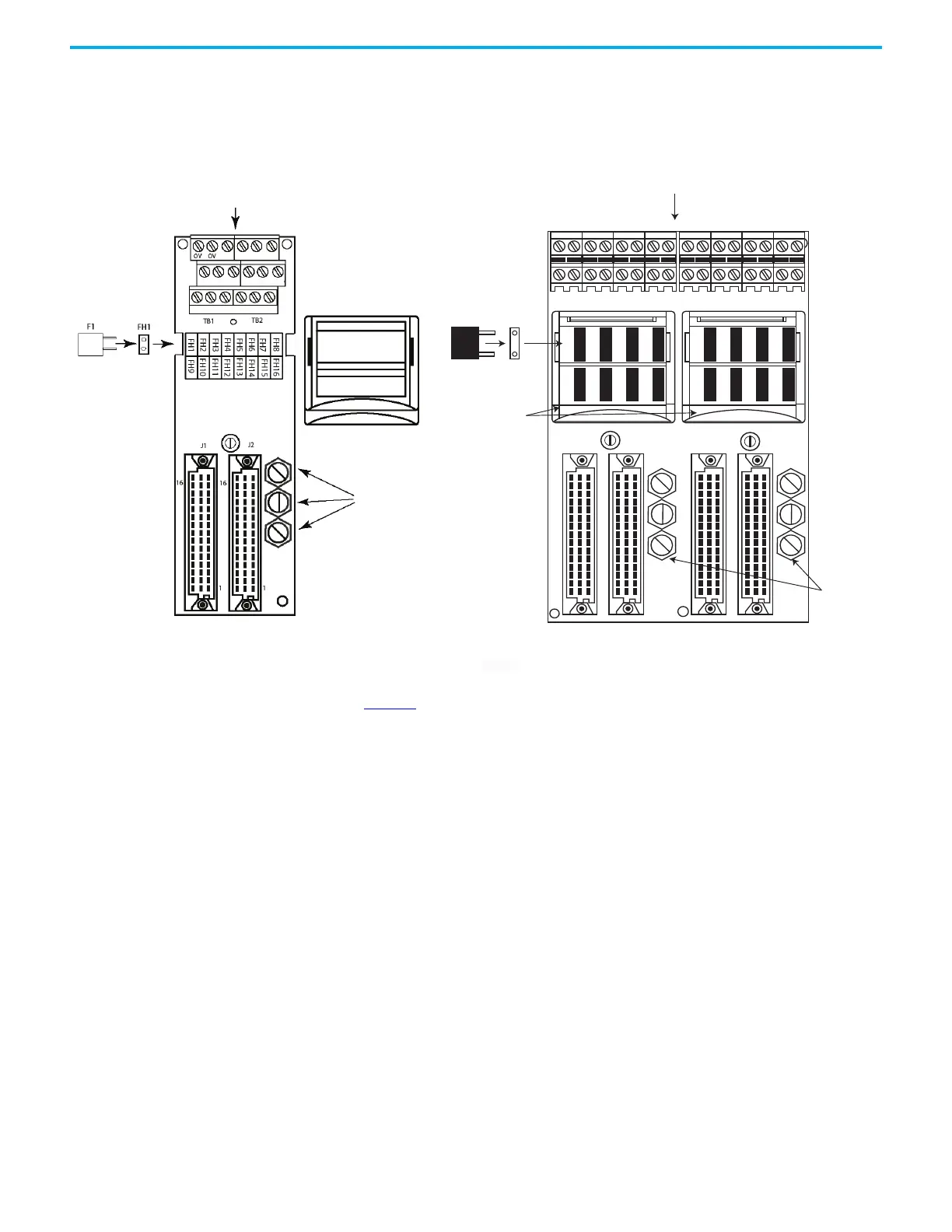

Figure 21 - 1715-TASIF16 and 1715-TADIF16 Analog Input Termination Assemblies
See page 92 for detailed wiring instructions.
Analog Output Termination Assemblies
Analog output termination assemblies support these features:
• Eight output channels for a simplex/duplex configuration
• Industry-standard field device connections at the terminal blocks
• Analog output channels provide 4…20 mA DC for external field devices
• Duplex termination assembly provides increased fault tolerance for
output channels
There are two types of analog output termination assemblies:
• A 1715-TASOF8, 8-channel simplex TA that provides termination for 8
single-ended analog output channels and mates with one 1715-OF8I
8 -channel analog output module
• A 1715-TADOF8, 8-channel duplex termination assembly provides fault
tolerant operation for 8 analog output channels through inter-module
communication and by routing the output source current from two
modules to the same field device
CH0 CH1 CH2 CH3
CH4 CH5 CH6 CH7 CH8 CH9
CH10 CH11 CH12 CH13 CH14 CH15
32120 -M
Fuse
Fuse
Holder
Channel -
Channel +
TB1 TB2
CH0 CH1 CH2
CH3
CH4CH5 CH6 CH7 CH8CH9
CH10CH11CH12
CH13
CH14
CH15
FS1 FS3 FS5 FS7
FS2
J1
16
cc cc
11 11
16 16 16
J2 J4
J3
FS4 FS6 FS8
FS9 FS11 FS13 FS15
FS10 FS12 FS14 FS16
1715-TASIF16
Analog Input Simplex
Termination Assembly
1715-TADIF16
Analog Input Duplex
Termination Assembly
32094 AI SIMPLEX TA
32120 M
Fuse Type: Littelfuse No. 396/TE5 50 mA Timelag Fuse; UL 248-14, 125V, T Leadfree for Analog Input Termination Assemblies. Use a pair of long-nosed pliers for
fuse removal and replacement.
Terminal Block Cable Entry This Side
Fuse Cover
Coding Pegs
Coding
Pegs
Fuse Covers
Field Connections This Side
