Rockwell Automation Publication 1715-UM001J-EN-P - December 2020 63

Chapter 2 Installation Instructions

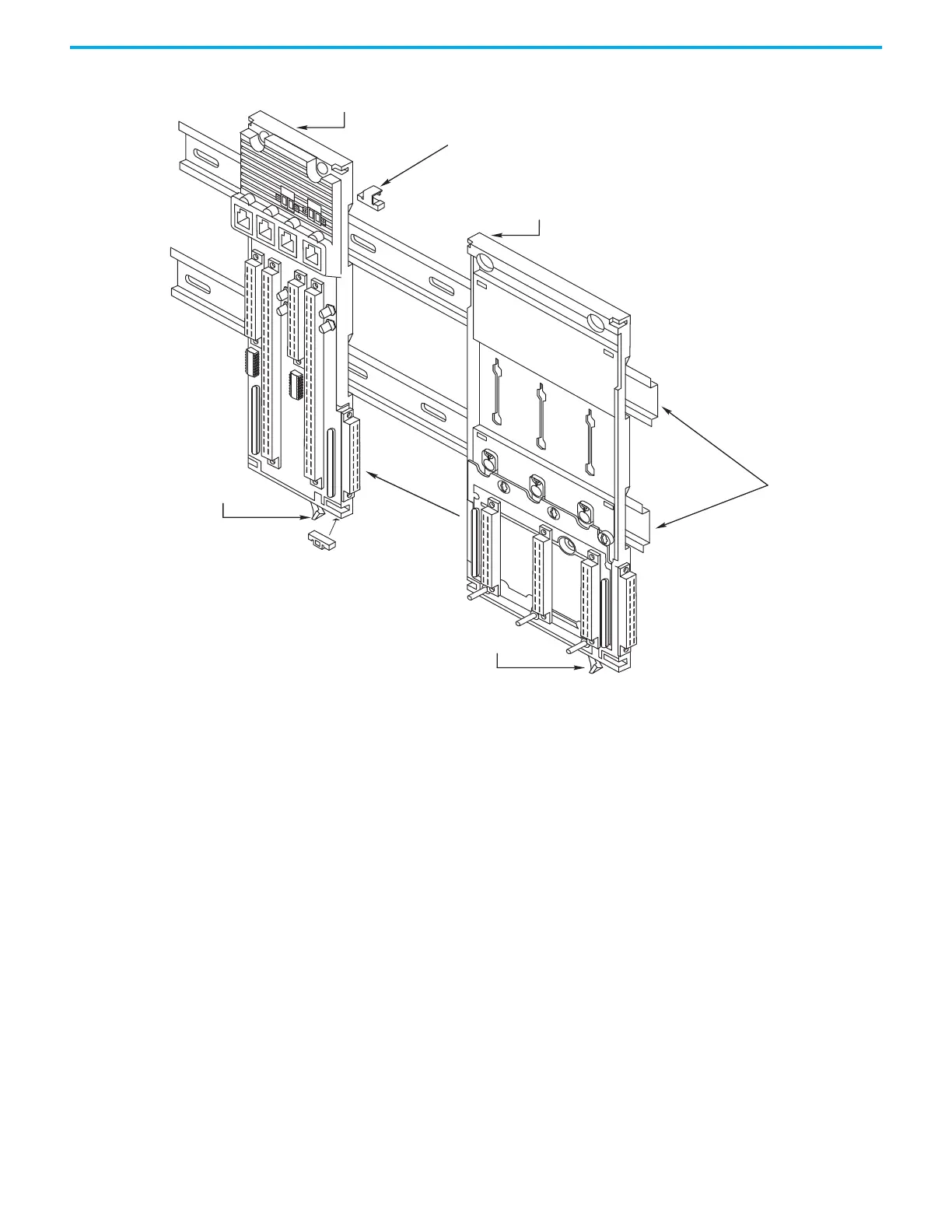

3. Secure the I/O base unit onto the DIN rails by sliding the bottom

retaining lever (below the base unit) as far to the left as it goes until it

latches in the locked position.

4. Insert the retaining clips into the top and the bottom slots to connect the

adapter base unit to the I/O base unit.

Adapter Base Unit

I/O Base Unit

Retaining Clip

DIN Rails

Retaining Lever

Mating

Connector

Retaining Lever

45247
