Rockwell Automation Publication 1715-UM001J-EN-P - December 2020 81

Chapter 2 Installation Instructions

the output termination assembly. They help protect all output circuits that are

associated with the particular termination assembly.

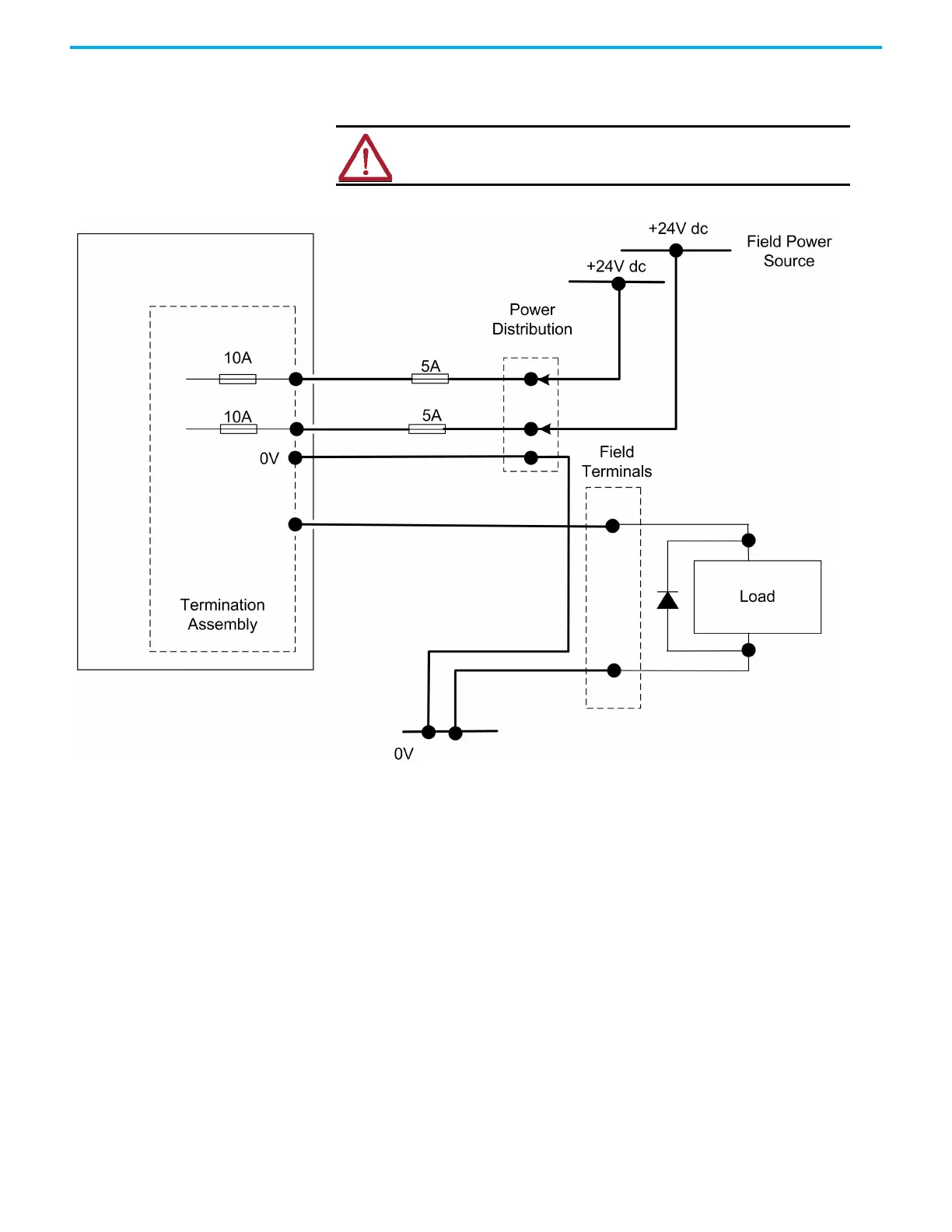

ATTENTION: For inductive loads, connect a diode at the actuator to

protect the adapter against back EMF.

46198
