Chapter 3
Connectors
Connectors on the Kinetix® 300 servo drives and on the Kinetix 5100 servo
drives are of different types in different locations. Make sure that your cables
are long enough for the differences.
Kinetix 300 Servo Drive
Connector Locations
The connectors of the Kinetix 300 servo drive are shown in Figure 10. Although
the physical sizes of the Kinetix 300 drives vary, the location of the connectors
and indicators is identical.

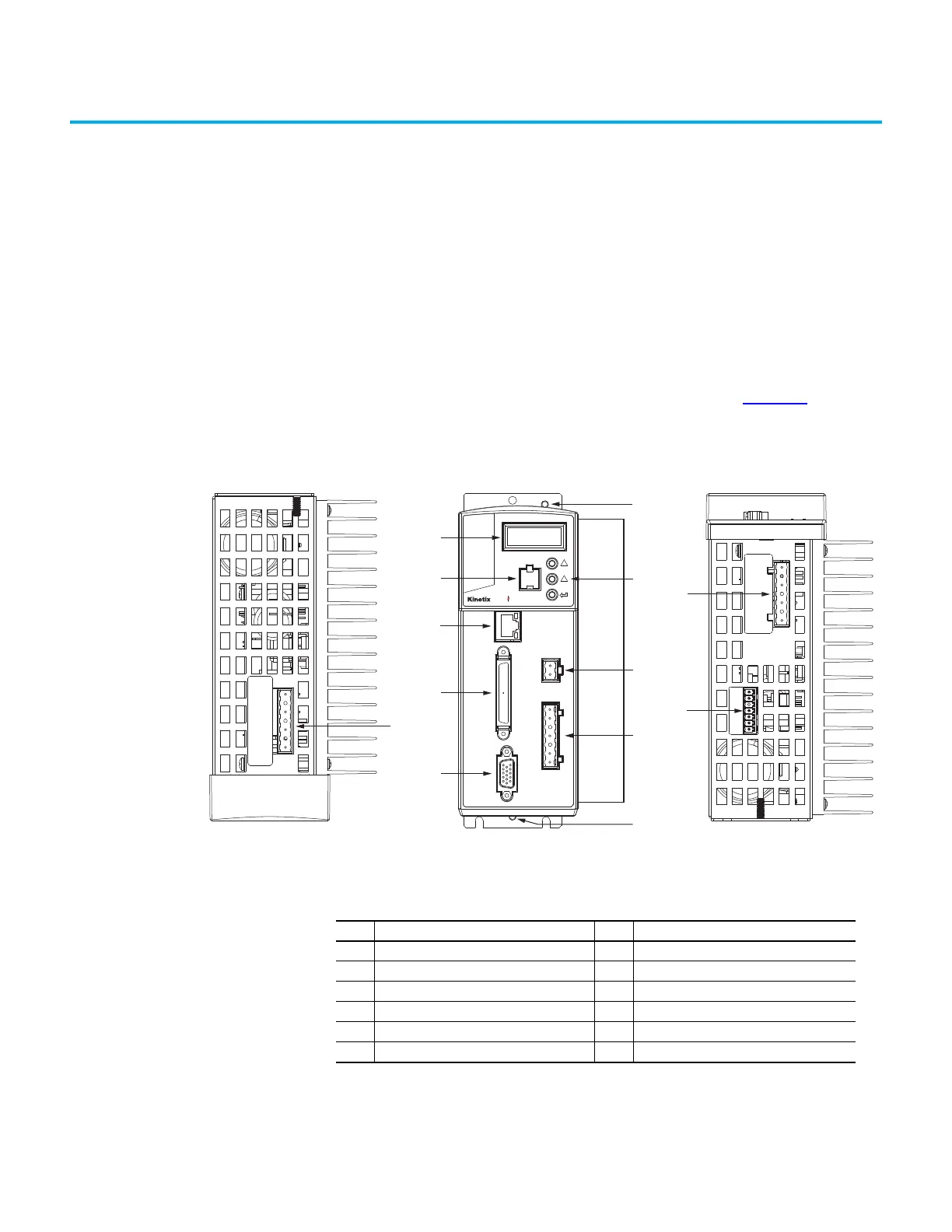

Figure 10 - Kinetix 300 Connector Locations
10
2
00
3
0 0
3
4
5
6
9
8
1
12
11
7
7
Kinetix 300 Drive, Top View
(2097-V33PR5 drive is shown)
Kinetix 300 Drive, Front View
(2097-V33PR5 drive is shown)
Kinetix 300 Drive, Bottom View
(2097-V33PR5 drive is shown)
Table 42 - Kinetix 300 Drive Connectors
Item Description Item Description
1 Mains (IPD) connector 7 Ground lug
2 Status and diagnostic display 8 Shunt resistor and DC bus (BC) connector
3 Memory module socket 9 Back-up power (BP) connector
4 Ethernet communication port (Port 1) 10 Display control push buttons (3)
5 I/O (IOD) connector 11 Motor power (MP) connector
6 Motor feedback (MF) connector 12 Safe Torque Off (STO) connector
