Chapter 3 Connectors
Motor Feedback The Table 46 compares the motor feedback connector pinouts for the
Kinetix 300 (motor feedback connector) and Kinetix 5100 servo drives (MFB
connector). Both the Kinetix 300 drive and Kinetix 5100 drive accept motor
feedback signals from Hiperface and Generic TTL incremental encoders. The
Kinetix 300 drive also supports 17-bit serial encoders. The Kinetix 5100 drive
supports both 17-bit serial encoders and 24-bit serial encoders.

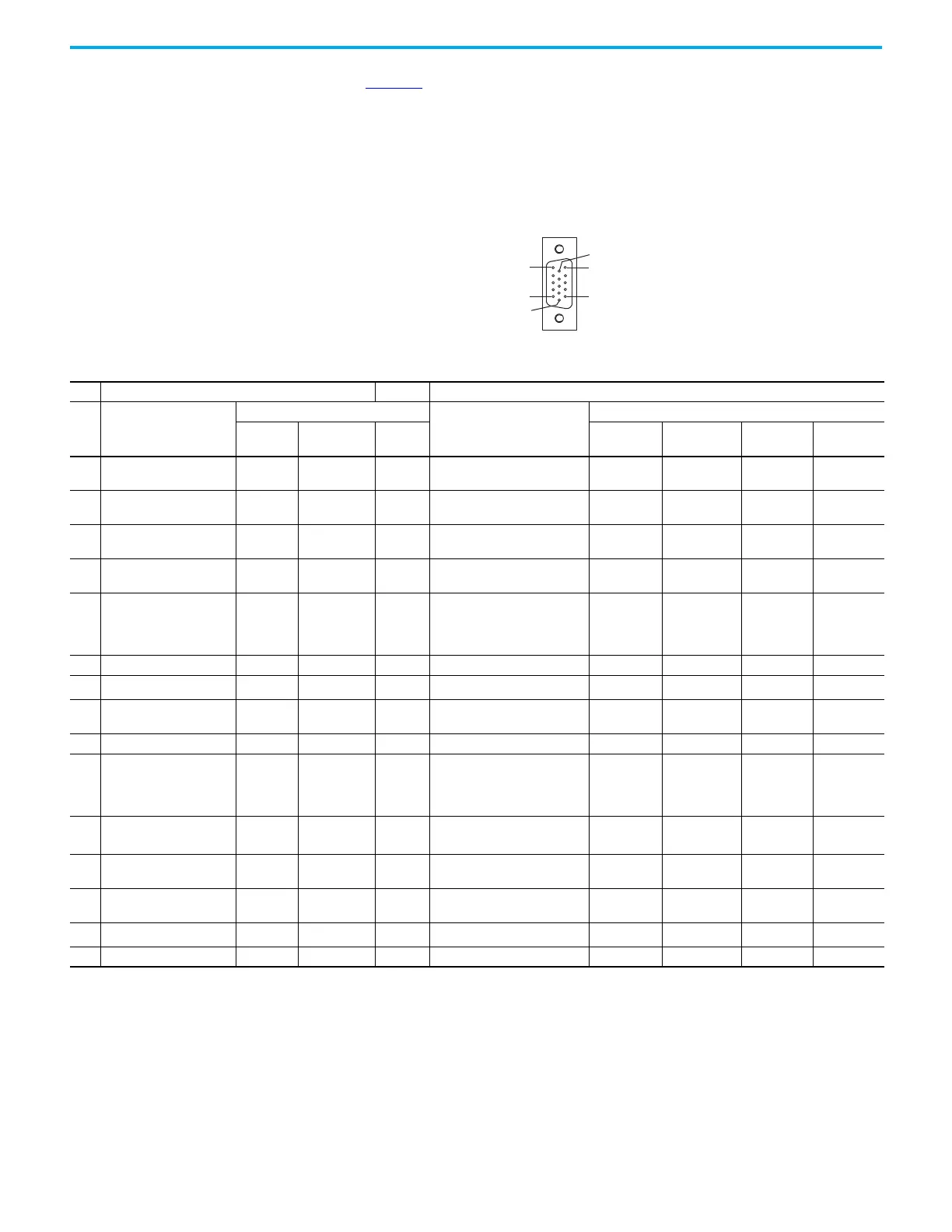

Figure 15 - 15 Pin Motor Feedback Connector Pin Assignment
Pin 15
Pin 11
Pin 6
Pin 1
Pin 5
Pin 10
Table 46 - Motor Feedback Connectors Assignment Comparison
Kinetix 300 Kinetix 5100
Pin Description
Signal
Description
Signal
Hiperface
Generic TTL
Incremental
17-bit
Serial
Hiperface
Generic TTL
Incremental
17-bit Serial 24-bit Serial
1
Sine differential input+
AM+ differential input+
SIN+ AM+ —
Sine Differential Input +
A Differential Input +
MTR_SIN+ MTR_AM+ — —
2
Sine differential input-
AM- differential input-
SIN- AM- —
Sine Differential Input -
A Differential Input -
MTR_SIN- MTR_AM- — —
3
Cosine differential input+
BM+ differential input+
COS+ BM+ —
Cosine Differential Input +
A Differential Input +
MTR_COS+ MTR_BM+ — —
4
Cosine differential input-
BM- differential input-
COS– BM– —
Cosine Differential Input -
A Differential Input -
MTR_COS- MTR_BM- — —
5
Data differential input+
Index pulse+
DATA+ Index pulse+ DATA+
Data Differential Input/Output +
Index Differential Input +
DATA+
IM+
MTR_DATA+
MTR_DATA+
(TLY-B)
MTR_SD+
(TL-B)
MTR_DATA+
6 Common ECOM ECOM ECOM Encoder Common ECOM MTR_ECOM MTR_ECOM MTR_ECOM
7
Encoder power (+9V)
(1)
EPWR9V — —
Encoder 9V Power Output
(1)
EPWR_9V MTR_EPWR9V — —
8
Single-ended 5V Hall effect
commutation
— S3 Hall Commutation S3 Input S3 — — —
9 Reserved — — — Reserved — — — —
10
Data differential input-
Index pulse-
DATA- IM- DATA-
Data Differential Input/Output -
Index Differential Input -
MTR_DATA- MTR_IM-
MTR_DATA–
(TLY-B)
MTR_SD–
(TL-B)
MTR_DATA-
11
Motor thermal switch
(normally closed)
(2)
TS TS —
Motor Thermostat
(2)
MTR_TS MTR_TS — —
12
Single-ended 5V Hall effect
commutation
— S1 Hall Commutation S1 Input — MTR_S1 — —
13
Single-ended 5V Hall effect
commutation
— S2 Hall Commutation S1 Input — MTR_S2 — —
14
Encoder power (+5V)
(1)
— EPWR_5V EPWR_5V
Encoder 5V Power Output
(1)
MTR_EPWR5V MTR_EPWR5V MTR_EPWR5V MTR_EPWR5V
15 Reserved — — — Reserved — — — —
(1) Determine which power supply your encoder requires and connect to that supply only. Do not make connections to both supplies.
(2) Not applicable unless motor has integrated thermal protection.
