Chapter 4
Dimensions, Cables, and Wiring
This section provides dimensions of the drives to help you determine the space
that is needed to install the drives.

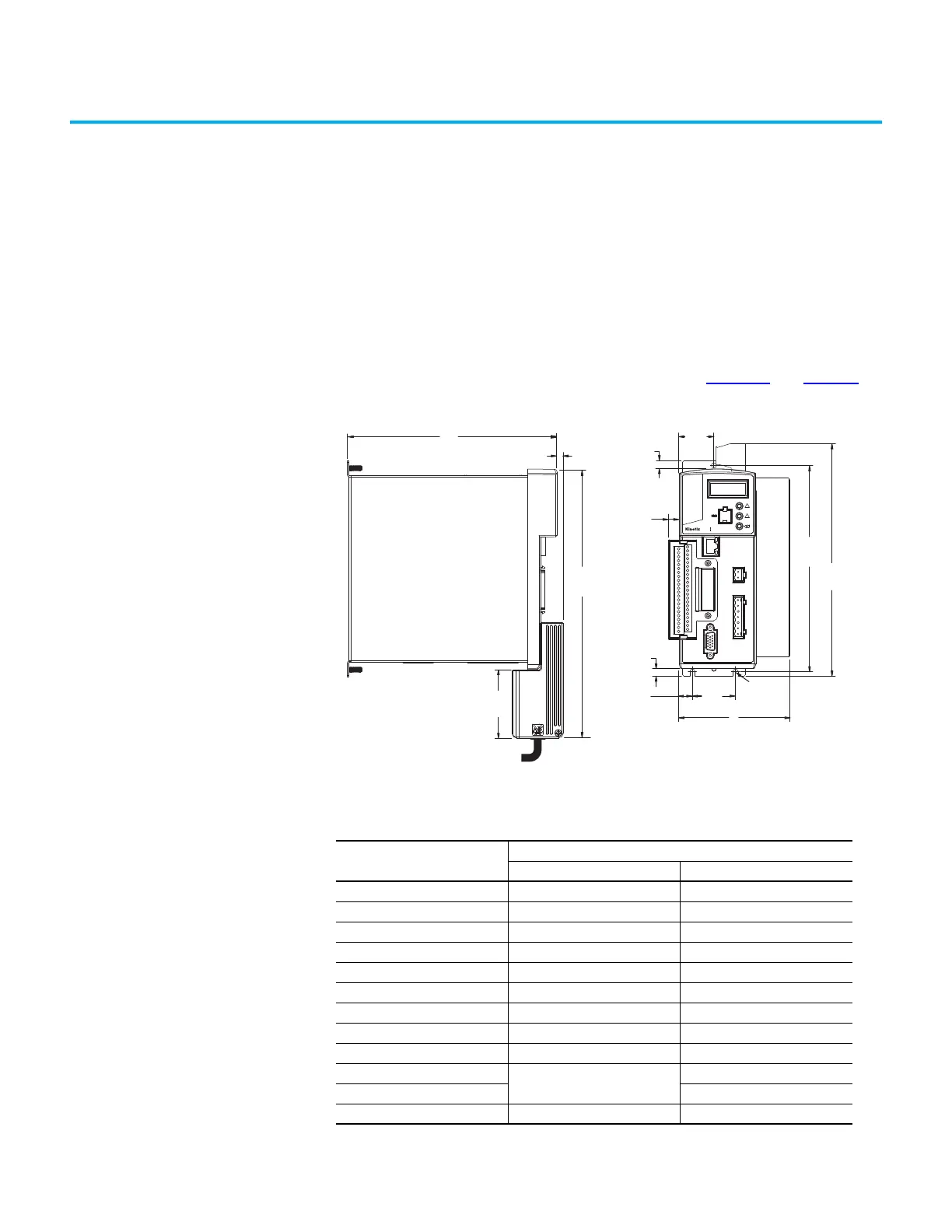

Dimension Drawings The dimensions for Kinetix® 300 drives are shown in Figure 18 and Table 19.
Figure 18 - Kinetix 300 Dimensions in mm (in.)
Table 50 - Kinetix 300 Dimensions
Cat. No.
Dimensions mm (in.)
AB
2097-V31PR0 185.1 (7.29) 68.0 (2.68)
2097-V31PR2 185.1 (7.29) 68.5 (2.70)
2097-V32PR0 229.6 (9.04) 68.0 (2.68)
2097-V32PR2 229.6 (9.04) 68.5 (2.70)
2097-V32PR4 229.6 (9.04) 86.8 (3.42)
2097-V33PR1 185.1 (7.29) 68.0 (2.68)
2097-V33PR3 185.1 (7.29) 68.5 (2.70)
2097-V33PR5 185.1 (7.29) 94.4 (3.72)
2097-V33PR6 229.6 (9.04) 68.0 (2.68)
2097-V34PR3
185.1 (7.29)
68.5 (2.70)
2097-V34PR5 94.4 (3.72)
2097-V34PR6 229.6 (9.04) 68.0 (2.68)
11.8
(0.46)
6.6
(0.26)
7.1
(0.28)
B
38.1
(1.5)
182
(7.18)
190
(7.50)
30.8
(1.21)
Ø 4.57
(0.18) 3x
300
A
238
(9.37)
9.7
(0.38)
5.0
(0.19)
61.0
(2.40)
2090-K2CK-D15M
Low-Profile Connector Kit for
Kinetix 2090 (flying lead)
Feedback Cable
Additional clearance below the connector kit is necessary to provide
the recommended cable bend radius.
2097-TB1
I/O Terminal
Expansion
Block
