Rockwell Automation Allen-Bradley Kinetix 300

Rockwell Automation Publication 2198-RM004C-EN-P - March 2022 33
Chapter 2 Replacement Considerations

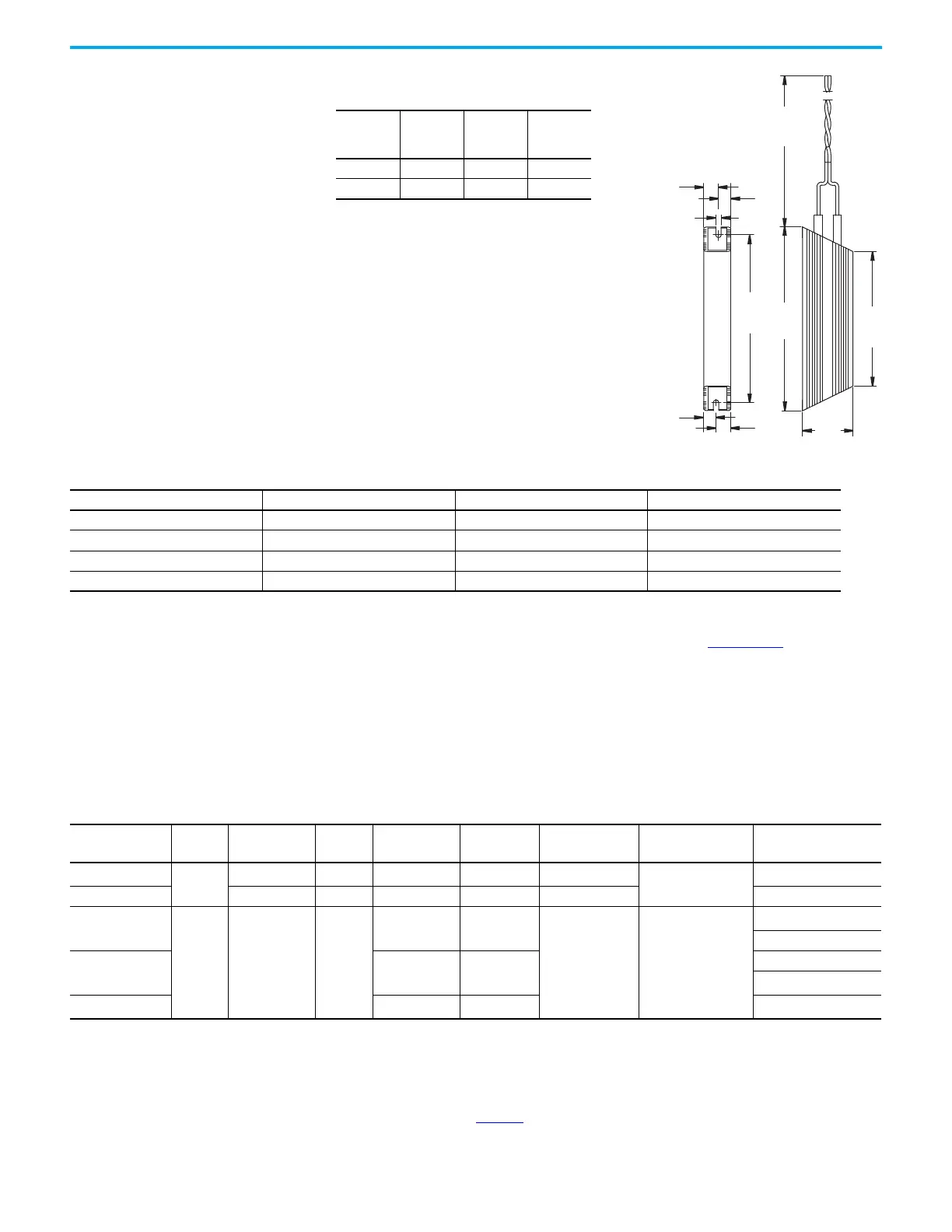

Figure 9 - Shunt Resistors without Enclosure
Dimensions
For more information on 2198-Rx shunt resistor, see the Kinetix 5700 Passive
Shunt Modules Installation Instructions, publication 2198-IN011
.
Optional Drive Accessories - AC Line Filters
An AC line filter is a key component in meeting CE requirements. This section
describes the specifications for the line filters used with each drive.
Shunt
Resistor
Cat. No.
L1 L2 L3
2097-R6 210 (8.3) 197 (7.7) 170(6.7)
2097-R7 150 (5.9) 137 (5.4) 110 (4.3)
10.0
(0.39
L2
12.0
(0.47
4.3
(0.17)
L3
L1
41.0
(1.6)
500
(19.68)
10.0
(0.39
12.0
(0.47
Table 38 - Shunt Resistor Power Specifications
Cat. No. Resistance Ω Continuous Power W Weight, approx kg (lb)
2198-R004 33 400 1.8 (4.0)
2198-R031 33 3100 16.8 (37)
2097-R6 75 150 0.3 (0.7)
2097-R7 150 80 0.2 (0.4)
Table 39 - AC Line Filter Specifications
AC Line Filter
Cat. No.
Mount
Voltage
50/60 Hz
Phase
Current A @
40 °C (104 °F)
Power Loss
W
Leakage Current
mA
Weight, approx
kg (lb)
Kinetix 300/350
(1)
Drive Cat. No.
2097-F1
Side
240V AC 1 24.0 5.2 9.0
0.6 (0.13)
2097-V33PR6-xx
(2)
2097-F2 480V AC 3 10.0 2.8 1.0 2097-V34PR6-xx
2097-F4
(3)
Rear 240/480V AC 3
4.40 1.2
1.0 0.8 (0.18)
2097-V33PR1-xx
(4)
2097-V34PR3-xx
2097-F5
(3)
6.90 1.3
2097-V34PR5-xx
2097-V33PR3-xx
(5)
2097-F6
(3)
15.0 4.1
2097-V33PR5-xx
(6)
(1) Use 2090-UXLF-110 (single-phase) line filter for 2097-V31PR0-xx drive operation. Use 2090-XXLF-TC116 (single-phase) line filter for 2097-V31PR2-xx drive operation.
(2) Use 2097-F1 (single-phase) line filter for 2097-V33PR6-xx (single-phase) drive operation. Use the 2090-XXLF-TC316 (three-phase) line filter for 2097-V33PR6-xx (three-phase) drive
operation.
(3) This filter is rated for multiple voltage/phase line conditions.
(4) Use 2090-UXLF-106 (single-phase) line filter for 2097-V33PR1-xx (single-phase) drive operation.
(5) Use 2090-UXLF-110 (single-phase) line filter for 2097-V33PR3-xx (single-phase) drive operation.
(6) Use 2090-UXLF-123 (single-phase) line filter for 2097-V33PR5-xx (single-phase) drive operation.
Refer to the Kinetix Rotary and Linear Motion Cable Accessories Specifications, publication KNX-TD004
for AC line filter specifications not listed here.
