Chapter 6 Application Conversion
KNX5100C software also allows a way to monitor the status of the incoming
Analog Command or other parameters (for example, motor speed, DC bus
voltage and others) for an online drive in the Monitoring Output tab, which is
shown in Figure 38
.

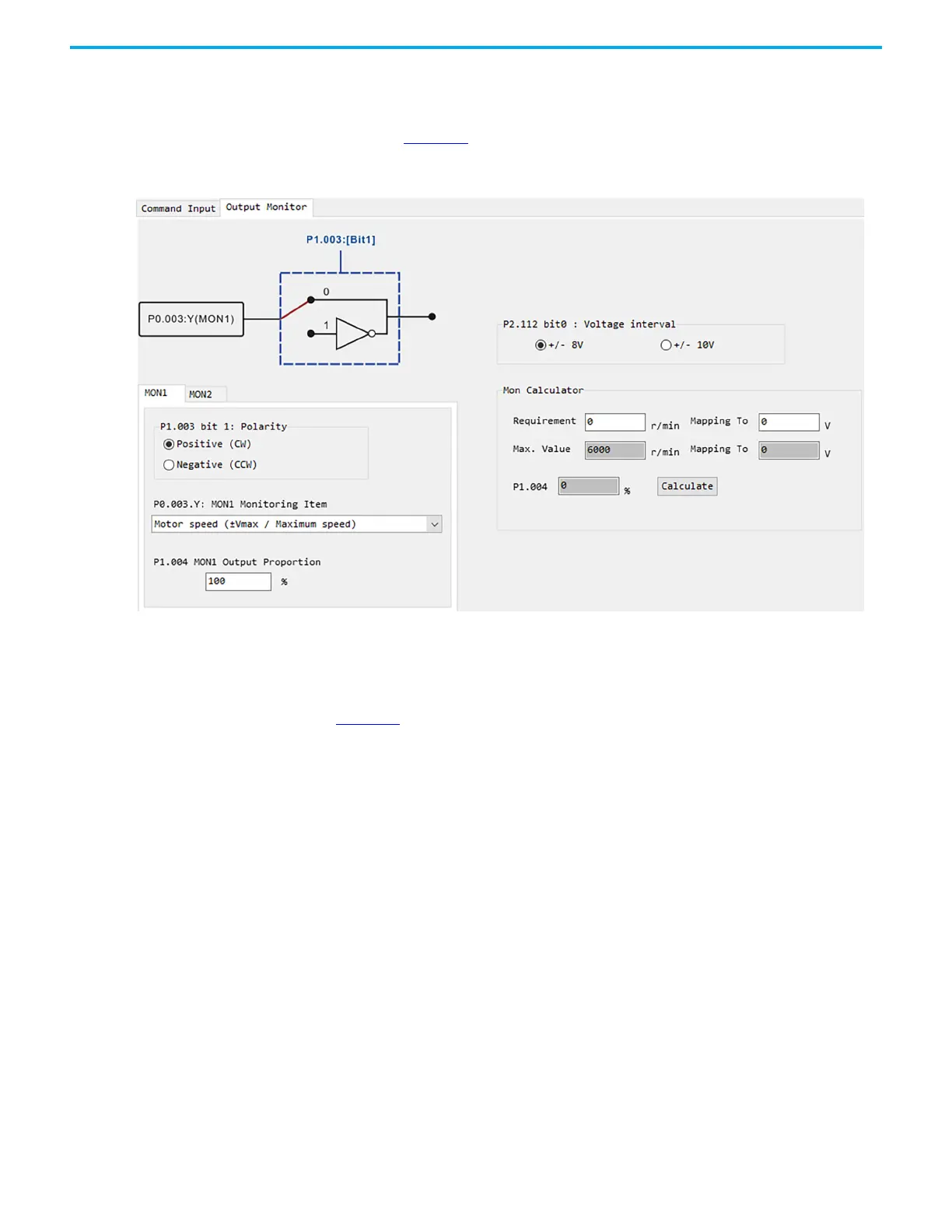

Figure 38 - Monitoring Output Window of Analog I/O in KNX5100C Software
Scenario 2: Indexing to Position Register (PR) Mode
Figure 39 is an example of the Properties window for Indexing in MotionView
for the Kinetix 300 servo drive.
