Chapter 6 Application Conversion

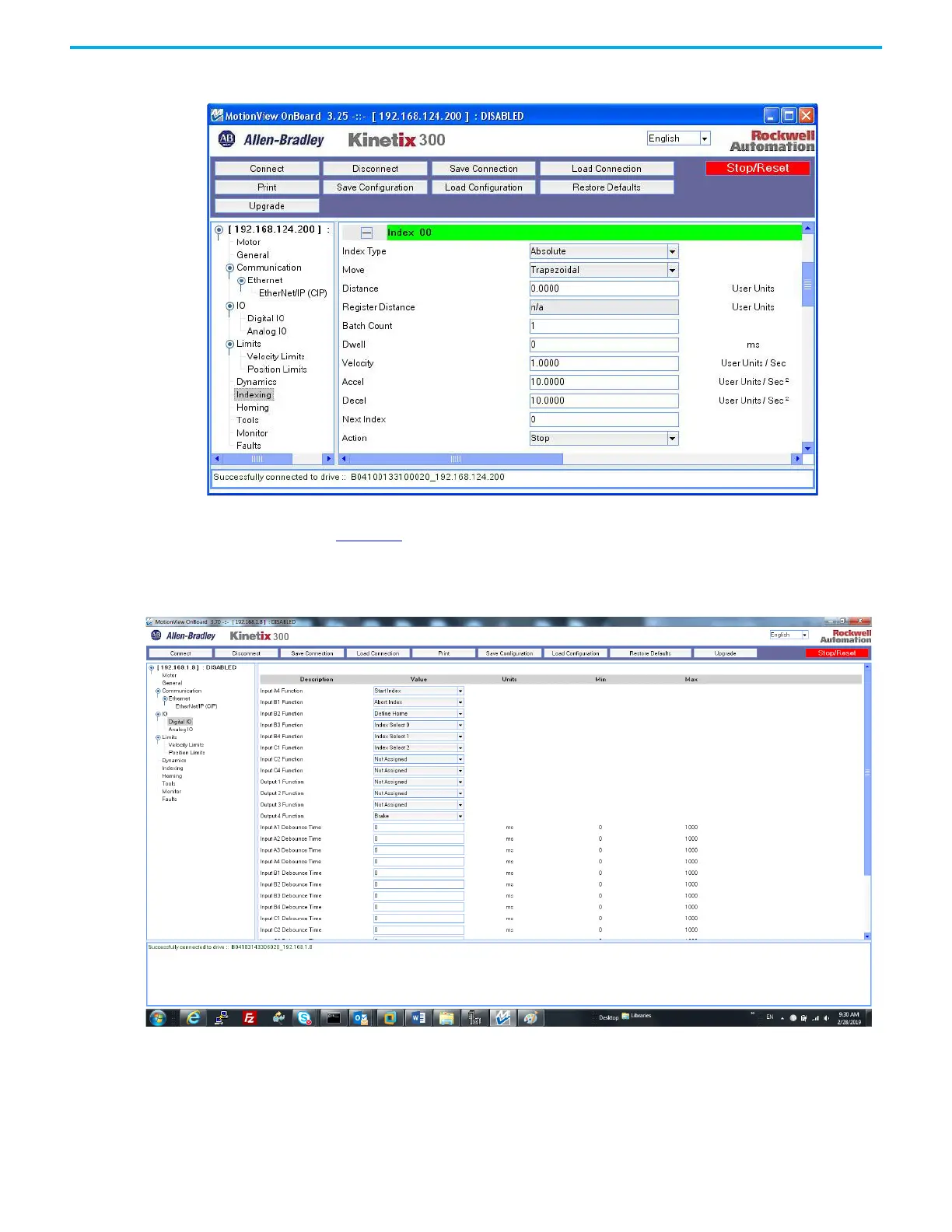

Figure 39 - Indexing Window in MotionView
Figure 40 shows the Properties window for Digital Input that is used for
Indexing in MotionView for the Kinetix 300 drive.
Figure 40 - Digital I/O Window in MotionView
In MotionView software with Kinetix 300 drives, you can configure up to 32
indexes.
