32 Rockwell Automation Publication 2198-RM004C-EN-P - March 2022
Chapter 2 Replacement Considerations

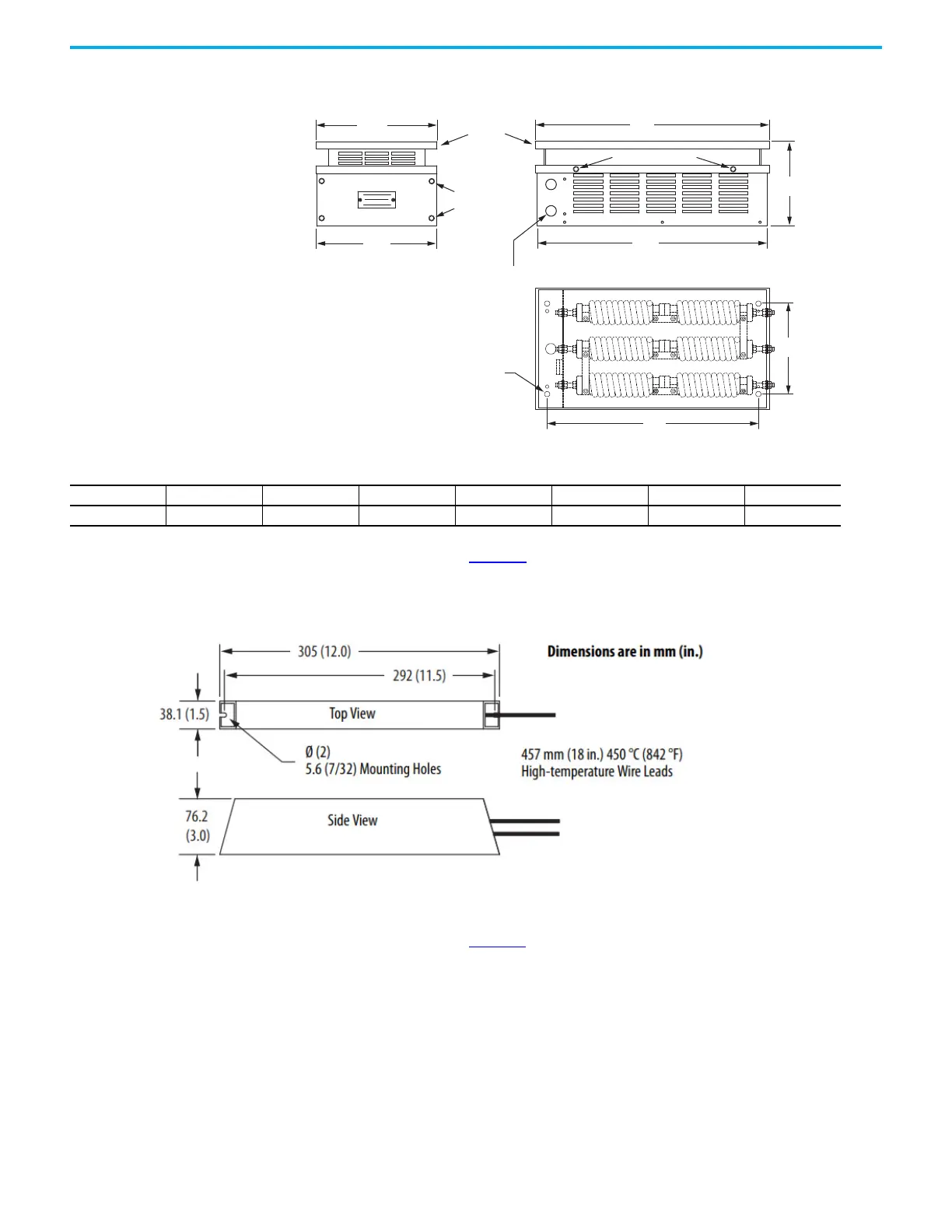

Figure 7 - Product Dimensions: Catalog Number 2198-R031
The dimensions in Figure 8 apply to catalog number 2198-R004 (unit without
an enclosure).
Figure 8 - Product Dimensions: Catalog Number 2198-R004
The dimensions in Figure 9 apply to catalog numbers 2097-R6 and 2097-R7
(shunt resistors without an enclosure).
Removable
Cover
5/16 in.
Hex Screws
Φ (5) Conduit Knockout
12.7 (0.5)
Φ (4)
11.1 (7/16) Mounting Holes
Top View (cover removed)
5/16 in. Hex Screws
Front ViewLeft Side View
Table 37 - 2198-R031 Shunt Resistor Dimensions
Cat. No. A B C D E F G
2198-R031 635 (25.0) 343 (13.5) 683 (26.88) 673 (26.5) 178 (7.0) 406 (16.0) 403 (15.88)
