Chapter 4 System Architecture
Typical Communication
Configurations
Natively, the Kinetix 350 drives only support Ethernet star topology. Some
configurations have been modified to use an ETAP or similar device to create a
ring or linear topology. The Kinetix 5300 drives natively support Ethernet
topologies which include linear, ring, and star by using ControlLogix or
CompactLogix controllers.

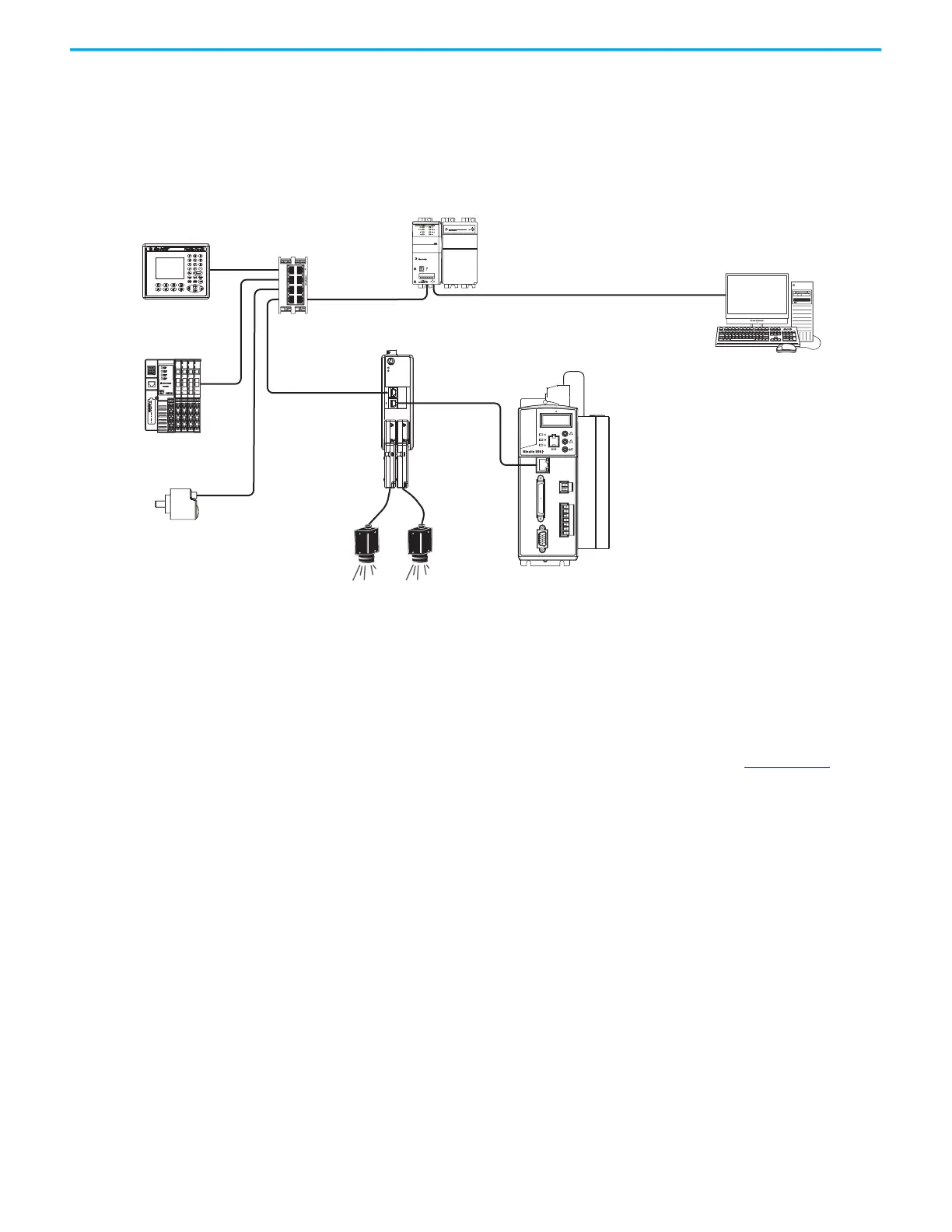

Figure 24 - Typical Kinetix 350 Communication Configuration
The Kinetix 5300 examples feature the CompactLogix 5380 programmable
automation controllers (Bulletin 5069) that are part of the Logix 5000 family of
controllers. The applications range from standalone systems to more complex
systems with devices that are connected to the controller via an EtherNet/IP
network.
Refer to CompactLogix 5380, Compact GuardLogix 5380, and CompactLogix
5480 Controller Specifications Technical Data, publication 5069-TD002
, for
more information on CompactLogix 5380 controllers.
3
5
7
1
R
W
P
4
6
8
2
MOD
NET
OUTPUT-A OUTPUT-B
2097-V3xxxx-LM
Kinetix 350 Drive
1783-US08T
Stratix® 2000 Switch
CompactLogix Controller System
1769-L33ERM Shown
1585J-M8CBJM-x (shielded) or
11585J-M8UBJM-x (high-flex shielded)
Ethernet Cable
RSLogix 5000® Software
(version 20.00.00 or later) or the
Studio 5000 Logix Designer Application
PanelView™ Plus Compact
Display Terminal
1734-AENT POINT I/O™
EtherNet/IP Adapter
2198-ABQE
Encoder Output Module
Line Scan
Cameras
842E-CM Integrated Motion
Encoder on EtherNet/IP
