Rockwell Automation Publication 2198-RM005A-EN-P - October 2020 33
Chapter 3
Dimensions, Cables, and Wiring
This chapter provides dimensions of the drives to help you determine the space
that is needed to install the drives.
Dimension Drawings
The dimensions for Kinetix® 350 drives are shown in Figure 11 and Table 32.

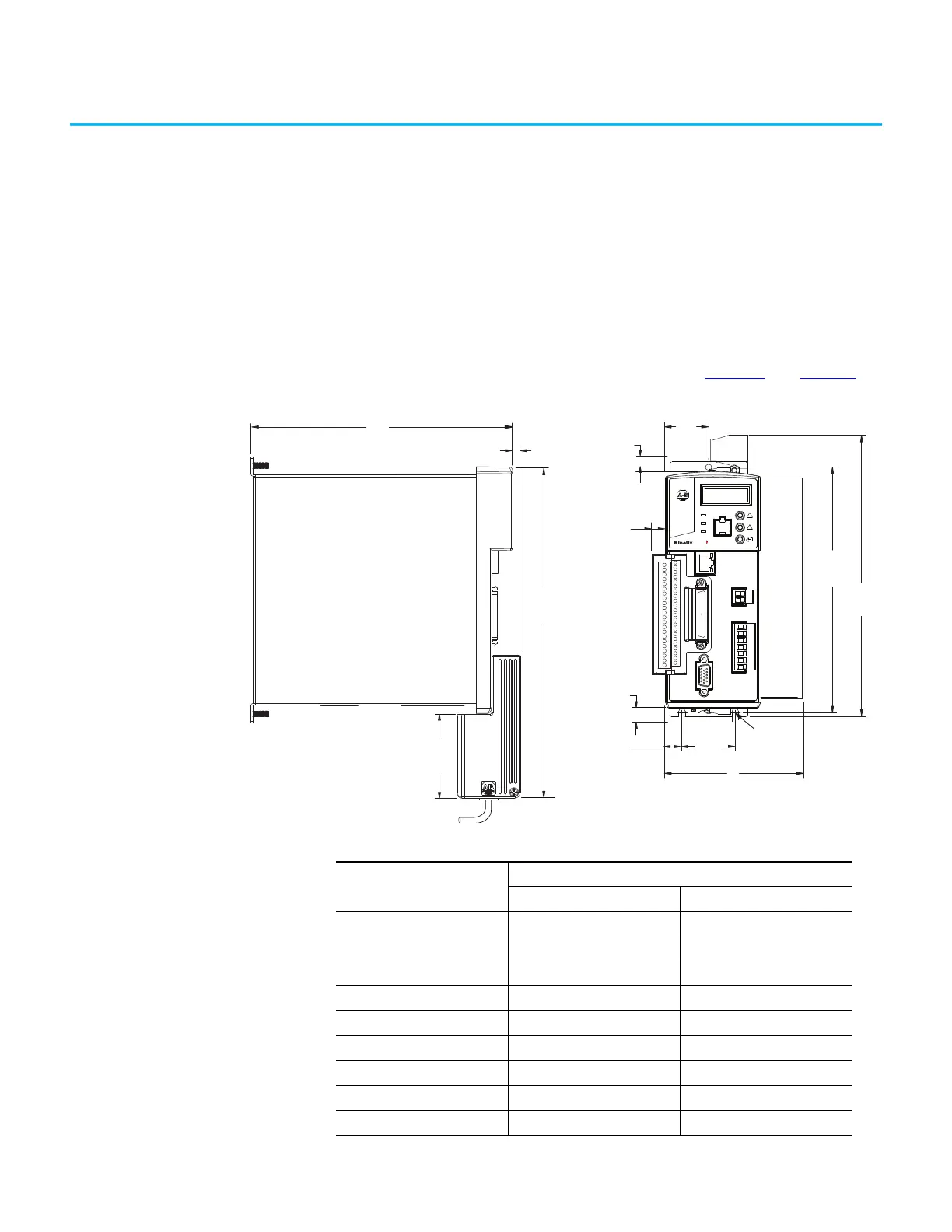

Figure 11 - Kinetix 350 Dimensions in mm (in.)
11.8
(0.46)
6.6
(0.26)
7.1
(0.28)
B
38.1
(1.5)
182
(7.18)
190
(7.50)
30.8
(1.21)
Ø 4.57
(0.18) 3x
A
238
(9.37)
9.7
(0.38)
5.0
(0.19)
0
3
5 0
61.0
(2.40)
2090-K2CK-D15M
Low-Profile Connector Kit for
Bulletin 2090 (flying lead)
Feedback Cable
Additional clearance below the connector kit is necessary to provide
the recommended cable bend radius.
2097-TB1
I/O Terminal
Expansion
Block
Table 32 - Kinetix 350 Dimensions
Cat. No.
Dimensions mm (in.)
AB
2097-V31PR0-LM 185 (7.29) 68.0 (2.68)
2097-V31PR2-LM 185 (7.29) 69.0 (2.70)
2097-V32PR0-LM 230 (9.04) 68.0 (2.68)
2097-V32PR2-LM 230 (9.04) 69.0 (2.70)
2097-V32PR4-LM 230 (9.04) 87.0 (3.42)
2097-V33PR1-LM 185 (7.29) 68.0 (2.68)
2097-V33PR3-LM 185 (7.29) 69.0 (2.70)
2097-V33PR5-LM 185 (7.29) 94.0 (3.72)
2097-V33PR6-LM 230 (9.04) 68.0 (2.68)
